Zsound 12 inch dj stage neodymium full range woofer speaker

Speakers / Passive Speaker

Zsound U12 is a medium scale two-way passive system, utilizing the latest Phase control technology,the enclosure features a 12" LF driver and a 1.75"(44mm voice coil) HF compression driver mounted on a constant directivity horn, with the Phase correction technology to eliminate distortion between LF units and keep smooth frequency and Phase response.
Feature:
Elastic bass
Long stroke rubber edge LF driver
Rotatable 80*50° directivity horn
Applications:
Bar
KTV
Near-field sound

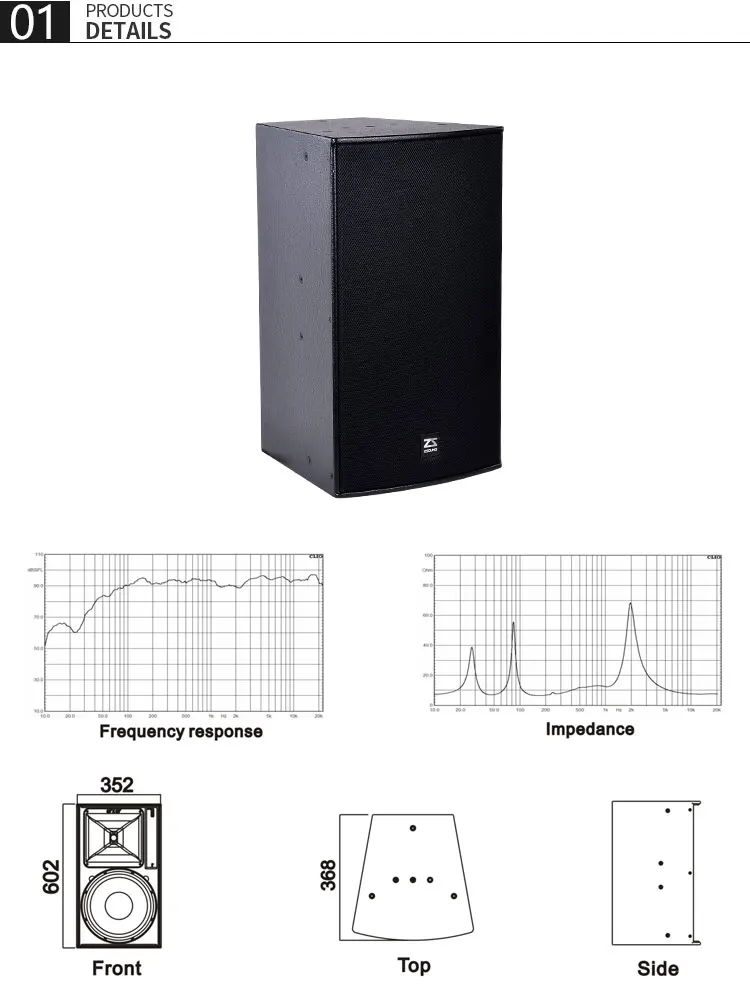

Zsound 12 inch dj stage neodymium full range woofer speaker - ANKUX.COM

TECHNICAL SPECIFICATION
Frequency Response: 55Hz-18KHz(±3dB) 40Hz-20KHz(-10dB)
Nominal Coverage: 80°(H)50°(V)Constant directivity
Sensitivity (@1w/1m): 96dB SPL
Power Rating (AES): 400W (continuous) 1600W (peak) 800W (recommended amplifier power)
Nominal Impedance: 8Ohm
Maximum SPL: 122dB (continuous)128 dB(peak)
Drivers: LF 1*10"(75mm voice coil)woofer;
HF 1*1.75"mm voice coil compression driver
PHYSICAL DATA
Dimension (H*W*D): 602*359*363 mm
Weights: 22kg
Connectors: 2*NL4MP Neutrik Speakon connectors
Speaker Cables: 1+1-
Materials: 18mm multi-plywood
Finish: Blackwater paint
Grille: Black epoxy mesh grille with acoustically reticulated foam
