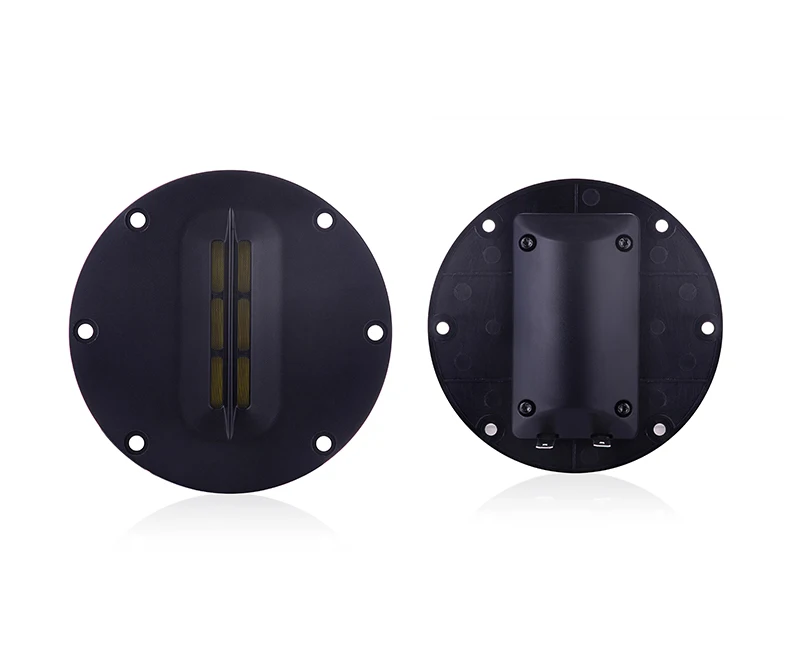

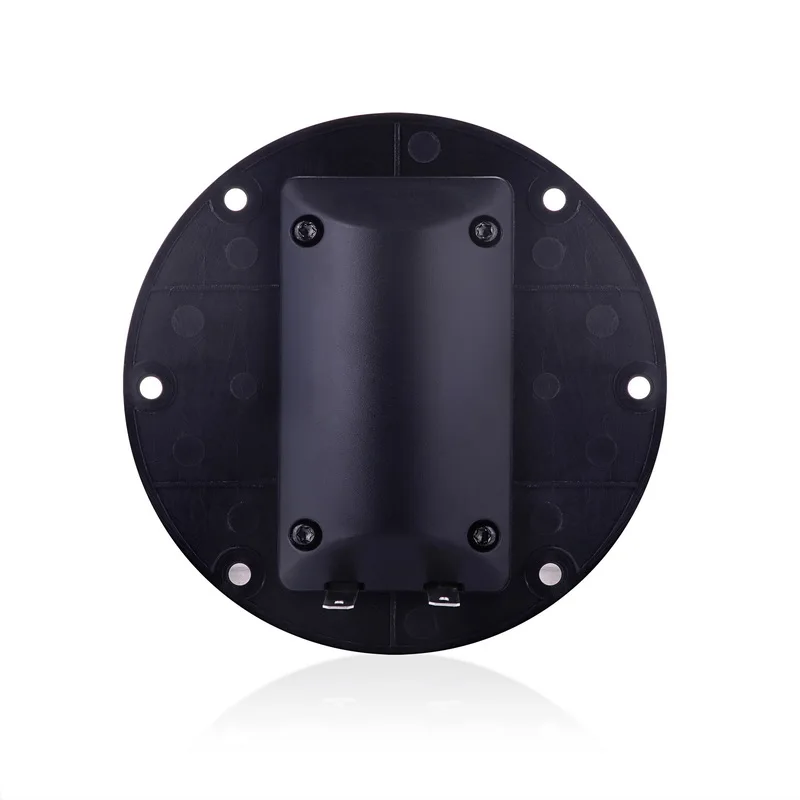

Planar AMT Ribbon tweeter
Some loudspeaker designers use a planar-magnetic tweeter, sometimes called a quasi-ribbon. Planar magnetic tweeters are generally less expensive than true ribbon tweeters, but are not precisely equivalent as a metal foil ribbon is lighter than the diaphragm in a planar magnetic tweeter and the magnetic structures are different. Usually a thin piece of PET film or plastic with a voice coil wire running numerous times vertically on the material is used. The magnet structure is less expensive than for ribbon tweeters

Rated Impedance 8Ω Front Panel Aluminum
Sensitivity 94dB Finish of Panel Powder coat
Frequency Range 1500k~40k Hz Diaphram KAPTON
RMS Power 15W Conductive Line Alumium foil
Max Power 30W Magnet Neodymium
Lowest crossover 3.5k Hz(recommend) Terminal (mm) 5.5*0.5(+,-)
FEATURES
- ABS Plastic faceplate provides secure, stable mounting
- Low- mass pleated Kapton diaphragm
- Very fast transition, high power handling with Strong Neodymium
- High detailed and dynamic output, very low distortion
- Linear impedance
- Clear & Nature high frequency
PARAMETER
Impedance
8ohms
Power Handling
15watts(RMS),30watts( max)
Sensitivity
93dB@1W/1m
Frequency Response
1,500 - 33,000Hz
Diaphragm
Kapton&Alumium foil
Magnet System
Neodymium
Dimensions
Overall Outside Diameter4" x 0.76"
Net. Weight
115gram
Recommend Crossover Frequency
2,300Hz
Detailed Images






Certifications
