New design pa speaker club pro stereo system speaker

VCL line array is a dual 12" trip-amped three points suspension system. can be the presettable angle in the air when working with palm hoister underhanging.
And this speaker uses neodymium drivers. Lightweight, MF&HF parts are coaxial structure to optimize the image. Rubber edge LF driver,
1) 2*12" rubber edge woofer,
1* high sensitivity 10" MF driver
2x75mm (voice coil) neodymium drivers.
2) The speaker is finished with black polyurea coatings, more resistant to climate.3) VCL adjustable angle of the cabinet is 0-7.5°,1° per step,
4) VCL rigging hardware is made of high strength steel. It is safe enough to hand 16 enclosures together, as the safety factor reaches up to 7:1.
5) The enclosure is constructed by 18mm, 24mm birch plywood,
6) 4 recessed handle cups are mounted on both sides of the enclosure for easy lifting and carrying. A rear panel connector plate carries 2 Neutrik Speakon NL4MP connectors for loop in and loop out connections to the additional enclosure. Applications:
Touring performance
Stadium
Theatre
Feature:
Large-scale,the amp,three-way line array system
Presettable angles
Neodymium high-sensitivity driver, maximum headroom
rubber edge LF driver, extend low frequency

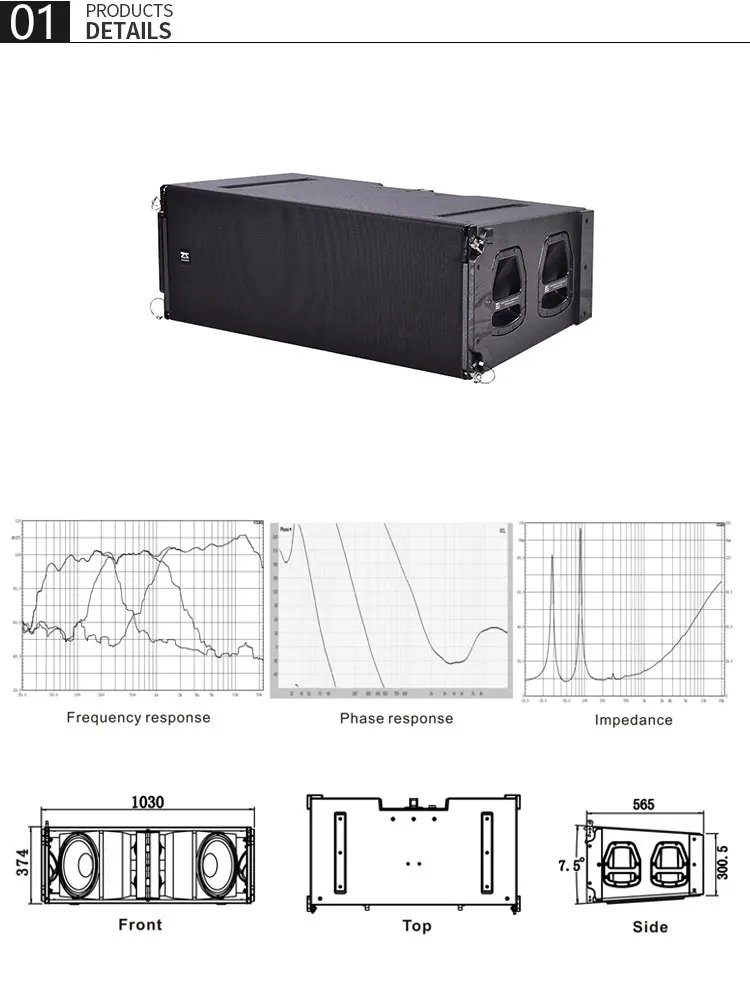

TECHNICAL SPECIFICATION
Frequency Response: 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB)
Nominal Coverage: 90°(H)7.5°(V)
Sensitivity (@1w/1m): HF:113dB SPL MF:105 dB SPL LF:99 dB SPL
Power Rating (AES): HF/MF/LF:160W/350W/900W
Nominal Impedance: HF/MF/LF:16/16/16Ohm
Maximum SPL: HF135/141 dB MF:130/136 LF;128/134 dB
Drivers: LF 2*12"(75mm Voice coil)neodymium woofer;
MF 1*10"(65mm voice coil)neodymium mid-range;
LF 2*3" neodymium compression driver
PHYSICAL DATA
Dimension (H*W*D): 374*1030*565mm
Weights: 60kg
Connectors: 2*WP7 or NL8 connectors
Speaker Cables: 1-2+...LF 3-4+...MF 5-6+...HF
Materials: 18mm,24mm birch multi-plywood
Finish: Black polyurea coatings
Grille: Black epoxy mesh grille with acoustically reticulated cloth
Rigging: 0,1 ,2,3,4,5,6,7.5 degree adjustable
SS2 sub-woofer utilize two brand-special and long stroke woofers, its voice coil, and magnetic circuits are double of normal sub-woofers, its 1500W high power of each driver. There is no airflow noise which may occur in ordinary ones when working with ultra-high power.
SS2 is a vented enclosure, this design has excellent enhanced the vented tube"s output efficiency, increased the output of LF, and also decreased the non-linear distortion; And it effectively reduces temperature under high power and eases driver"s power compression. The unit resonance frequency is low to 26HZ with 30HZ enclosure tuning frequency which makes thick and elastic sound.
Feature:1500W (AES) LF driver
Thick and elastic hearing
Low frequency low to 28Hz
Mounted wear-resisting Nylon bar
Applications:
Touring performance
Stadium
Theatre
TECHNICAL SPECIFICATION
FREQUENCY RESPONSE: 28 Hz ~ 180Hz (±3dB ), 23 Hz ~ 250Hz (-10dB )
NOMINAL COVERAGE (-6dB): Omnidirectional
SENSITIVITY(@1w/1m): 101 dB SPL
POWER RATING (AES): 3000W
NOMINAL IMPEDANCE: 4 Ohm
MAXIMUM SPL: 136 dB (continuous) 142 dB (peak)
DRIVERS: LF 2x18 waterproof paper cone driver
PHYSICAL DATA
DIMENSIONS(H x W x D): 575 x 1240 x 680(mm)
WEIGHT: 90 (kg)
CONNECTORS: 2xWP4 connectors
SPEAKER CABLES: 1-2+
MATERIALS: 24mm,30mm birch plywood
FINISH: Blackwater paint
GRILLE: Black epoxy mesh grille with acoustically reticulated cloth

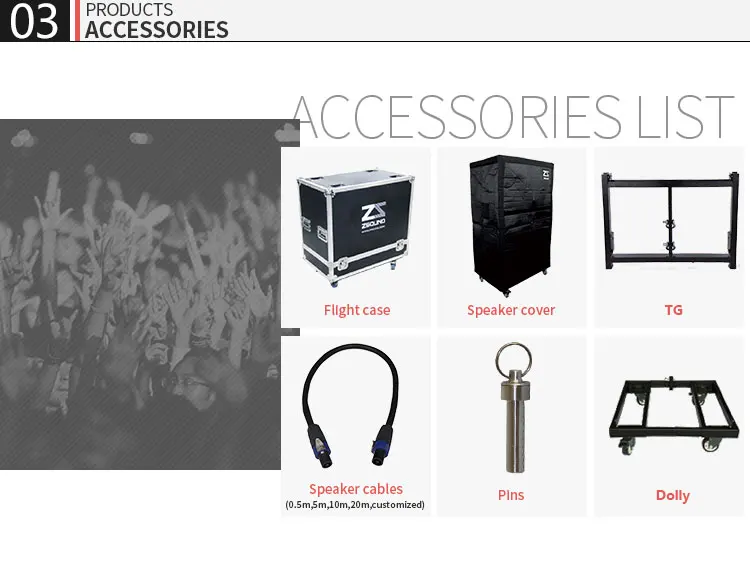

Accessories
