LS77W-15-R4 Full Range 3inch Loudspeaker Magnet 40mm 91db 8w 4ohm 5.66V

Speakers / Speaker for Computer

Specification
Attribute
Value
1.1 Rate power
8W
1.2 Max power
10W
1.3 Sensitivity
91±3dB(AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz)
1.4 Impedance
4Ω±15%
1.5 Frequency
Fo~~20KHZ
1.6Resonance frequency
180±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ40*19*8mm
1.9 Weight
100g±8%
2.0 Size
77*77*32.5Hmm
2.1voice coil & Material
Φ13.28mm KSV+Cu
2.2 Cone
Paper cone with foam edge
2.3 Rate voltage
5.66v
Product
LS77W-15-R4 Full Range 3inch Loudspeaker Magnet 40mm 91db 8w 4ohm 5.66V - ANKUX.COM

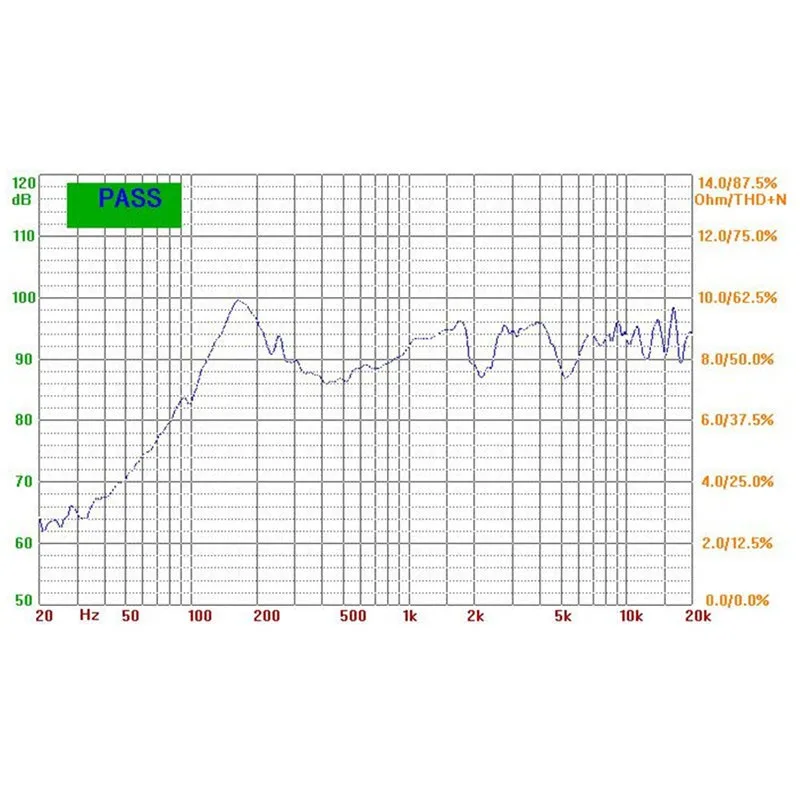

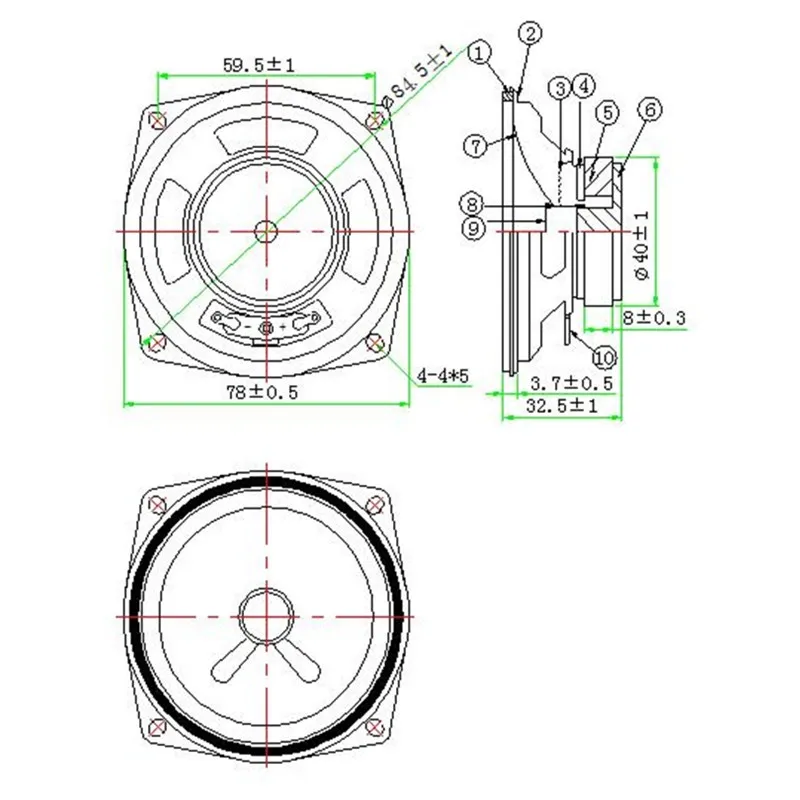

Dimension/DB picture LS77W-15-R4 Full Range 3inch Loudspeaker Magnet 40mm 91db 8w 4ohm 5.66V - ANKUX.COM

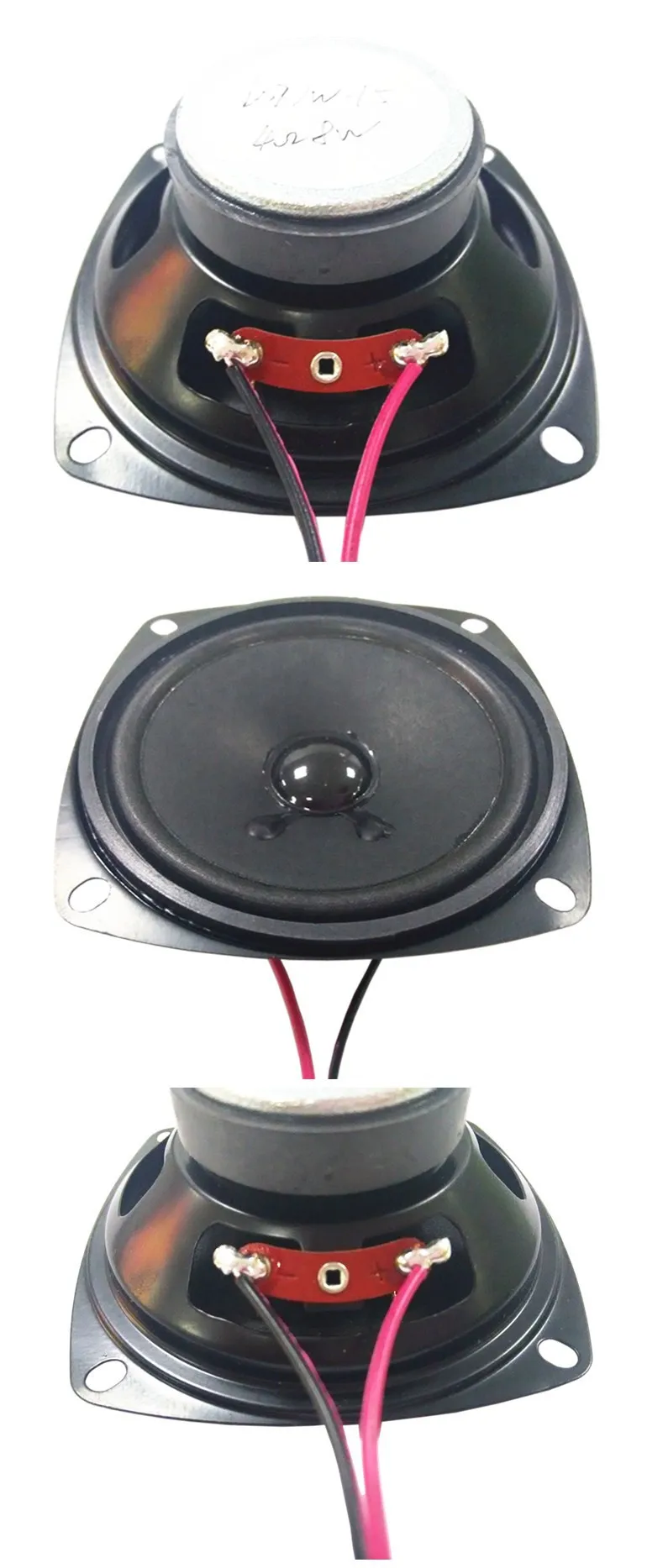

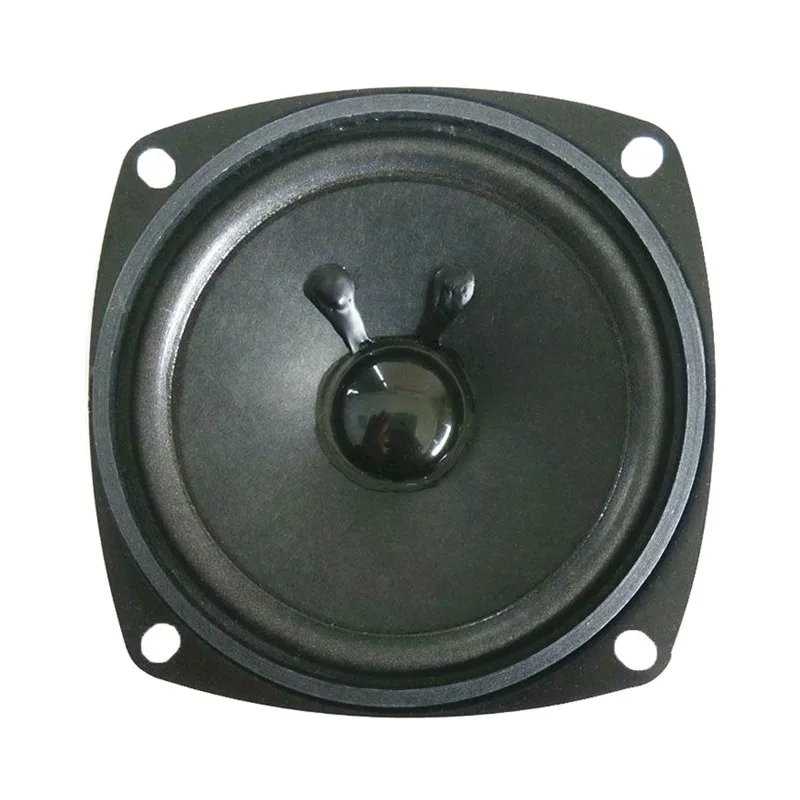

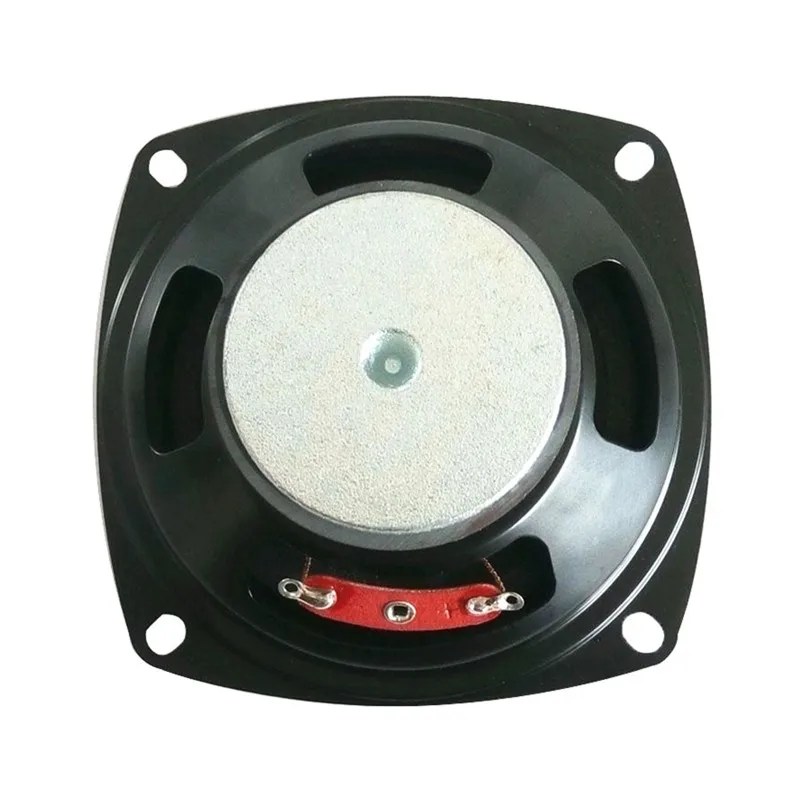

Detailed Images of LS77W-15 3inch full range speaker.
LS77W-15-R4 Full Range 3inch Loudspeaker Magnet 40mm 91db 8w 4ohm 5.66V - ANKUX.COM

Factory

Packing/Component LS77W-15-R4 Full Range 3inch Loudspeaker Magnet 40mm 91db 8w 4ohm 5.66V - ANKUX.COM

Activity/Certificate LS77W-15-R4 Full Range 3inch Loudspeaker Magnet 40mm 91db 8w 4ohm 5.66V - ANKUX.COM

Hongkong Global Sources Electronics & Components Fair
FAQQ1: What is the MOQ of this 3inch full range speaker?
Answer: 1000pieces
Q2: What is the delivery time?
Answer: 30 days for a 20" container, it various according to the material and quantity requirement
Q3: What are your payment terms?
Answer: TT 30% deposit,left 70% against B/L
Q4: Do you offer free samples?
Answer: 2pieces for free freight collected, and the sample"s delivery time is 7-15 days.
Q5: Packing details?
Answer: Paper clapboard + carton box
Q6: What"s the H.S. code of the 3inch multimedia speaker?
Answer: 8518290000
