LS102W-22B-R4 10W 4ohm 4inch Full Range Speakers Audio System 6.32V

Speakers / Passive Speaker

Specification
Item
Value
1.1Rate Power
10W
1.2Max Power
20W
1.3 S.P.L
95±3dB(AT 0.1M/0.1W,
Average of 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
4Ω±15%
1.5
Frequency Range
Fo~~15KHZ
1.6(F0)Resonance Frequency
110±20%
1.7 Distortion
≤5%
1.8 Magnet Size
Φ70*32*10mm
1.9 Weight
390g±8%
2.0 Size
102*102*46Hmm
2.1Voice Coil
Φ19.45mm ASV+Cu
2.2 Cone
Foam +paper
2.3 Rate Voltage
6.32 V
2.4 Temperature
Operating temperature:-30 to + 75
Storage temperature:-40 to +85

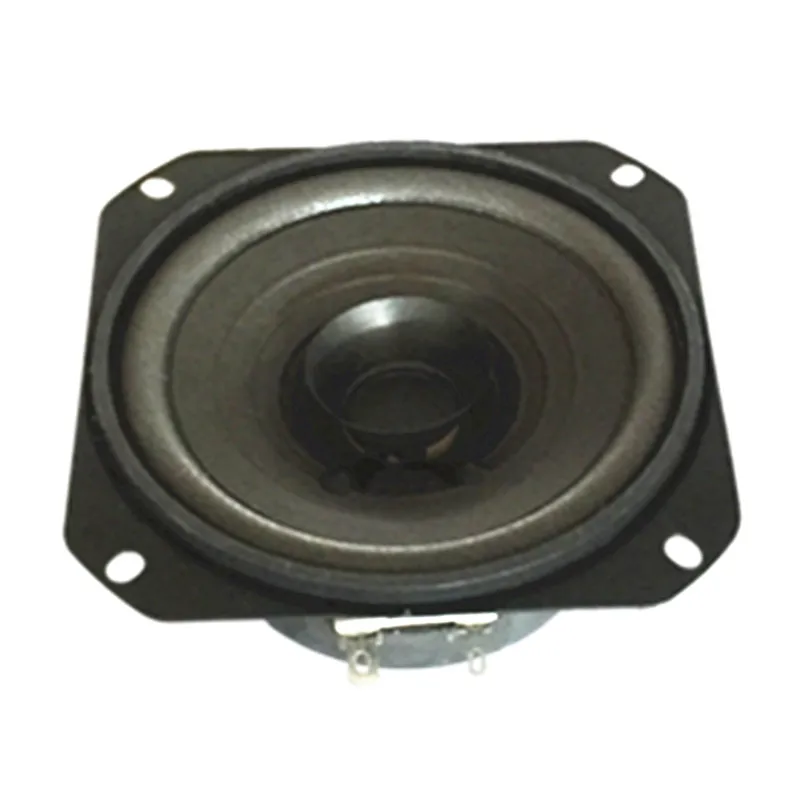

Product LS102W-22B-R4 10W 4ohm 4inch Full Range Speakers Audio System 6.32V - ANKUX.COM

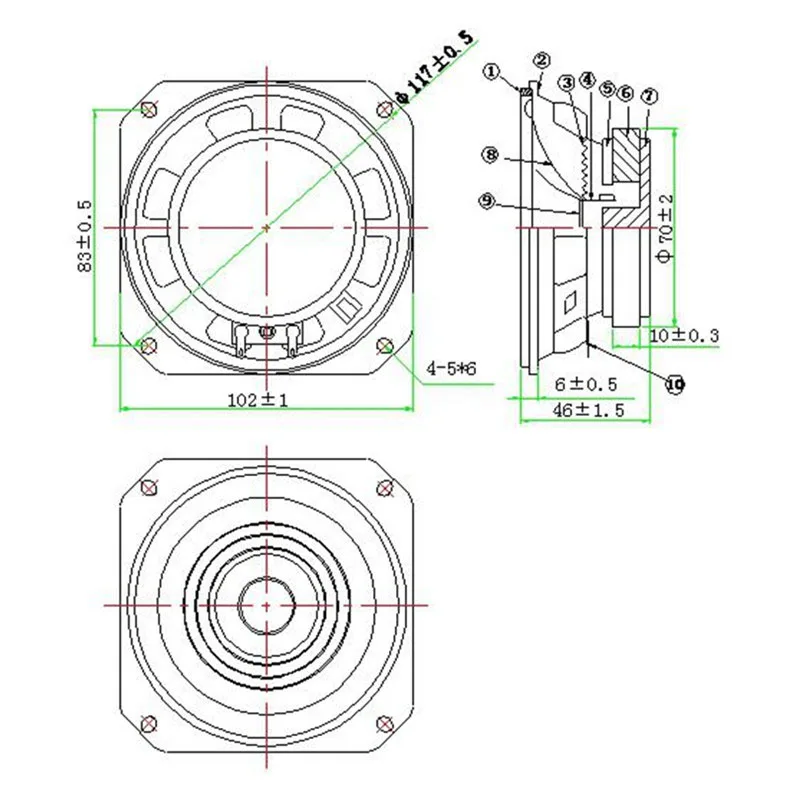

Dimension/DB picture LS102W-22B-R4 10W 4ohm 4inch Full Range Speakers Audio System 6.32V - ANKUX.COM

Factory

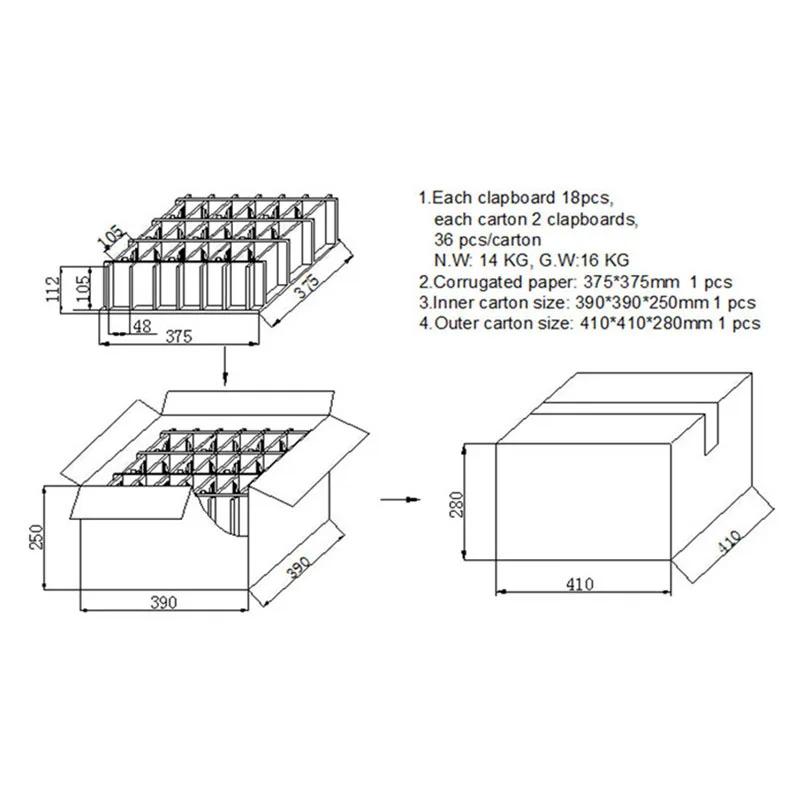

Packing/Component LS102W-22B-R4 10W 4ohm 4inch Full Range Speakers Audio System 6.32V - ANKUX.COM

Activity/Certificate
LS102W-22B-R4 10W 4ohm 4inch Full Range Speakers Audio System 6.32V - ANKUX.COM

Hongkong Global Sources Electronics & Components Fair
FAQQ1: What is the MOQ of this car audio speaker?
Answer: 1000pieces
Q2: What is the delivery time?
Answer: 30 days for a 20" container, it various according to the material and quantity requirement
Q3: What are your payment terms?
Answer: TT 30% deposit,left 70% against B/L
Q4: Do you offer free samples?
Answer: 2pieces for free freight collected, and the sample"s delivery time is 7-15 days.
Q5: Packing details?
Answer: Paper clapboard + carton box
Q6: What"s the H.S. code of the 4inch speaker?
Answer: 8518290000
