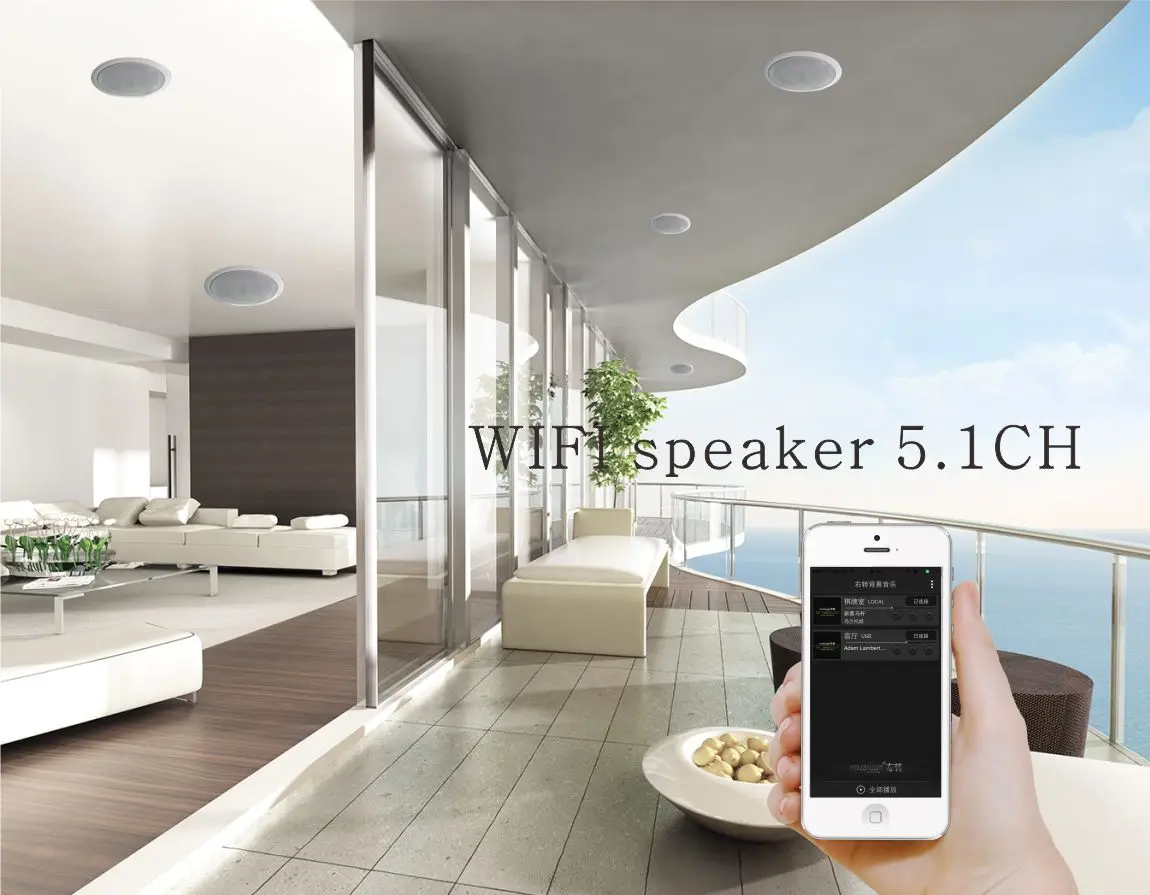

XBPA-1060 WIFI ceiling speaker


Product introduction:
Mobile phone APP intelligent control, WIFI network connection, huge network music will listen.
The network pushes the distance up to 100 meters, no matter where in the room, to master.
Support AIRPLAY/DLNA wireless transmission protocol, share music life.
Support the mainstream music platform push.
Product function:
Built-in HIFI level pure digital amplifier, high efficiency, bring HIFI grade perfect sound quality enjoyment;
Mobile phone APP control, WIFI connection network, huge network music resources to listen to;
Support MP3 / WMA/APE / / AAC/AC3 PLAC/OGG music format.
External music automatic detection capability of AUX;
Horn protection circuit, avoid the noise of the switch machine, prolong the service life of the horn;
RS485 communication protocol (optional), receiving remote host, controlling command through RS485, realizing remote control.
AUX external music automatic detection function.
The horn protects the circuit, avoids the noise of the switch machine, prolongs the service life of the horn.
Receive remote host through RS485 control command to achieve remote control.
Built-in HIFI level pure digital amplifier for your perfect sound quality enjoyment.
2CH Mode

4CH Mode

6CH Mode

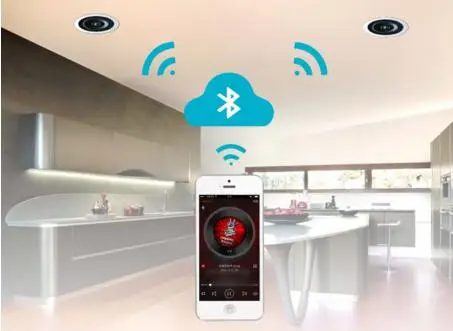

XBPA-1080 bluetooth ceiling speaker


Product introduction:
Bluetooth version of active speakers integrated power supply, digital power amplifier, TF card, AUX, optional RS485, TCP communication, anytime, anywhere via bluetooth to a smartphone, tablet, laptops and other mobile devices on the music content is pushed to the speakers to play, no wiring, do not take up space, does not affect the decoration.
Product function:
Built-in HIFI level pure digital amplifier, high efficiency, bringing HIFI perfect sound quality enjoyment.
Mobile APP control, bluetooth push, music resources to listen to.
Support MP3 / WMA/APE / / AAC/AC3 PLAC/OGG music format.
External music automatic detection capability of AUX.
Horn protection circuit, avoid the noise of the switch machine, prolong the service life of the horn.
RS485 communication protocol (optional), receiving remote host, controlling command through RS485, realizing remote control.
Product specification:
Model
XBPA-1010B/1020B/1030B/1040B/1050B/1060B
Power Supply
Audio interface
DC24V 2A
RCA
Bluetooth specification
Bluetooth V4
modulation mode
GFSK, pi/4 DQPSK, 8DPSK
Support Bluetooth Confederation
HFPV 1.6, HSPV 1.2, A2DPV 1.2, AVRCPV 1.4
Wireless transmission range
10rice
Bluetooth audio format
Support AAC, MP3, SBC, stereo
Rated power
10W*2/20W*2/30W*2/40W*2/50W*2/60W*2/
standby power
< 2W
frequency response
60Hz~18KHz+1/-3dB
Harmonic distortion
THD less than 1%
Signal-to-noise ratio
More than 68dB
Loaded horn
8Omega
Power Protection Circuit
Overvoltage and Overcurrent Protection
working temperature
5C ~ 40 C
Working humidity
20%-80% relative humidity, no condensation
Intelligent power supply
The signal is switched on immediately, and the power is automatically cut off without signal.

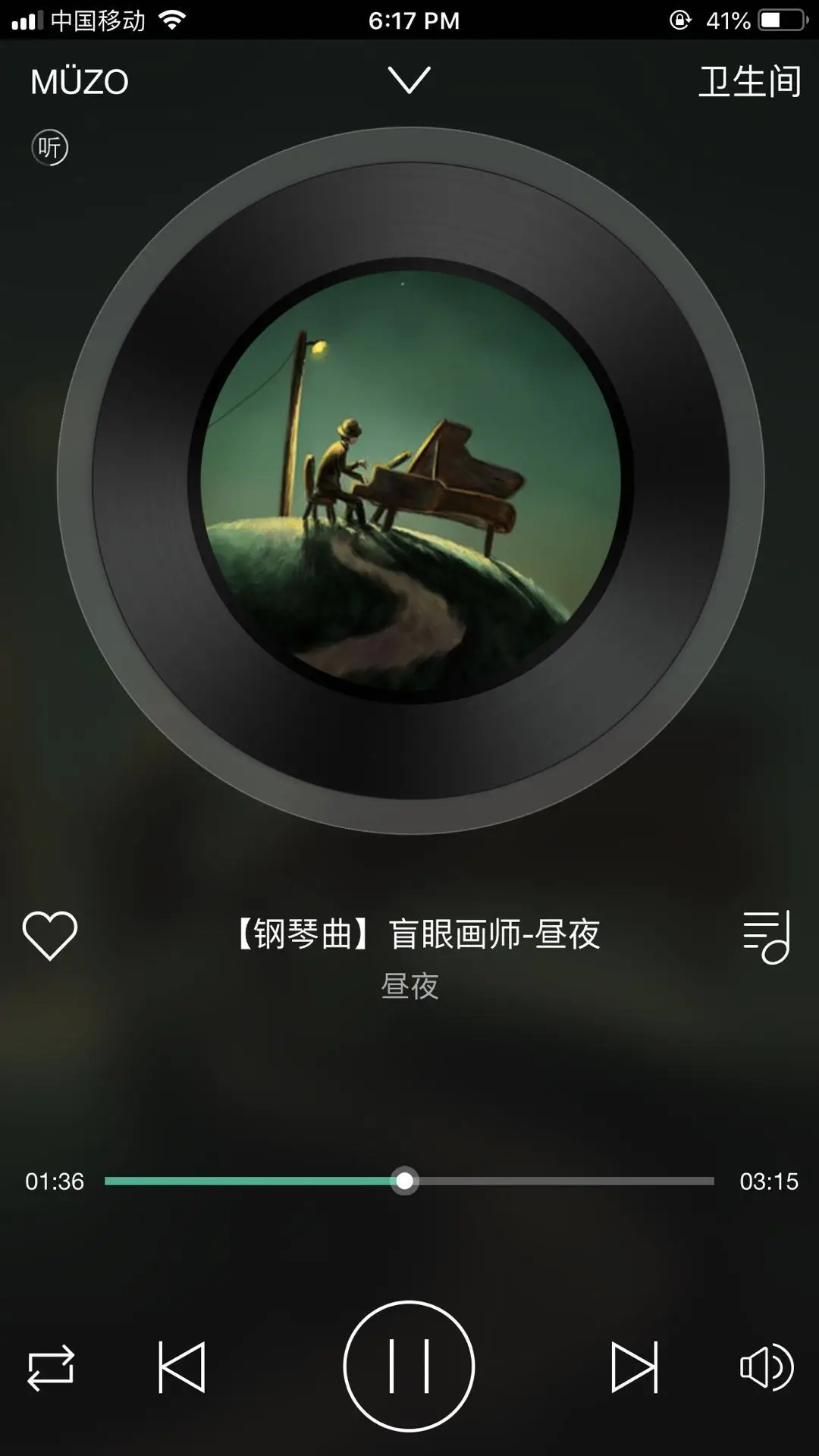

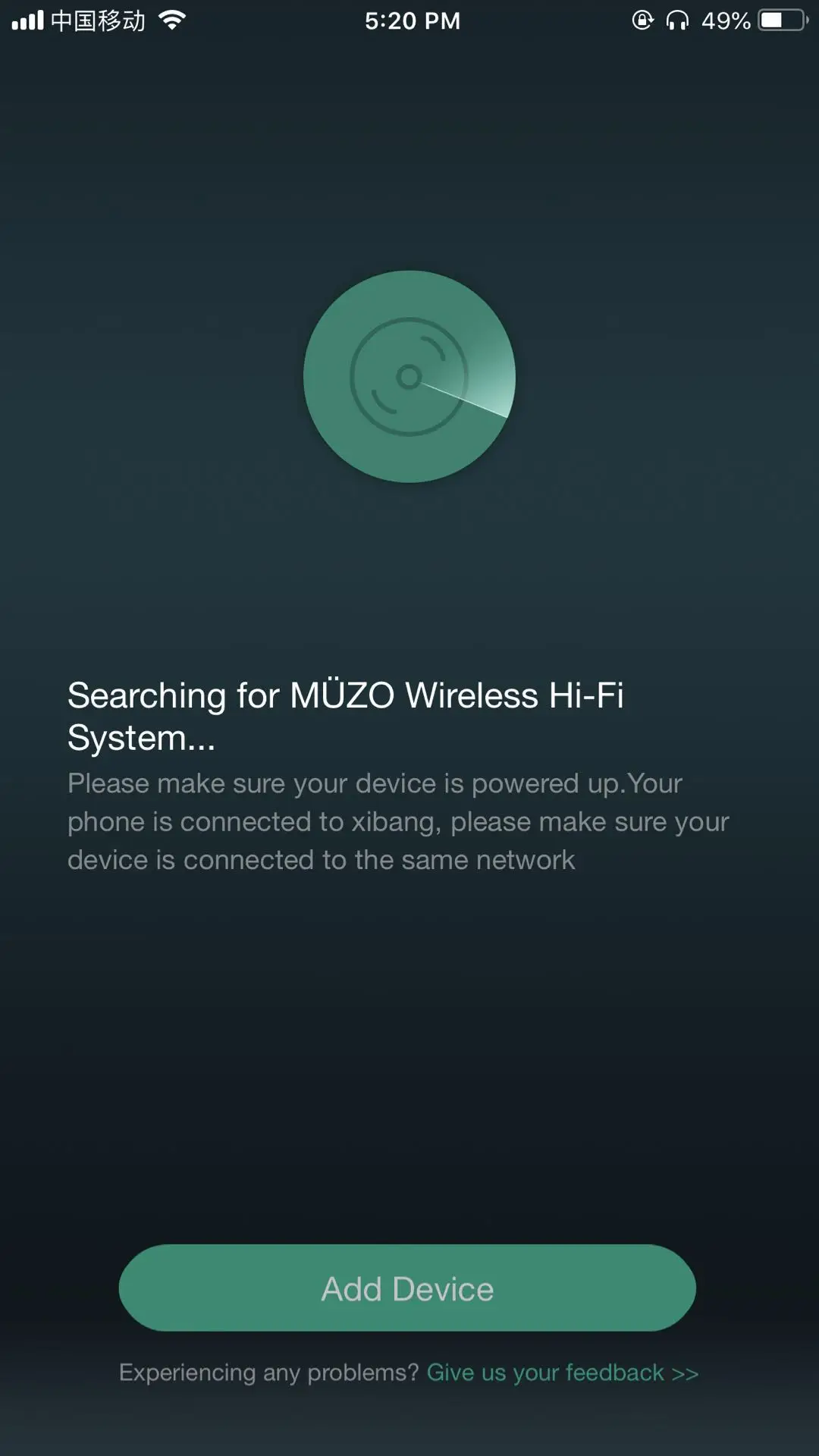

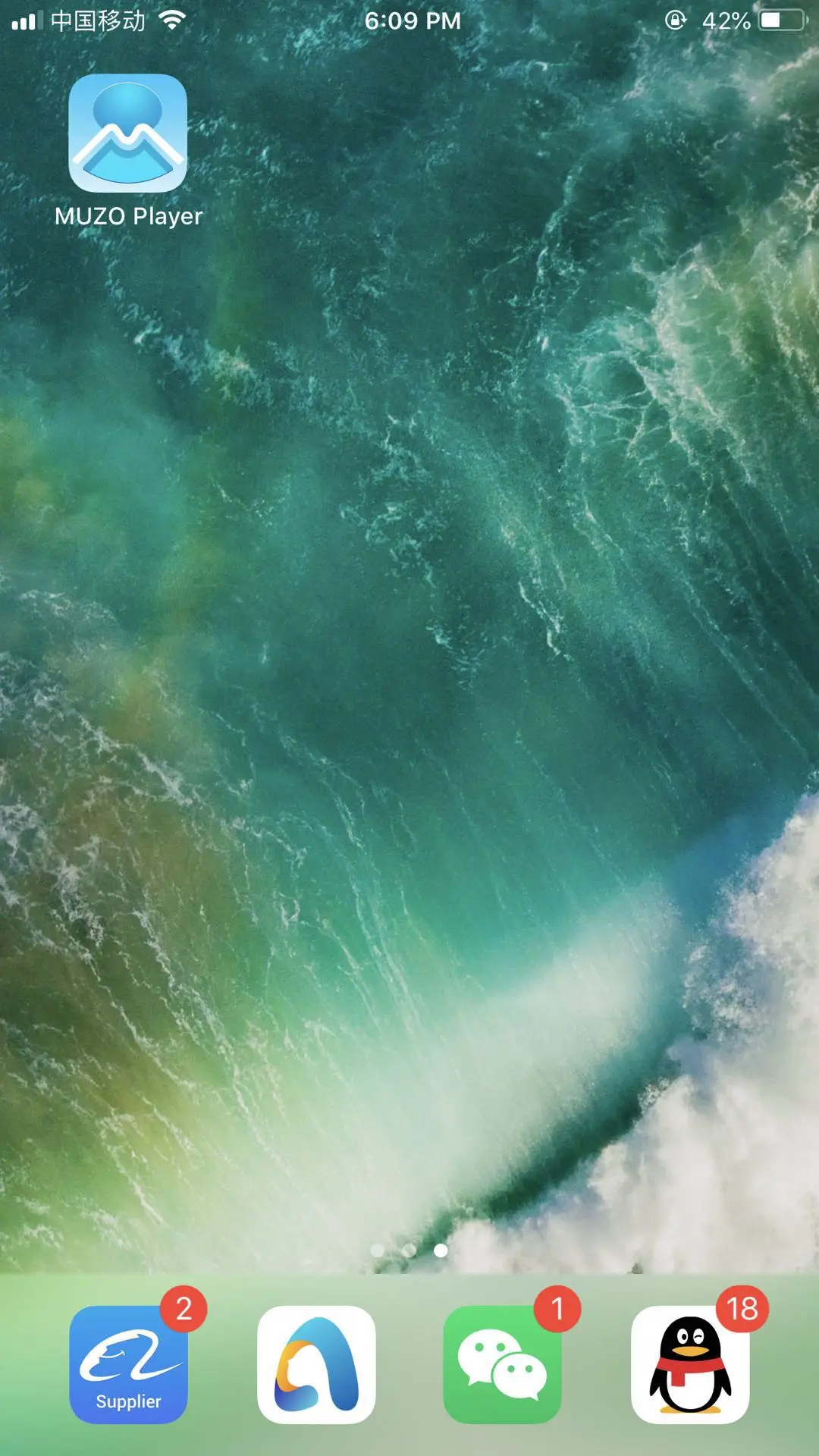

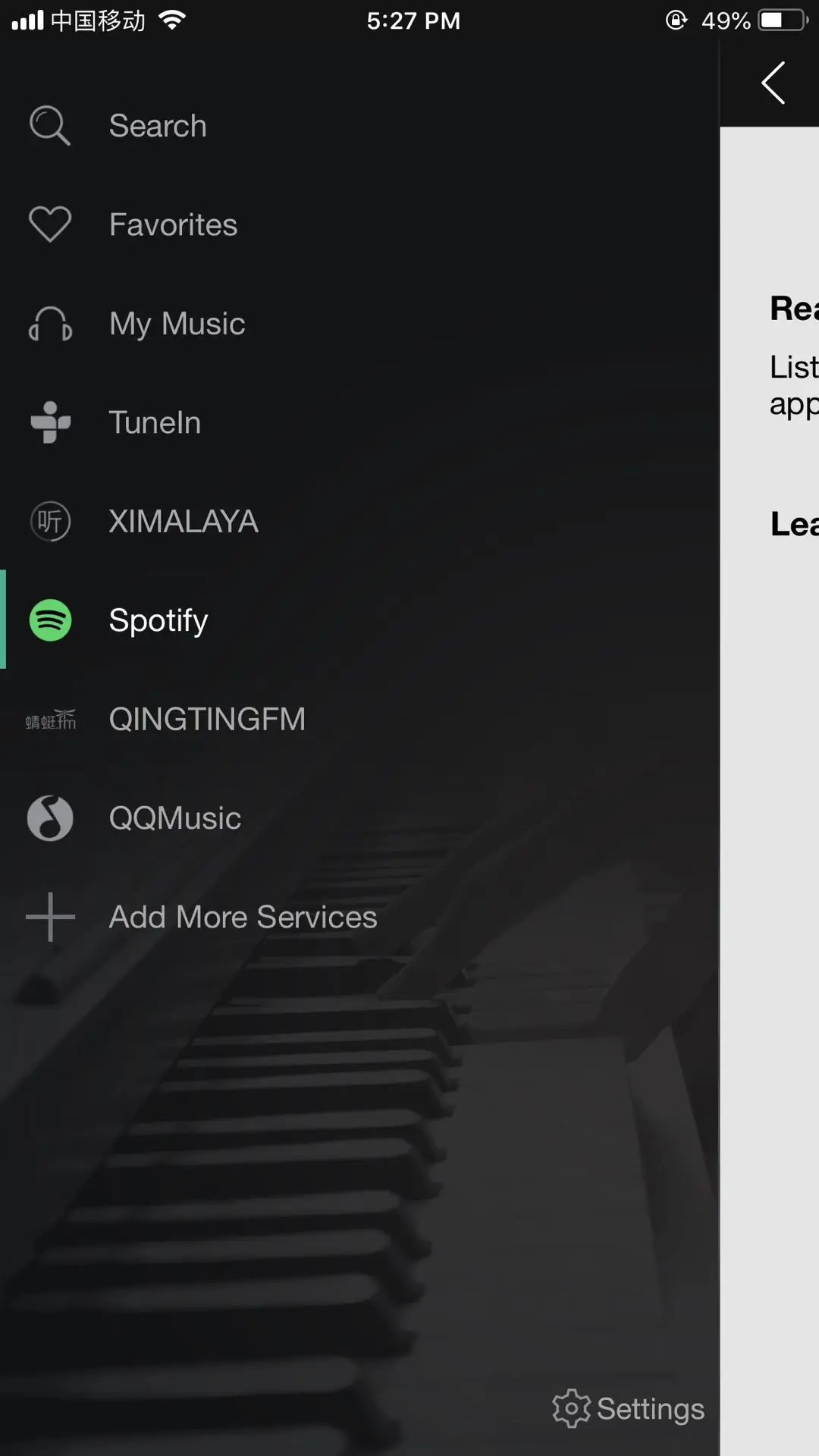

Using the process
FAQ
Q1. How long can I get the feedback after we sent the enquiry?
A: We will reply you within 4 hours in working day.
Q2. What is your terms of payment?
A: T/T, Paypal, Western union.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 2~25 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8. What is your terms of packing?
A: Generally, we pack our goods in white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Well show you the photos of the products and packages.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer and we sincerely do business no matter where they come from.
Q10:
What environment do you use in your products?
A:suitable for all scale of projects, such as school(Main), office building, shopping mall, factory, hotel, etc, for it could do various combination according to clients" demand.
Q11:What kind of products do you have?
A:1 According to system classification: public broadcasting system, IP network intercom system, professional sound amplification system, digital conference system, paperless conference system,background music system.
A:2 professional amplifier, power amplifier, public broadcasting system ceiling loudspeaker, the outdoor waterproof column, horn, lawn speaker, a spokesman for the conference system unit family background music controller, family background music speakers
