WL6148 80 Watts 4 ohm 6inch speaker woofer Main Features1) 6.5inch stage woofer speaker
2) 80 W continuous program power capacity

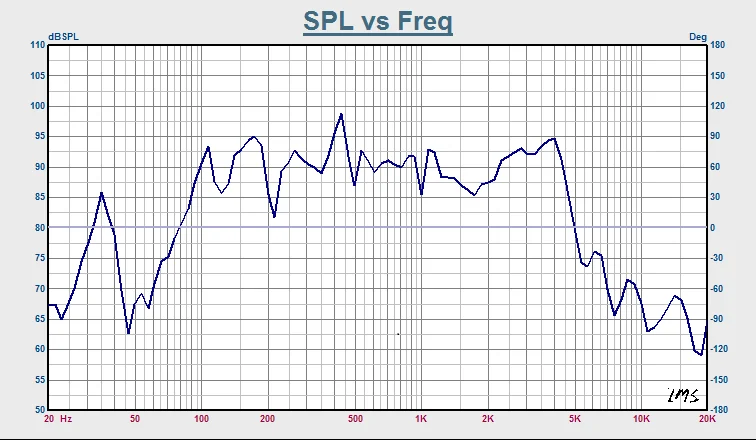

3) 73-4100 Hz response
4) 95.4dB sensitivity
We Accept T/T,cash etc
1. Tell us the Items model and quantity you order. we make a record for you. Then You pay the down payment 30% of the total amount to our company account .(Please notice bank charge is paid by your side)
2.After we receive the down payment, we will produce the goods for you.
3.Once we finish the products , we will send you the photos to check and confirm.
4.If everything is ok, you pay the 70% balance amount.
5.After we receive the balance amount, we will arrange shipping for you.
6.During shipping,we will inform the delivery data, such as where is the goods now, when will arrive to your seaport....
7. After received your goods, if have any questions,our customer services and engineers will try to solve
Product Parameter
Model WL6148
Product Name 6.5inch stage woofer speaker
General Specifications
Nominal Diameter 166mm
Resonate Frequency fs 73.6Hz
Resonate Frequency Range 73-4100Hz
Sensitivity 95.4db
Nominal Impedance 4 OHM
Shortterm Maximum Power 80W
Total Quality Factor,Qts 0.49
Voice Coil Diameter 35.5mm
Magnet Diameter 140*70*20mm
Equivalen Air Volume to Cms,Vas 51L
Mechanical Quality Factor ,Qms 1.85
Physical Information
Basket(Frame) Iron
Cone And Dust Cap Non-Press Paper
Surround(Damper) Cotton
Voice Coil Wire Copper(PESVW)
Voice Coil Bobbin Aluminium(ASV)
Magnet Ferrite
Spider Rubber edge
Q1: What is our warranty for speaker drivers?
For our speaker driver, we have one-year warranty.
Q2:How can i get a sample ?
If you need some samples to test,we can make as per your request .You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.Thanks.
Q3:How much the transportation freight of samples?
The freight depends on the weight and packing size and your area.
Q4:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q5:Can you produce according to customers design?
Yes.we mainly do the OEM/ODM service.
Q6:Whats the minimum order quantity(MOQ)?
MOQ is 50pcs-500pcs each model size.
Q7:How about the delivery time?
For sample: 10-15 days
For order: 30-45 days
