specificaiton
Model name
P320
Optional Capacity
93600mah / 120600mah/124800mah/160800mah
Product size
L242mm*W160mm*H186mm
Net weight
About 4kg
Cell type
Lithium battery ICR18650
Input
DC 3 port:14V-20V/60W(MAX)
DC 15 port:14V-20V/60W(MAX)
PD 8 port:5V-20V/50W(MAX)automatic identification
Solar input: 15V-20V/100W(MAX)(The port identification refer to item three)
Output
USB*2:QC3.0 3.8V-12V/18W(MAX)
TYPE-C*1:3.8V-12V/18W(MAX)support PD
TYPE-C*1:3.8V-20V/60W(MAX)support PD
DC*1:12V-24V/150W(MAX)The voltage is adjustable
DC*2:9V-12.6V/5A(MAX)
TX30*1:9V-12.6V/10A(MAX)
AC*2:110V-120V/220V-240V(300W MAX)(AC output 110V/220V is is optional
Lighting
Low beam lighting:3W
High beam lighting:3W
Simultaneous Charge and discharge
YES
Multi-protection
Over-voltage protection, Over-current protection, low-voltage protection, Over-temperature Protection, short-circuit protection
Full charge time
Adapter/car adapter: 8 hours
100w solar panel: 10 hours
Simultaneous charging by 3,8,15 ports:3 hours
Cycle index
≥500 times
Charging temperature range
0oC ~+50oC
Discharging temperature range
-10oC ~+65oC
Storage temperature range
0oC ~45oC，within 30 days
Long-term storage
temperature range
0oC ~40oC，within 180 days
Storage humidity
45% ~85%RH
Long-term storage humidity
Advise charge full the P320 when not used for more than
90 days
Product details
Application :
For all 5v , 12v-24v indoor /outdoor devices . support Solar panel / Jump starter / tablet /Old round dc laptops / Newest Type c
Laptops / camera/ mobiles/Fan / RC charger /Router/ mini refrigerator / Small LED TV / etc
P320 Advantages :
A. Comparing with the multifunction AC DC power banks, Our P320 functions and Specs are the best at present . most of the AC power
banks only support 12V and the 12V is not constant ,But our P320 have one Input/Output DC mutual port can support 12V-24V Constant
working , . and P320 has 3 more DC 12V ouput ports support the 12v which is not constant .
B. P320 with 2 Type c port , one is only support type c output 18W (MAX) , and the other type c port support Input (50W ) / Output
(60W MAX ) ;
C. P320 with 2 AC ouput port (300W ) with Pure wave
D. P320 has 3 different input ways , and can working at the same time , about 2 hours full charged if working together , very fast
E. P320 can support 10A large current working
P320 Accessories :
1.P320 portable power station *1pcs
2.AC power adapter *1pcs
3.DC cable *1pcs
4.USB-A to USB-C cable *1pcs
5.USB C to USB C cable *1pcs
6.laptop adapter *1set(8pcs)
7.In car charging cable(Male car charger to 5525 DC male) *1pcs
8.DC to in car charging cable(Female car charger to 5525 DC male) *1pcs
9.Product manual&warranty card
P320 ports instructions :
1.Far LED light；
2.Button Button for LED light
3.DCinput/Output port Input:13v-20v ;Output :12V-24V
4.Button Button for DC port voltage selection
5.Near LEDlight；
6.DC*2pcs output port 12V ；
7.XT30 Output port 12V 10A；
8.TYPE-CInput/Output port QC3.0/PD 60W；
9.TYPE-C Output port QC3.0/PD 18W fast charge；
10.USB2*2 output port QC3.0 fast charge；
11.Button button for 2 USB ports;
12.AC*2 Output ports AC 110v-240v；
13.Button Button for AC port;
14.Fan*2；
15.DC input port；
16.LCD display Show working voltage ,capacity percent,power(W) etc

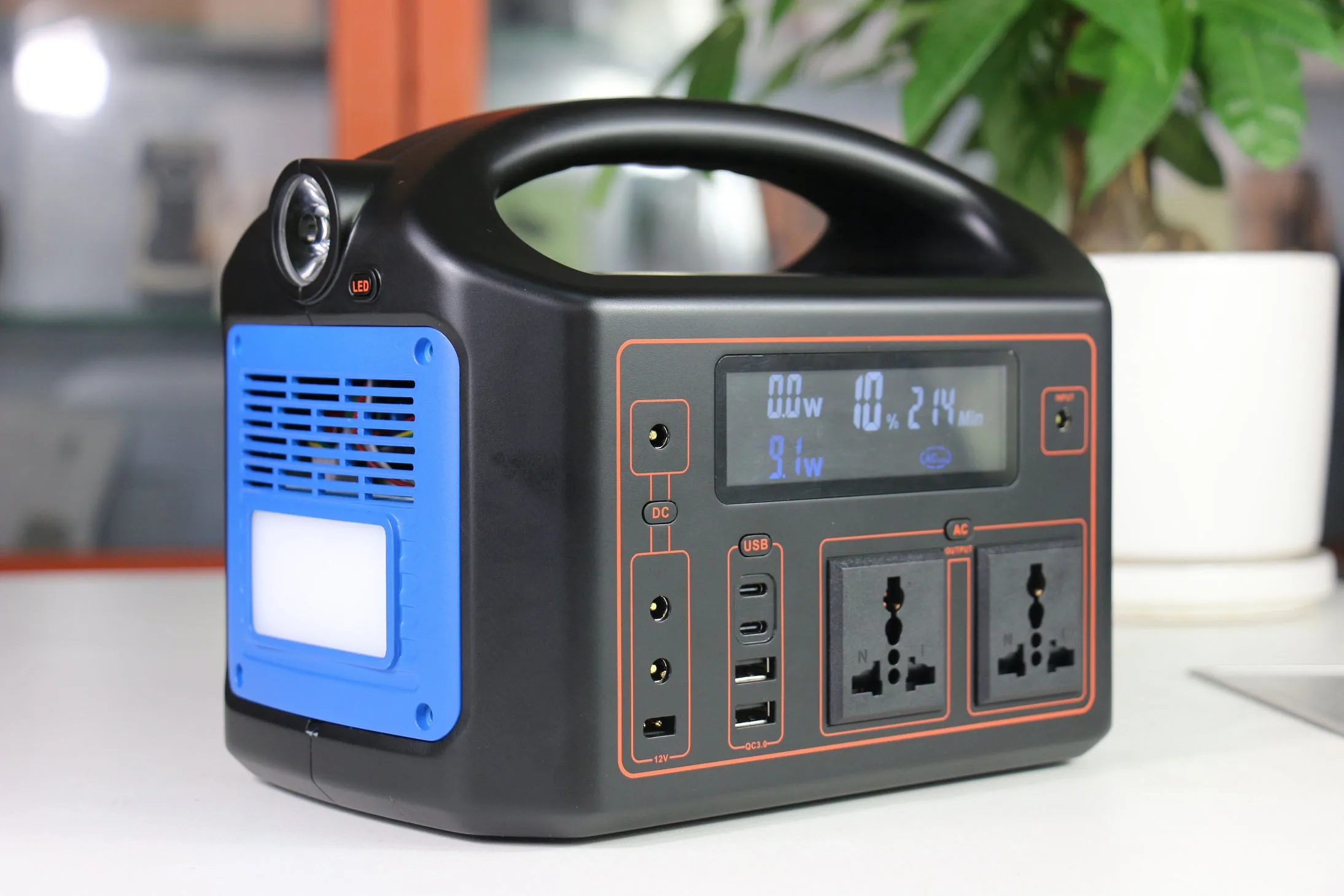

product picture
