Model P66
Product name Multifunction laptop power bank
Capacity 15,600mAh(57.7WH)/ 20100mah(73WH)
Size L174*W78*H21.5(MM)
N.W About 420g
Cell Type Lithium Battery ICR18650
Input Mic USB: 5V-12V/18W(MAX) NB: 13-20V/3A(MAX)
Output USB1:5V/2.1A USB2:QC3.0 3.8V-12V/18W(MAX) NB:12-24V/65W(max)(continue working about 50W)
Charge and discharge Yes
Circuit protection OVP, UVP, OCP, OTP
Conversion efficiency 5V/2A≈93% 9V/2A≈95% 12V/2A≈97%
Charging mode CC--CV(constant-current charging / constant-voltage charging)
Application product Smart phones, tablet PCs, notebook, car charged and car start
Charging Full time USB input: about 4 hours (quick charge adapter) NB input: About 2.5 hours
Cycle times >500times
Long-term storage time Long-term storage time
Certification CE/FCC/ROHS
Warranty 1 Years
OEM logo and pacakge Yes, support
2019 all in one 10000mah camera power bank 18V DC output 18W fast input charge mobile phone accessories product

1.Summary
This power bank charges all kinds of DC5V USB interface products, such as smart mobile phone, tablet PC, MP3/MP4, digital camera, etc. QC3.0 USB output port supports 3.8V-12V/18W(max) output. NB output port for charging 12-24V notebook. Also this output port supply power to car and start car.
2, Function instruction:

1, NB port: Notebook output port,car charging input/output port;
2, USB 1 port: 5V/2.1A output;
3, USB 2 port: QC3.0 3.8V-12V/ 18W quick charging output
4, IN port: Micro USB 5V-12V/18W fast input
5, Display screen: Display voltage, capacity, power, etc
6, Key: Voltage selection, on/off key.
3.Key function instruction
1,Shortly press the button to light the display screen and turn on the power bank
2,Long press over three seconds to enter the mode of voltage selection, voltage indication will blink,then shortly press the button to select the appropriate output voltage.
4, Instruction of abnormal code
Abnormal code of battery: when the battery is abnormal, the output will be cut off automatically, and LCD display screen will indicates abnormal code:
1, OV overvoltage protection;
2, UV undervoltage protection;
3, OC Overcurrent protection;
4, OT overtemperature protection.

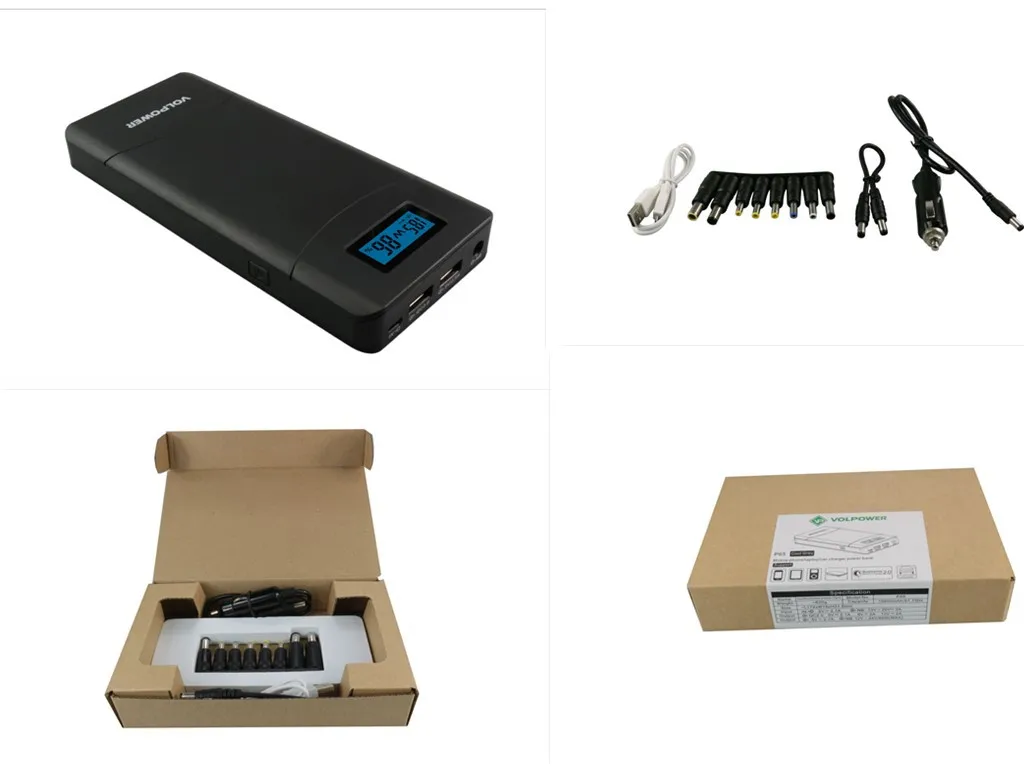

5, packing list
1, power bank *1 piece

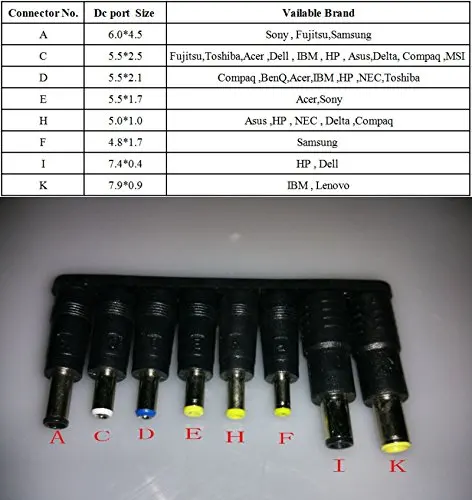

2, Computer cable+notebook connectors*1 set(8pcs);
3,car charging cable*1 piece
4, USB cable*1 piece
5, Manual & Warranty Card *1 piece
