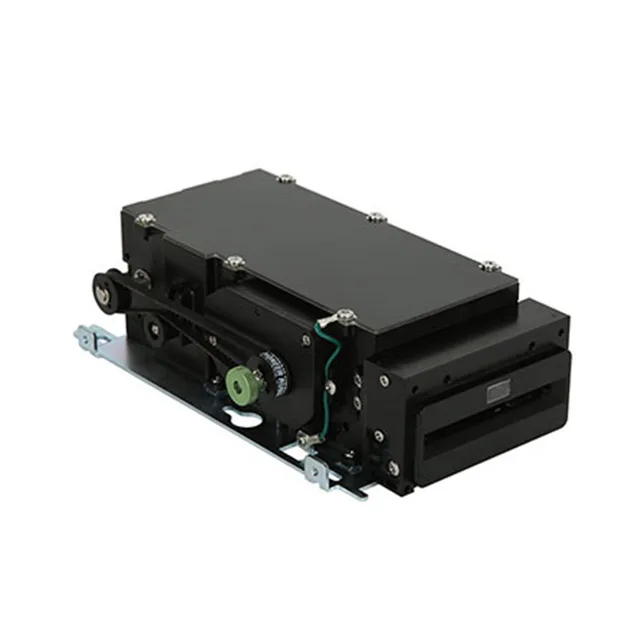

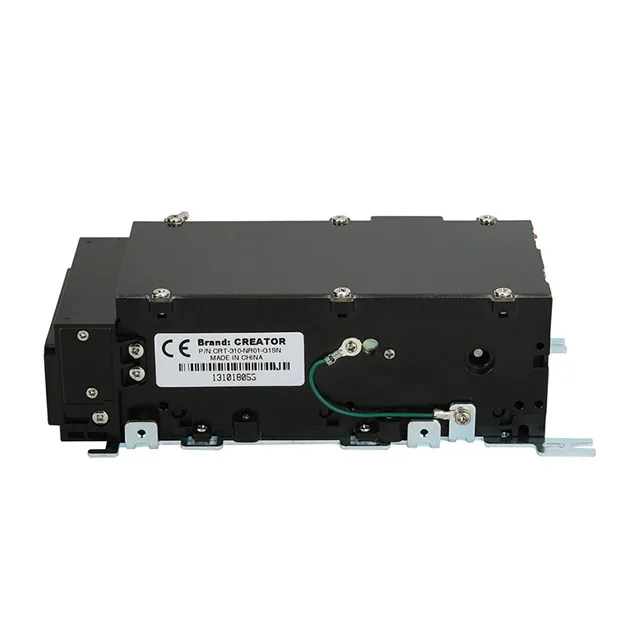

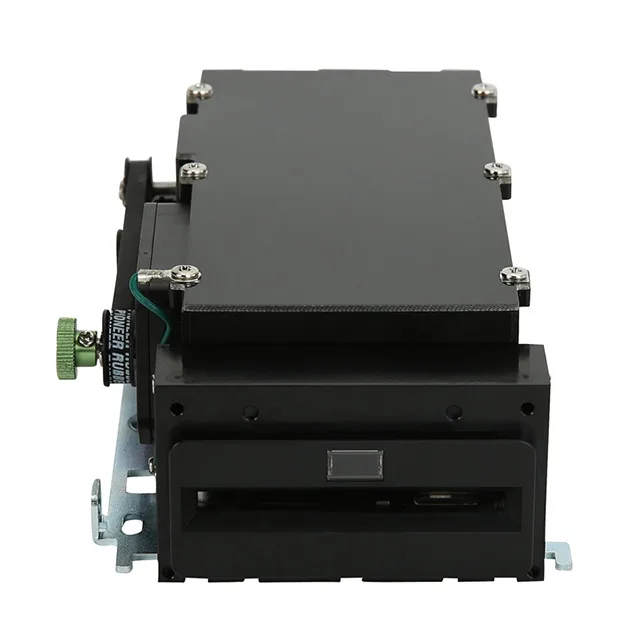

CRT-310-N is a smart card reader equipment which is by the way of "Auto insert/eject card, 3 in one",supports magnetic card,IC card and RFID card etc.it is widly used in many applications such as kiosk terminals,traffic control systems,ATM and other payment systems etc.

Smart card reader,EMV card reader CRT-310-N product feature
Three in one: RFID/IC card read/write, magnetic stripe card read only
Electric shutter,
Auto insert/eject card from the front, Insert and eject the card from both the front and the rear side
RS232 interface
DC12V ±5%
Clearance of abnormal card
Fault tolerance processing is the same as some other brands
Small-size controllable electric shutter
Support warped card mechanism design
Power-fail protection
PSAM board for option

Smart card reader,EMV card reader CRT-310-N product Specification
Life time Magnetic head: 600,000 passes
IC card contact:300,000 passes
Motor: 1,000,000 passes
Environment conditions Operation:0~50/0 ~ 90% RH(Non condensing)
Storage:-25~70/0 ~ 90% RH(Non condensing)
Dimension 96.5x167x51.5mm
Weight Approx 530g
Contactless smart card (optional) ISO14443 TYPE A & B
Interface RS232 interface
Power DC12V±5%

Competitive Advantages
Small-size controllable electric shutter
Support warped card mechanism design
Power-fail protection
Long life 1,000,000 times for transportation
Installation dimension and bezel dimension are compatible with 3K7
Fault tolerance processing
Support IAP online download
