SD Card mobile DVR with G sensor function
Video

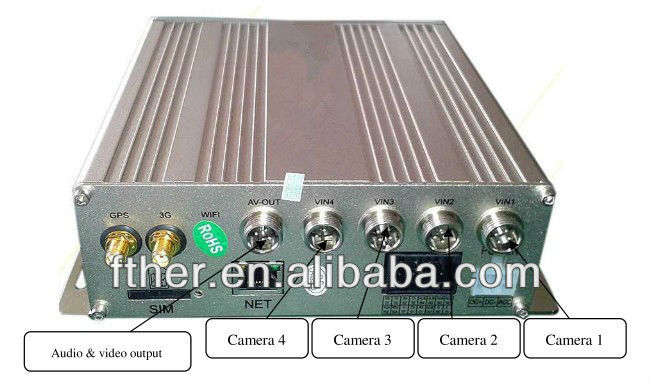

Video Input
Input
4CH Video Input(PAL/ NTSC 1.0Vp-p)
Compression
H.264(available convert to AVI video file)
Resolution
CIF(Up to 4CH/100FPS),HD1,D1(Up to 4CH/48FPS)
Video quality
Quality 1~8, 1 is best.
Frame
PAL 1~25fps,NTSC 1~30fps
Video Output
Output
2CH video output: CVBS signal(PAL/ NTSC 1.0Vp-p)
Video playback
Display
1 screen/2-screen/4-screen preview video
Recording
Power-on recording, Manual recording, cycle recording, timer recording, pre-recording
Support OSD(Such as license plate number,time etc.)
Playback
2×,4×,8×,16X times fast forward / rewind playback
,1/2×,1/4×,1/8×,1/16×times slow, pause, 4CH playback
Audio
Audio input
4CH input(RCA)
Audio output
1CH audio output

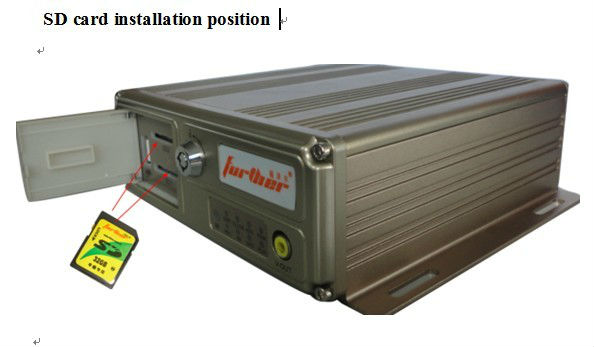

SD card
Up to 64GB
Backup
One USB1.1 interface storage GPS
Double storage
One USB2.0 interface export, output storage file, video file frame rate can be set
Auto power save
Support auto-save feature when suddenly lose power (delay 10 seconds) to make sure video files not damaged
Alarm
Alarm conditions
SD card abnormal alarm
Video signal loss alarm
System software failure alarm
Low-speed alarm(Can be set,less than 10KM)
High-speed alarm(Can be set,more than 150KM)
Alarm input
4CH input switching signal,support 24V voltage input
Alarm output
1CH switching signal output
Buaaer beeps

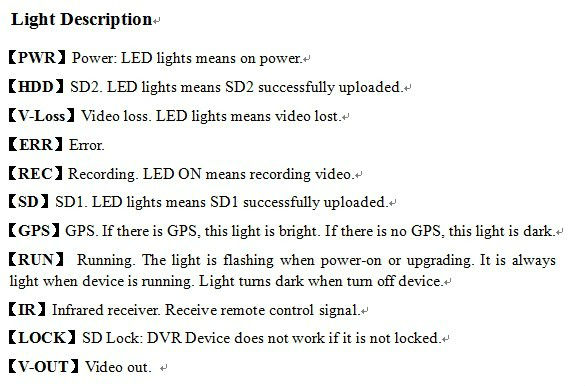

Status Indication
LED output
8 LEDs: power, fault indication, recording status, video loss, SD card status, 3G/GPS status, device running status, hard drive status

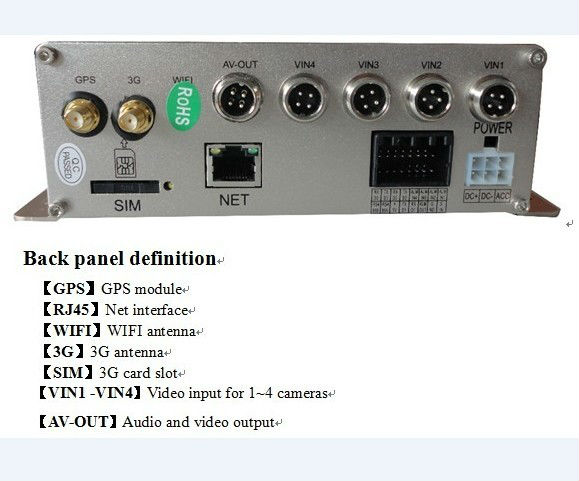

Port Supplement
RS232 port
One RS232 port can connect GPS,GPRS devices etc.
USB1.1 port
Data backup,intelligent software upgrade etc.
Infrared
For remote control
RS485 port
One RS485 port to control PTZ
System
Language
Simplified and traditional Chinese and English
Interface
Infrared remote control to control it
Full menu (OSD) graphical user interface
Safety
Two user rights management
Password encryption
Time/Log
Built-in clock
Detailed log can record On/Off power, alarm, network, plug SD card, take out hard drive, operating and other information.
Voltage input
6V~36V
Voltage output
5V@2A,12V@2A
Power
<=15W,hard drive is not included
Software Requirement
User management
Password protection:Reserved super password
Login: You can setup and operate the device after login.
Power On/Off
Equipment in the standby
1,Remote control turns off device or make it in the standby.
2,Support to turn on device by remote control when there is power to device.
3,Ignition recording.
4,Timer recording.
5,Delay recording. 0~4 hours optional.
Parameter settings
Remote operation
Load parameters by U disk or SD card.
Export device settings and generate it to configuration file, the configuration file format is the same as the PC configuration tool"s.
Others:
1,Can modify the video quality, frame rate, resolution.
2,Can close any channel video and voice recording function.
3,When the corresponding video channel is closed, the corresponding audio channel automatically shut down
4,When parameter setting does not succeed, you should reset it.
OSD superimposed information
Each device has its ID, you can set the license plate number, vehicle lines, company information, and change channel name
Software Upgrade
Support to be upgraded by network interface, USB, and SD card.
Data Storage
Each channel has its independent video file and save the synchronous information.
Automatic overwrite switch
Data export
Support to export video files by USB.
Search for Playback
Support to search video file according to time and event.
Select the searched file and then play it.
Support 4CH playback at the same time
1, 4CH video can be playback at the same time
2, When one of the video files is lost, it just playback other video files. It shows video lost in the screen ( blue screen).
3, Audio and video are synchronous, only playback the selected channel audio.
4, It will search for the next file automatically after finishing the playbacks for each channel.
5, When playback video, it can be chosen any channel video to playback.
Mechanical Indexes
Working Temperature
Starting temperature 0°C~ 60°C, working temperature-10°C~ 70°C.
Storage Temperature
-40°C~ 85°C
Interface Feature
All interfaces are antistatic.

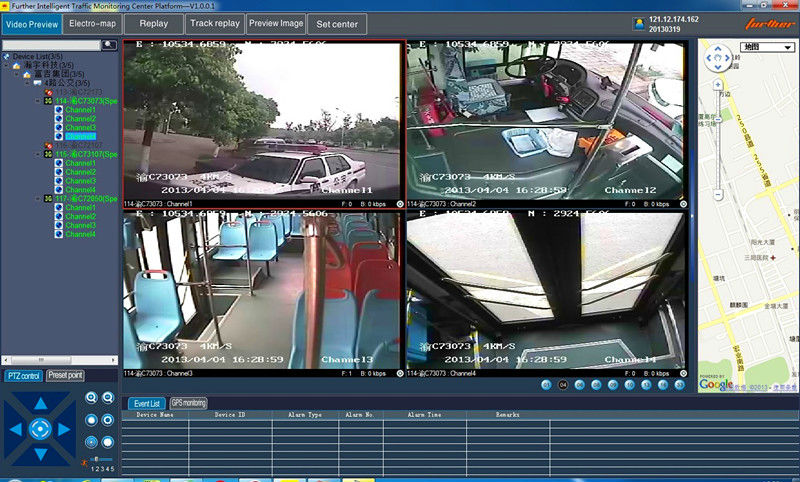

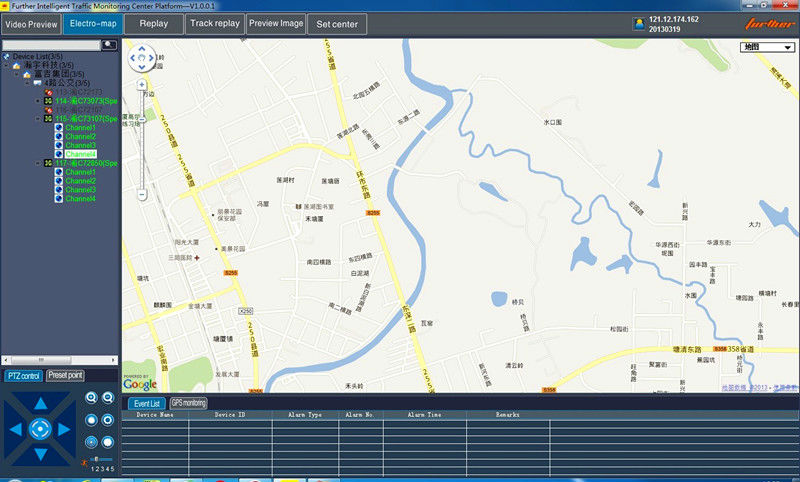

PC Suite Software
PC Playback Analysis
When video is playback in PC, it shows vehicle in the Google map, alarm message and accelerated etc.
