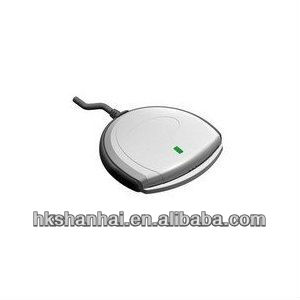

SCM SCR3310 USB Smart Card Reader Common Access CAC IDSCM SCR3310/3310V2.0 USB Smart Card Reader Full speed USB2.0 (12Mbps)
Features
- Ergonomic and cost efficient design
- Software and functionality compatible with SCM´s SCR33xx readers family - In field firmware updates (SCR3310)
- EMV Level 1 certified
- Compliant with major smart cards and relevant industry standards - Customization options: Casing color and company logo
Typical Applications
The SCR3310 /SCR3310v2.0 are suitable for a wide range of applications for gov-
ernment as well as for enterprise and home useage.
Due to its design, the readers are also ideally suited to be bundeled with smart cards and software to support large scale projects roll outs.
Typical applications for the SCR3310 /SCR3310v2.0 include secure logical access to computers and networks, secure authentication for Business-to-Business and Business-to-Consumer applications, and secure logon such as email encryption, social security and loyalty programs, e-Couponing, secure network log on, e-Banking as well as online shopping and gaming activities.

Parameters:
Interface
SCR3310
3310V2.0
Host machine
USB
-Full speed USB2.0(12Mbps)
-USB Bus powered device
-Apply to CCID
Smart card
Connect type
-Support T=0,T=1 agreement
-Passed SCMMCARDAPI support memory card
-communication
Speed:344kbps(PPS/FI)
-Frequency: 8MHz(PPS/DI)
-Support ISO7816A and AB smart card
-Support ISO7816A/B and C smart card
-8 touching points-ISO position
-For 100.000 times plug
×
×
Staff
Optics
-One green LED
Software
API
-PC/SC
-CT-API
Operating System
-Windows®Vista/XP/Server2003/2000/ME/98
-Windows®Vista/XP/Server2003(AMD64/EMT64)
-Windows®CE3.0/4.1/4.2/5.0/6.0
-MacOS/Linu×32bit(2.4.×,2.6.×)/64bit
Cable
-Length:0.5m, with USBA connector
Size
L×W×H[mm]
-70×70×10
Weight
[g]
-70
Condition
Temperature[]
Humidity[]
-0 to 50
-90
Certificate
Function
-FCCB Part 15/cULus/CE/VCCI
-ANZI(SCR3310)
-ICES-003 Edition 4
-ICES-003 Edition 4, Class B
-USB-IF
-Microsoft®WHQL2000/XP/Server2003
-EMV2000 Class 1
×
×
Evironment
-RoHS,WEEE
-Apply to REACH(SCR3310v2.0)
if you have the interest to the ACR38-SPC usb contact chip card reader,pls inform us,and we will help you turn your idear into products with high quality!
...
