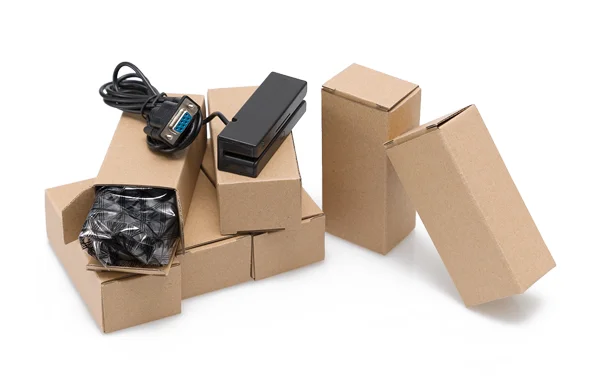

MSR100 Multifunctional USB magnetic swipe card reader module with low price GPS
Magnetic Stripe Card Reader MSR100 can read Track 1, 2 and 3 hi/lo-co magnetic cards in Bi-direction and is designed to offer a card reading solution for ISO 7811/12 formats.
1, With indication of light
2, Low power consumption, good compatibility
3, ISO 7811/12/13/14
4, Easy Programmable
5, RS232/PS2/USB
6, Cards can be swiped and read in both directions.
7, Readers can be affixed to most computer keyboards or to any flat surface,
8, Can be connected to any PC or Mac via keyboard wedge or USB interface.
Main parameter
Technic Details: Recording Density: 201 BPI, 75 BPI or 210 BPI
Recording Capacity: 79 Characters, 40 Characters or 107 Characters
Power Supply: +5V DC ±5%
Power Consumption: 65mA(max.)
Head Function: Read only 1.5mm
Card Thickness: Plastic 0.76 ± 0.08mm
Operation Speed: 10- 150cm/sec
Error Rate: Less than 0.5%
Interface: RS232, PS2, USB or TTL is available
Dimension: 90 x 26 x 28mm
Operation Locus: Indoors only
Cable Length: 150cm
Lifetime of Header: 800,000 card passes (1 pass : one swipe)
Weight: Appro. 100g
Software

Packing And Warranty
1. Our company has the lowest price with the same quality among the brothers manufactures
2. 2 Year warranty
3. The existence of quality, a replacement freight from ourfull commitment
