The USB (Universal Serial Bus) Swipe Reader is a compact magnetic stripe card reader with a single read head that conforms to ANSI/ISO standards. It’s specially used for bank,commercial, post and securities etc .The Reader is compatible with any device with a host USB interface.
Features:1.Read the second track from magnetic cards
2.LED indicator
3.Used for Credit Card Point of Sale, Data Collection, Access Control,Age Verification from AAMVA Drivers Licenses
4.Low power consumption, power supplied by computer CMOS for TTL interface
5.Excellent design
6.CE, ROHS, FCC certificated
Magnetic Card Standard
ISO 7811/12,Credit,Drivers License

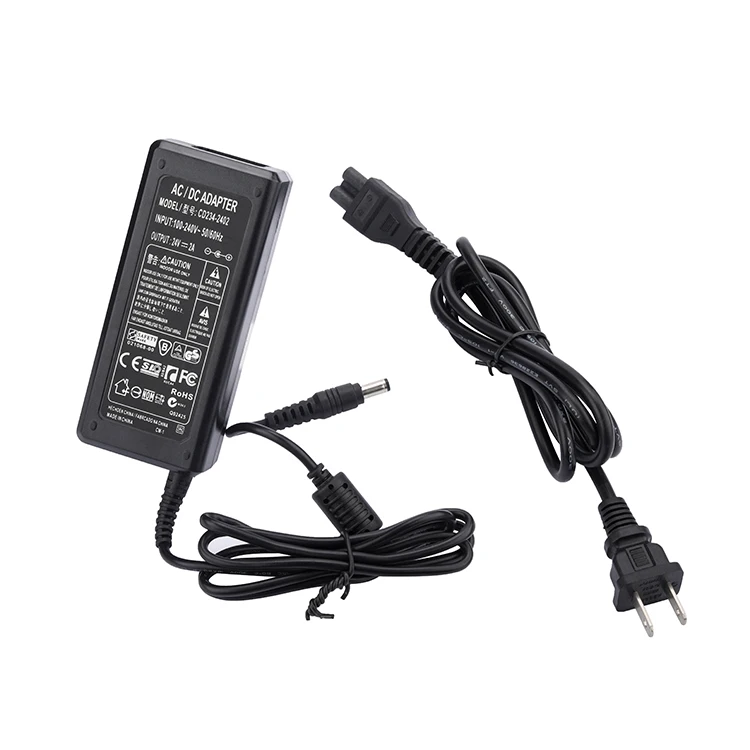

Power supply
External switching Power 24V/2.2A regulated
Cable
DB9, 5 feet
Media Swipe
Head life 1,000,000 passes for both read & write head
Pin Assignment
DB-9
1,4,6,7,8,9, no connection;2.TXD / data transmit
3.RXD / data receive
5. circuit ground
Body
ABS 94V-0 / Metal housing optional
Swipe
Manual, single direction
Size
215*60W*60mm
Weight
1.5Kg approx
Media Thickness
0.76-1.2mm
Media Swipe
Head life 1,000,000 passes for both read & write head
