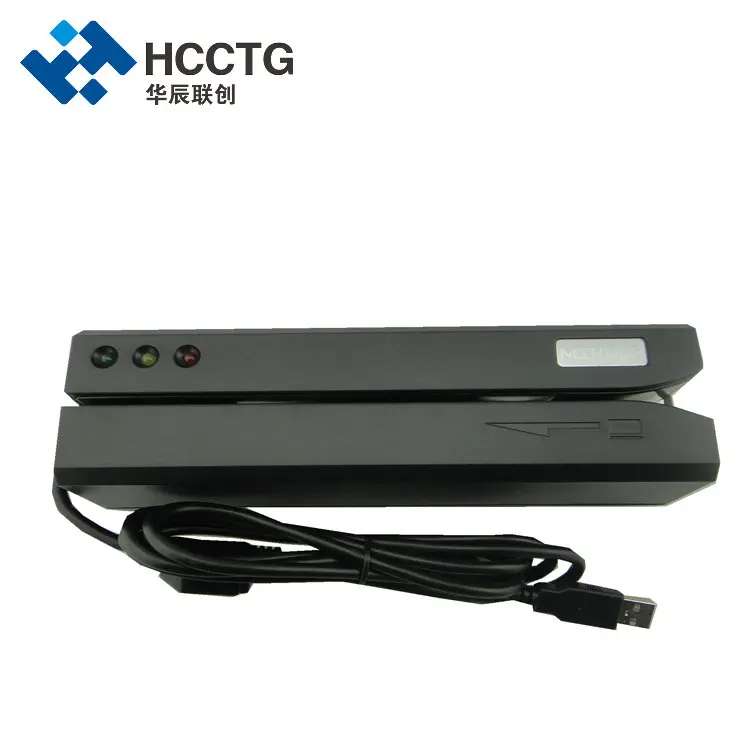

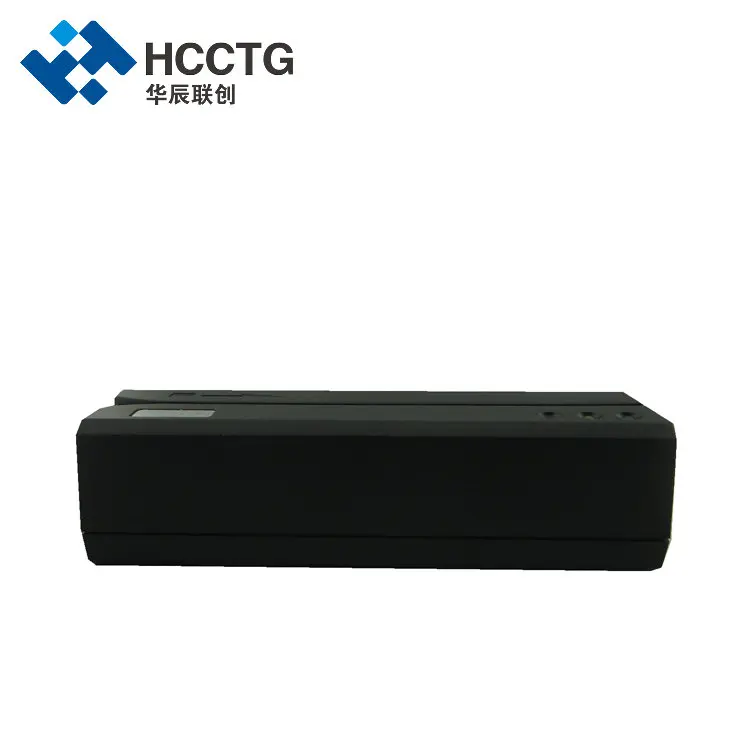

manual MSR magnetic insert card reader sdk/writer software--MS606General
It is ideal for access control, time keeping, banking, ID recognition & verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR606 reader/writer.
The MSR606 is designed to offer a reading and writing solution for high and/or low coercivity cards that will attractively complement an existing system.
Feature
Ÿ Read/Write magnetic stripe card complied with ISO formats
Ÿ Read/Write Drivers Licenses
Ÿ Read/Write High & Low Coercivity (300~4000 Oe)
Ÿ LED provides operational status
Ÿ Writes any track combinations of 210 and/or 75 bpi data density
Ÿ Program software for Windows 98/Me/XP /Vista
Specification
Power Reference
Power requirements
+24VDC +/- 5%
Consumption
Typical 350mA Max. 600mA plus for each writing track
Power supply
External switching power 24V/2.5A
Interface
Serial interface or USB
Ripple
50mVp-p or less
Dielectric strength
500 VDC for 1 minute
Performance
Read card
Track1
Track2
Track3
Bit per density
210 bpi
75/210bpi
210 bpi
Coercive force
Read/write 300-4000 oe Mag.card
Card thickness
0.76-1.2mm
Read speed
STD card
Jitter +/-15%
Amp. 60%
5-55ips
5-50ips
5-50ips
Write speed
5-30ips
Write jitter
Interval < +/- 10%, Sub-interval < +/- 12%
Error rate
Read < 0.5%
Write < 0.8%
Head life
Min. 1000K swipes for both read/write head
Physics
Body material
ABS 94V-0
Weight
Approx. 1.4kg
Dimension
212L x 64W x 63H mm
Swipe
Manual, single direction
Environment
Operation
-10 to 55oC, 10 to 85% humidity
Storage
-30 to 70oC, 10 to 90% humidity
Safety Approval
Certificate
FCC , CE , UL, cUL,ROHS
