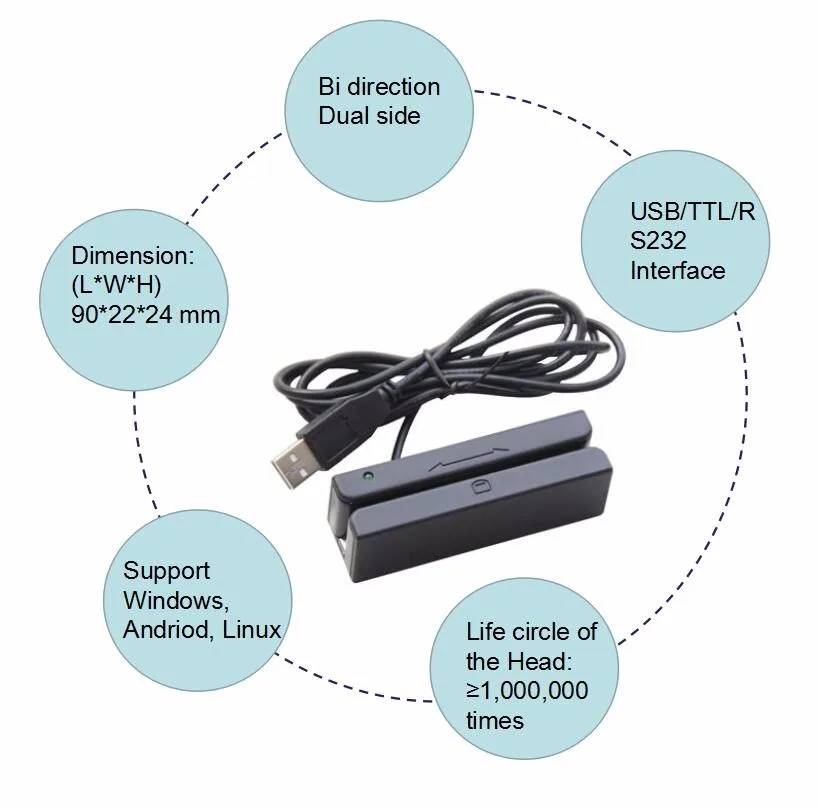

Factory original 90mm mini POS MSR Bi-direction 123 tracks USB magnetic card reader MSR003G


Factory original 90mm mini POS MSR Bi-direction 123 tracks USB magnetic card reader MSR003G

Feature:◆ Bi-direction
◆ Single track, dual track, three track
◆ Connected with computer or pos terminal
◆ Good Anti-interference, and excellent reading
◆ Operation response is combine of diode and buzzer, reading successfully when the buzzer ring
Specification:◆ Interface: USB, RS232C, TTL
◆ Encode Mode: F2F
◆ Standard: ISO7810,ISO7811-1/2/3/4/5, IBM, AAMVA, JIS-2
◆ Certification: FCC, CE
◆ Operation system: Windows, Linux, Android
◆ Data Format: according with the requirement of user
◆ Card Swipe Speed: 10-140cm/s
◆ Life circle of the Head: 》1,000,000 times
◆ Dimension: (L×W×H)90x22x24mm
◆ Coercive Force: 300-4000oe
◆ The Density of Magnetic Stripe:
Track 1--210BPI with max 76 characters
Track 2--210BPI with max 104 characters or 75BPI with 37 characters;
Track 3--210BPI with max 104 characters
Environment:
◆ Working Temperature: 0--40
◆ Working Humidity: 10%-- 90%RH
◆ Working Voltage: DC+5V ±5%
◆ Working Current: ≤50mA
◆ Storage Temperature: -20 --60
Packing List
Bi-direction 123 tracks USB magnetic card reader MSR003G
Item
Inner box(cm)
Outer Carton(cm)
N.W/G.W.(kg)
Qty/Ctn
MSR003G
12*9*4.5
41*34*47
6/8
50pcs/ctn
