Product Description





| Contact&Contactless mPOS TR310 | ||
| Performance Characteristics | CPU | ARM Cortex |
| Display | Black and white,backlit 128*64 full graphic | |
| RAM | 256KB | |
| ROM | 1MB | |
| Physical Characteristics | Dimensions (LxWxD) | 89.7mm*59mm*14.8 mm |
| Weight | 75g (battery included) | |
| Keyboard | 1. Number keys*10 2. Power on/off key 3. Function button*5 | |
| Promting Mode | 4 LEDs,Buzzer | |
| Data Communication | Bluetooth | Bluetooth 4.0 with BLE |
| USB | Micro USB | |

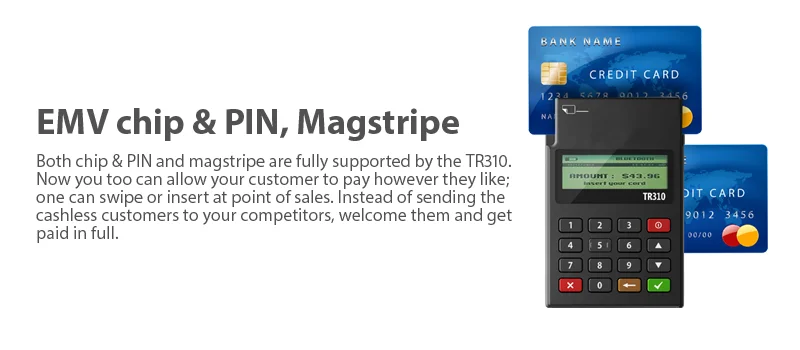

| Transction& Payment | Magcard | ISO 7811,JIS2 bi-directional |
| Smart Card | EMV L1&L2,PBOC L1&L2 | |
| Contactless (Optional) | QPBOC L1&L2,EMV Contactless L1 | |
| Key management | MK/SK,Fixed Key,Dukpt | |
| Encryption Algorithum | RSA/TDES/DES | |
| PIN Transaction | PCI-PTS 4.1 | |
| Power | Battery | Rechargeable 3.7V 250 mAh lithium battery |
| User Environment | Operating Temp | -5 ~ 45 |
| Storage Temp | -20 ~ 55 | |
| Humidity | 5 ~ 85% (non condensing) | |
| Others | SDK&API | Android, iOS, Windows, Linux |
| Accessories | USB Cable | |
| Certification | EMV L1&L2 Contactless EMV L1 PCI PTS 4.1 Master TQM Paywave Visa ready Paypass Master card mpos China UnionPay approved CE FCC RoHS Bluetooth BQB | |
| Warranty | 1 year factory warranty for main device; 6 months for accessories |
