Product Detail

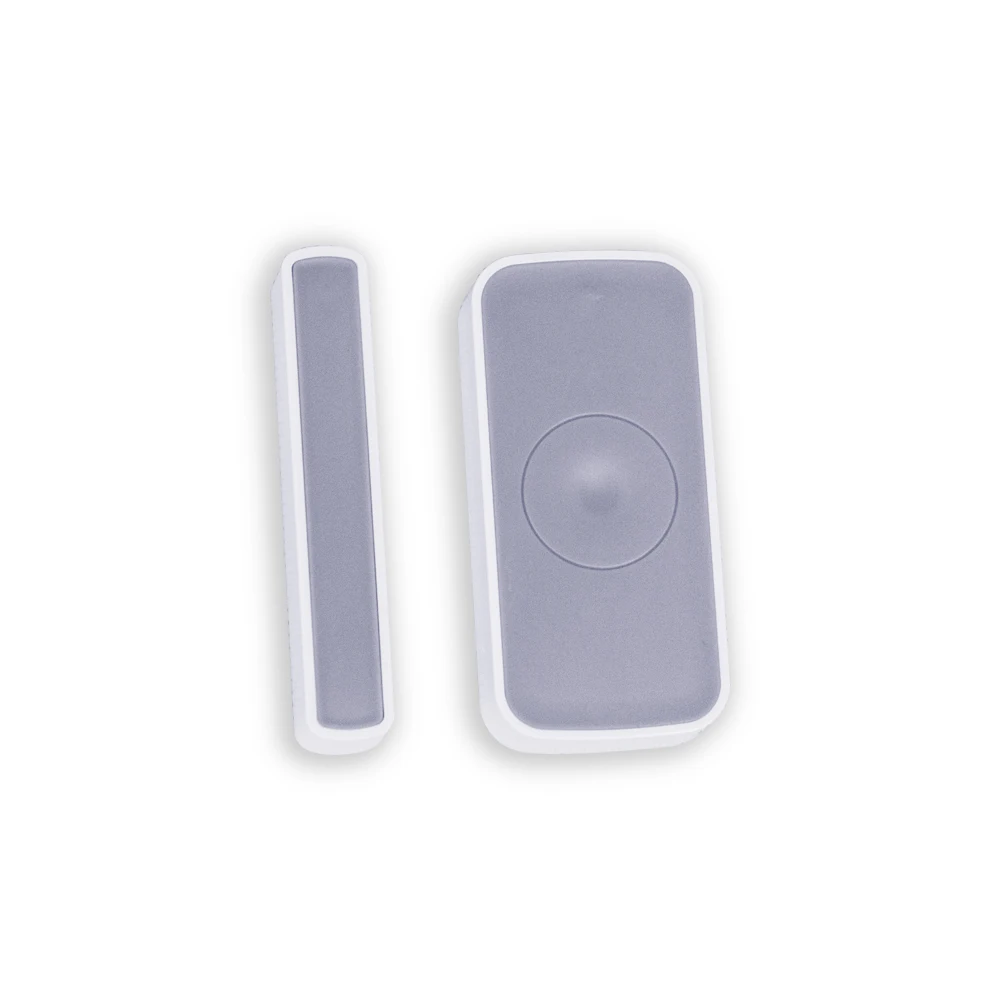

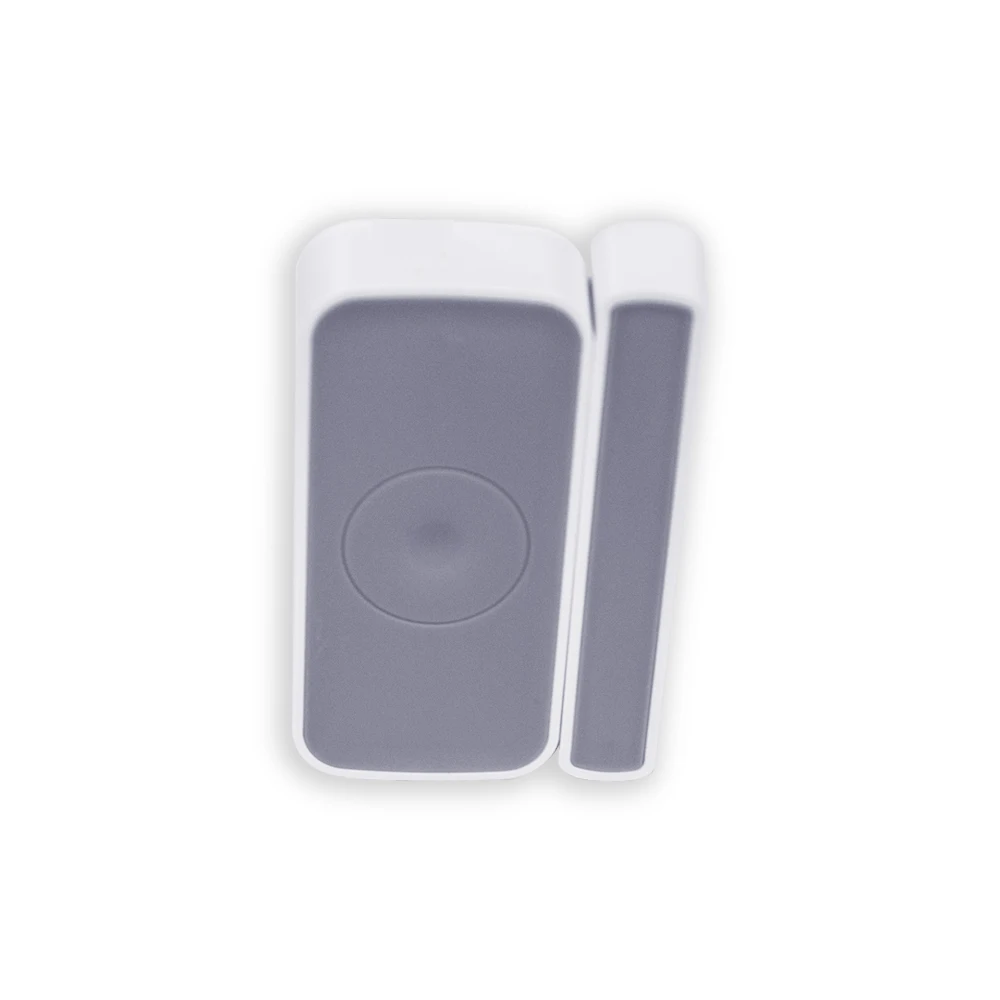

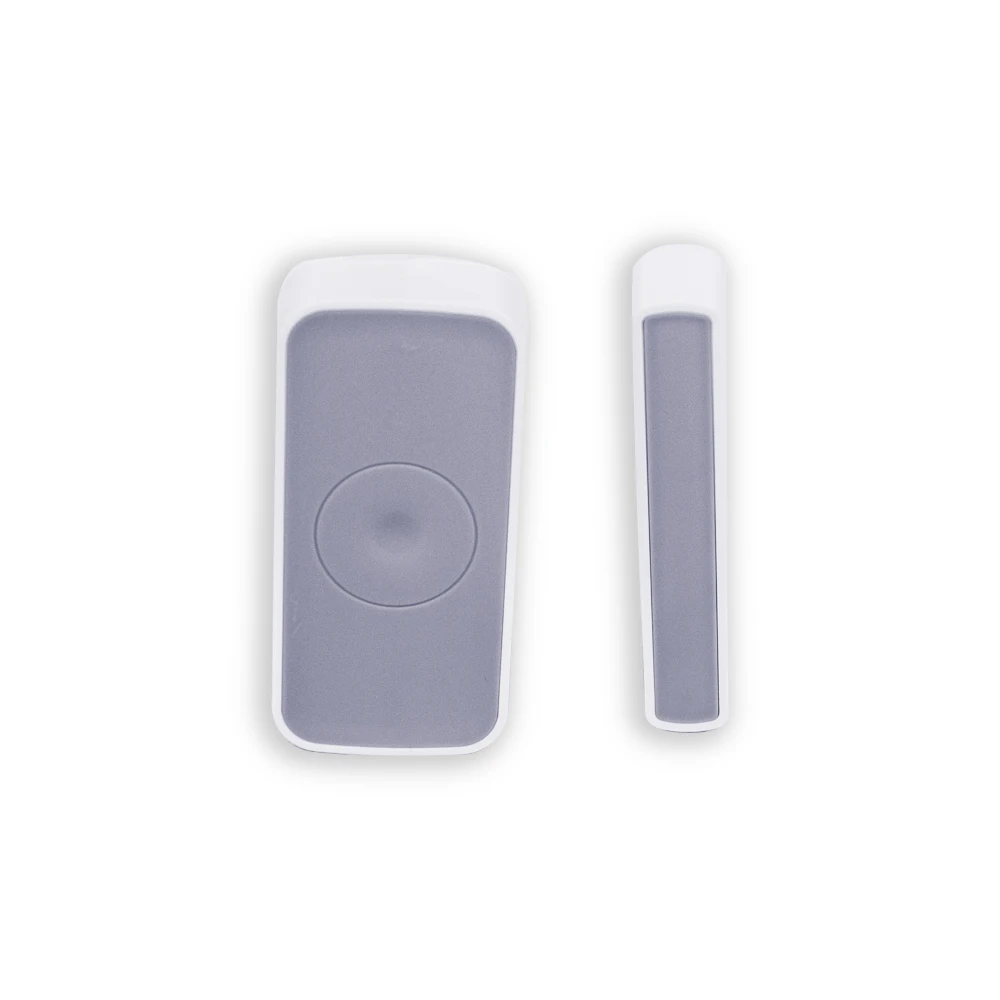

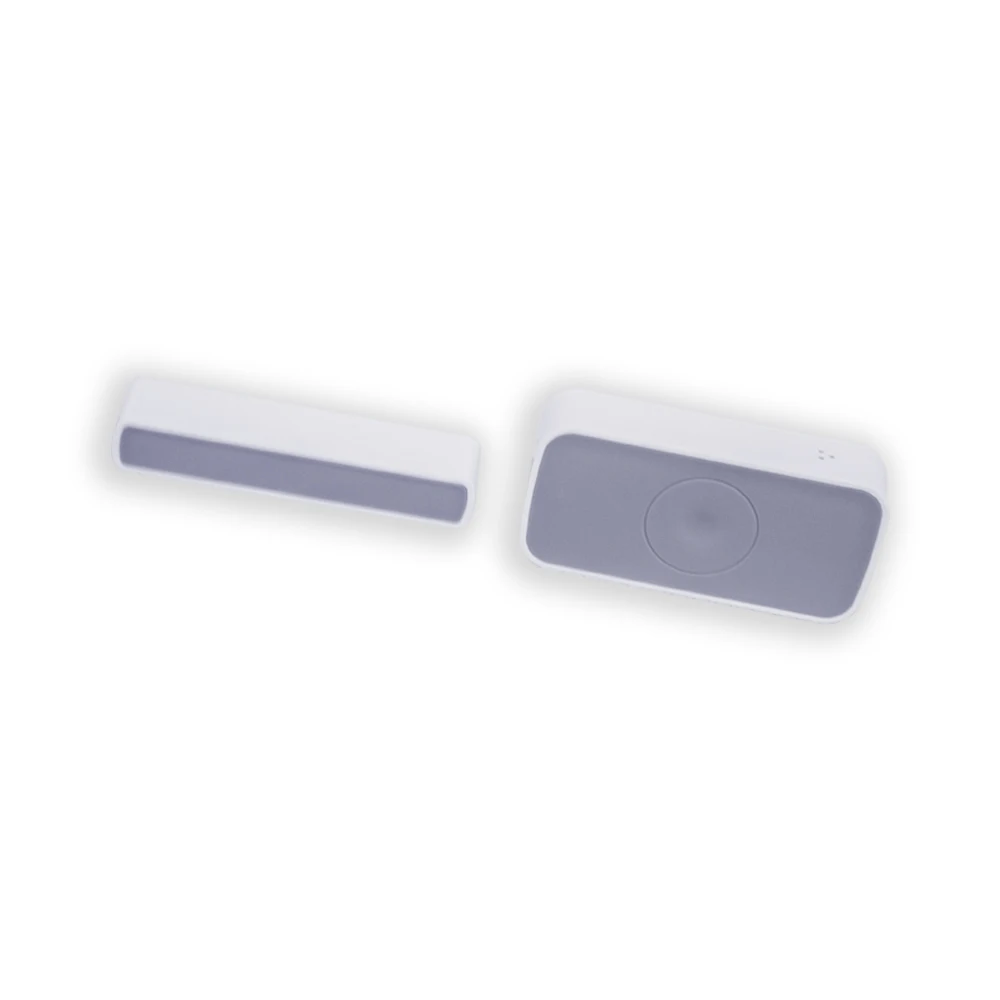

ZigBee smart door sensor uses the ZigBee technology which is low consumption ,low data rate ,low complex rate wireless , and low complexity of wireless network technology, as well as high reliability and stability. The probe and the magnet closing to get to know the doors and windows" separate switch state. With double sensor design , it makes installation more flexible and adaptability stronger , which can accurately detect door switch state and real-time detection.
Main Features

Technical Parameter
Power supply: DC 3V
Standby Power:9uW
Working Frequency:2405-2480MHz
Receiving Sensitivity:-97dBm
Communication Distance:150m
Network Distance:100m
Protocol:ZigBee 3.0
Working Temperature Range:-10~+55
Detection Range: >15mm
Detection Size: 76*36.6*16.5mm
Magnet Size: 76*13.9*16.5mm
Support customer print LOGO &customized box OEM LOGO Product Show


Our Clients

Our Team

Exhibition

Factory & RD Team



Troubeshooting
Problem
Solution
How to make devices to network with gateway
Press the center button on gateway to allow joining in, use pin to long press device reset button until LED light flashes rapidly
How to exit from the gateway
Long press device reset button until LED light flashes.
Want to have detailed manual for every device
Go to http://www.brimate.com/download/ to download user manual.
