Product Name
Zigbee Remote Control
Wireless Connectivity
ZigBee 2.4GHz IEEE 802.15.4
RF Characteristics
Operating frequency: 2.4GHz
Range outdoor/indoor: 100m/30mAntenna: Internal PCB antenna
ZigBee Profile
Home Automation Profile (optional)
ZigBee Lighting Link Profile (optional)
Battery
500mAh rechargeable battery or 2 x AAA batteries (1 year battery life)
Dimensions
46(L) x 135(W) x 12(H) mm
Weight
53g
Certification
CE
Working Environment
Temperature: -20C ~ +50C
Humidity: up to 90% non- condensing
Storage temperature
-20F to 158F (-28C ~ 70C)
Power Supply
Type: lithium battery
Voltage: 3.7 V
Rated capacity: 500mAh ( The battery life is one year )
Power consumption: Standby Current ≤44uA Working current ≤30mA

Smart Home Automation Mini
Wireless Zigbee Remote Control
The RC204 ZigBee Remote Control is used to control up to four devices
individually or all. Take controlling LED bulb as an example, you can use RC204 to control the following functions:
* Turn the LED bulb ON/OFF.
* Individually adjust the brightness of the LED bulb.
* Individually adjust the color temperature of the LED bulb.
Details Images

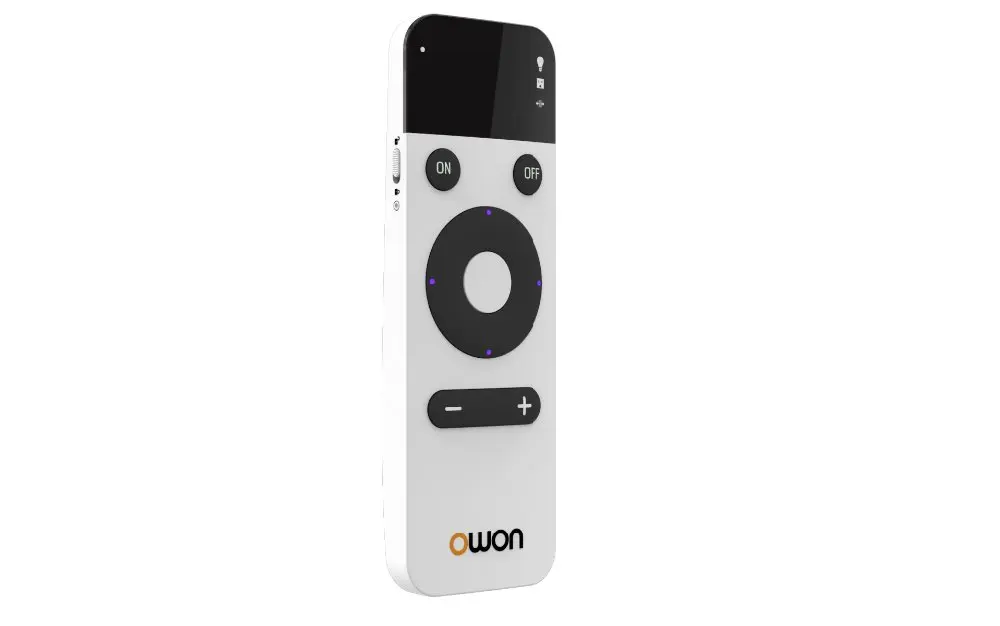

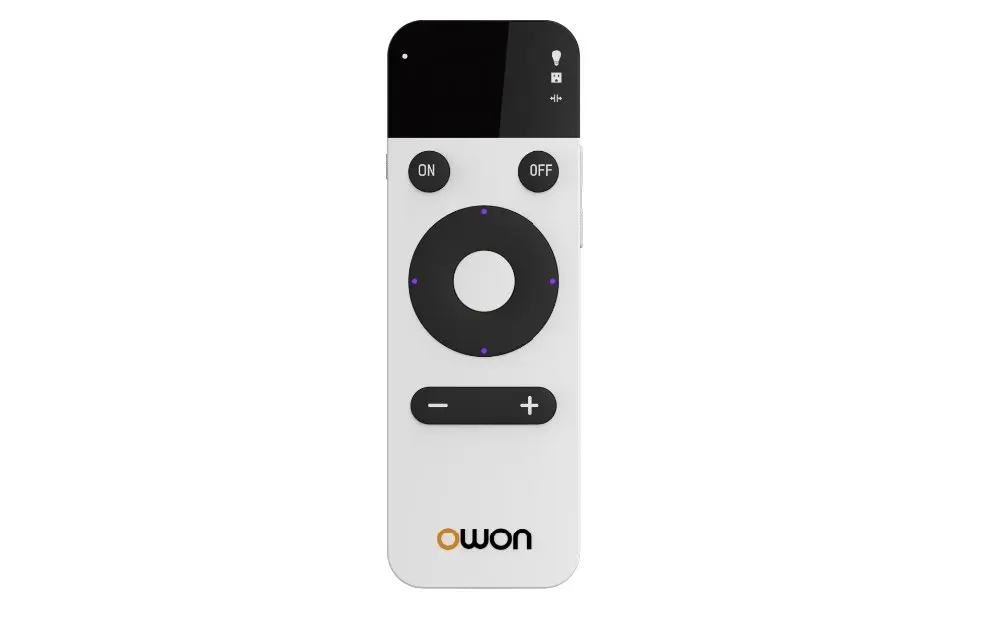

Smart Home Automation Mini Wireless Zigbee Remote Control



Product Usage

Main Features
* ZigBee HA 1.2 compliant
* ZigBee ZLL compliant
* Up to 4 On/Off dimming control
* Lights status feedback
* All-lights-on, All-lights-off
* Rechargeable battery backup
* Power saving mode and auto wake-up
* Mini size
