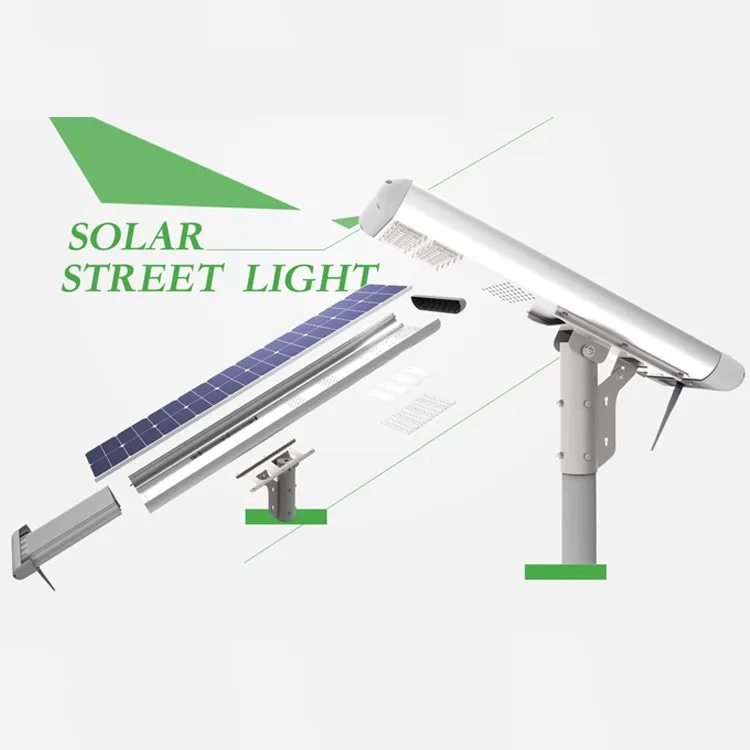

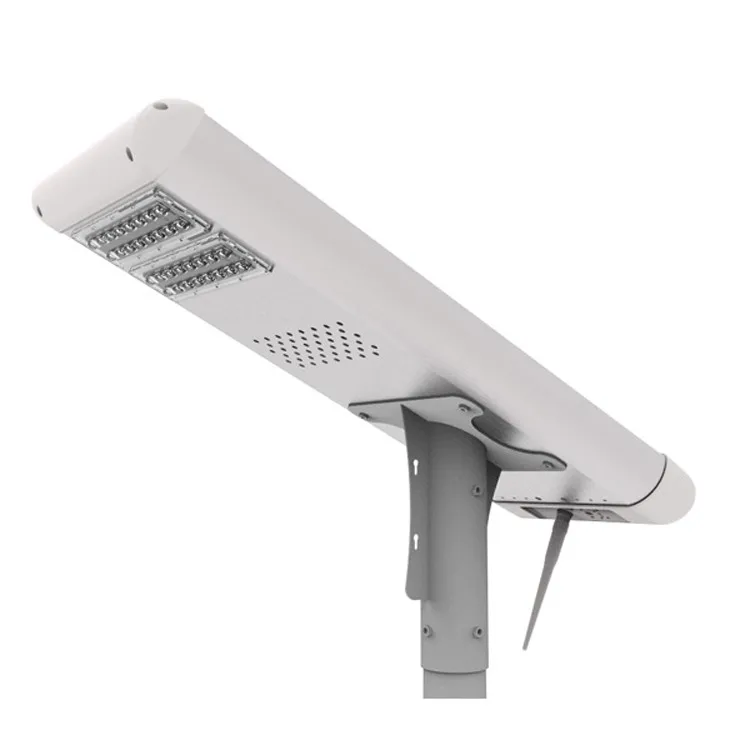

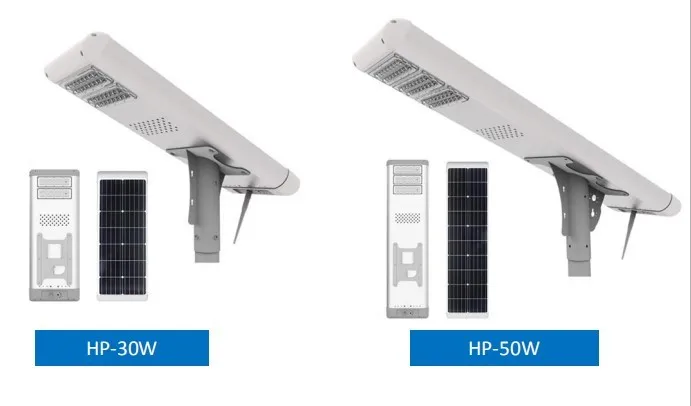

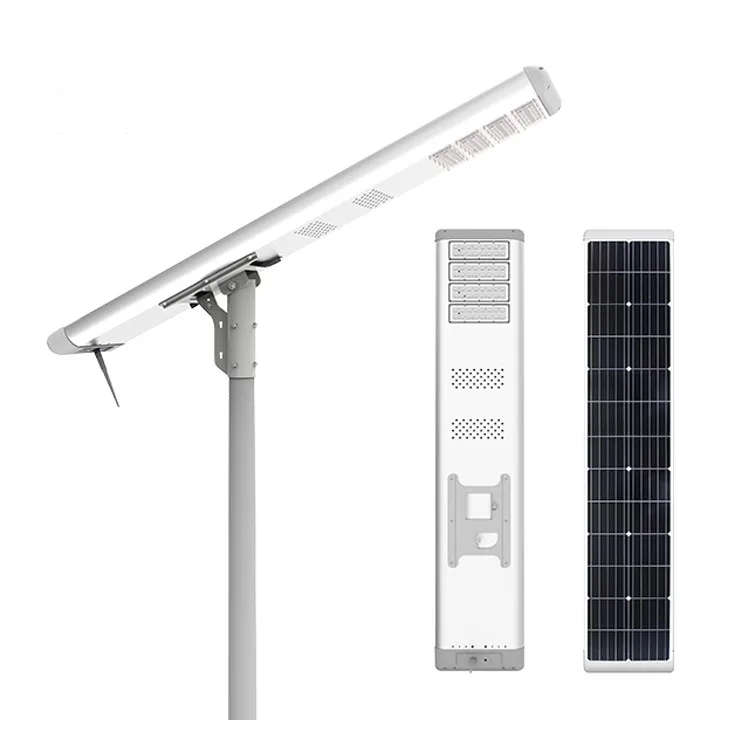

Product ShowZIGBEE Outdoor WIFI Function 30W 50W 80W All In One Solar Street Light
.

Product introduction As a outdoor lighting fixture, the Solar Light is powered by solar energy and designed to offer outstanding quality by utilizing A-class LED beads, integrated optical LED lens, high efficiency mono solar panel, powerful lithium battery, self-developed MPPT controller and patent ZIGBEE network system.
Operation principleThe Solar Light is a revolutionary product by utilizing Photovoltaic effect. It is designed to constantly absorb solar energy in daylight and convert to electricity, the intelligent controller could precisely control the charge, discharge and well preserve electricity into the lithium battery. And start to illuminate, which is powered by the lithium battery, once the illuminance of ground reduced to 15 lux in night time, or solar panel voltage drop to 5V below. The intelligent controller not only protects the battery from over-charging, over-discharging, but also can control the light switch-on, the time of switch-on and optimize the brightness effectively according to the real-time environment.
Model

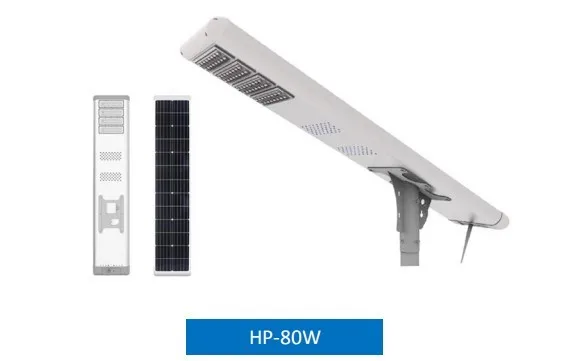

HP-80W
Rated power
80W
Lumens
8000-10000LM
Solar panel
120W/18V
Lithium battery
LifePO4 battery,825WH
Install height
9-10M
Spacing
30-35M
Color temp.
6500K
waterproof IP67
Work temp.
-15 ~ +70
Pole diameter
50-80mm
Timing mode
1Hr50% ,4Hr100%,3Hr50%,4Hr25%
CRI
>85
Charge time
6-8H
Lighting time

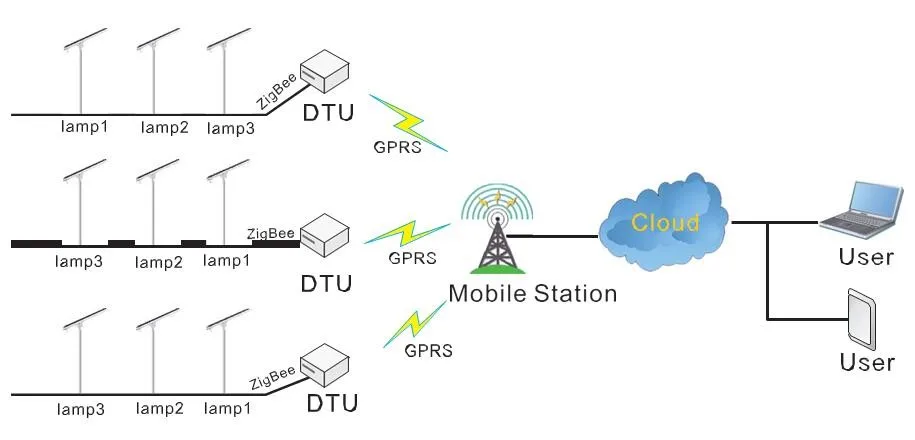

Zigbee proprietary wireless network allows remote management and control of lights using internet or GSM. One gateway(DTU per 200 lights and all the gateways report to a central control room)
Product FeatureLONG-LASTING PERFORMANCEAnti-aging technology maintains optimum
Performance for 25years
High encapsulation performance
TESTED IN EXTREME CONDITIONS
Salt mist and Ammonia corrosion resistantUnique design to achieve 8000pa loading
MONO SOLAR CELL
Guarantees better performance in weak light
3-busbar cell technology reduces the series resistance and helps to boost power output in the module.
LED MODULE
A-CLASS LED bead: the advanced lighting technology brings a higher luminous intensity, lower thermal resistance and a greater luminaire stability. this in turn improves the longevity of the LEDs promising more long term system reliability. Luminous Efficiency>160Lm/W. Famous brand LED chip. 3535LED.

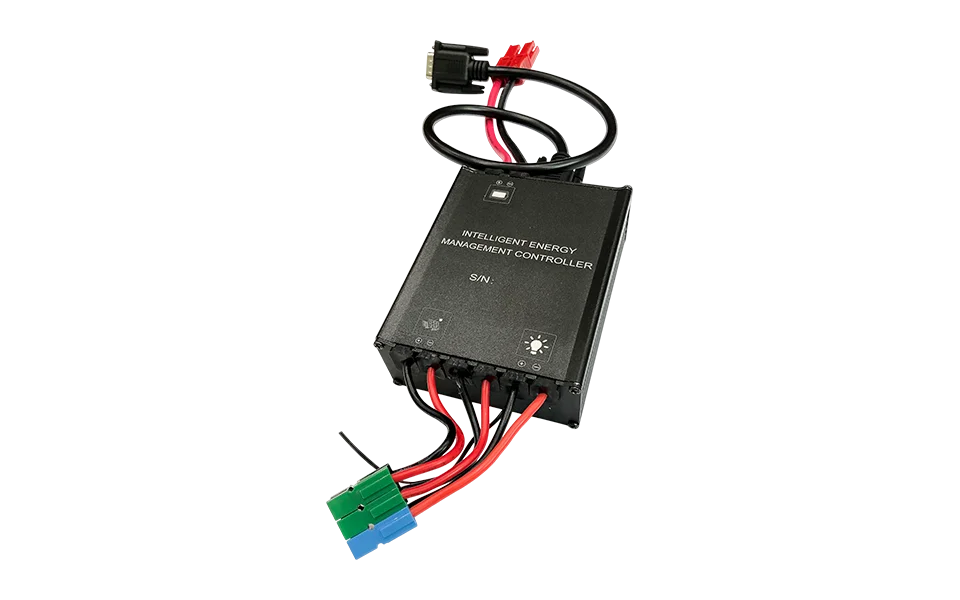

CORE TECHNOLOGYPatent design MPPT controller by our R&D team
Charging efficiency >95%
Maximum Power Point Trackin
Multiple work mode function
Over-charge, over-discharge, over-heat protection.

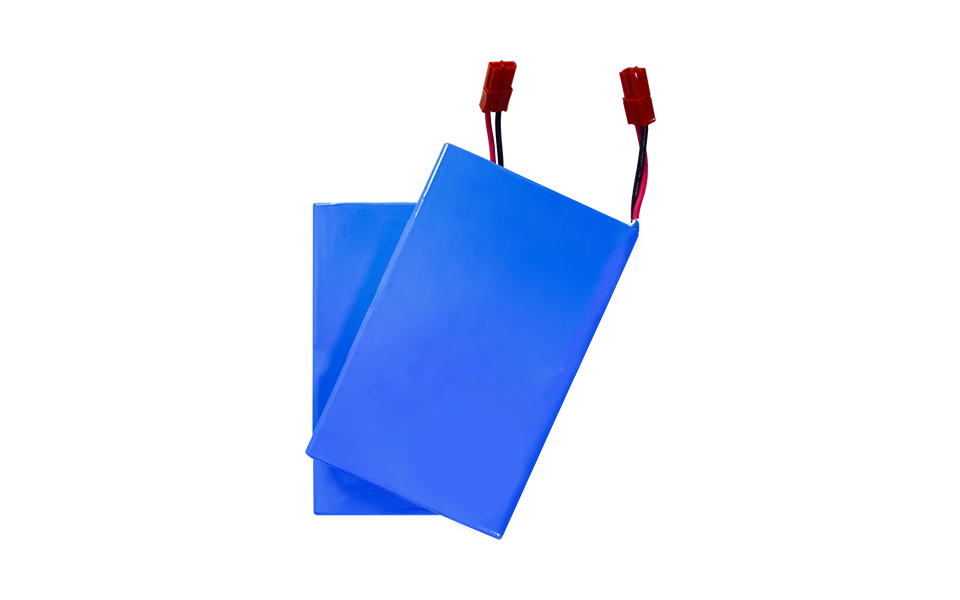

LONG LIFETIME
Newsky uses new-generation LiFePO4 Lithium batteries which offers 3 times more storage and power capacity versus conventional Lead Acid batteries. Lithium batteries are also able to discharge to an incredible 90% without any damage. Lifespan over 5years. Comply with IEC61233.

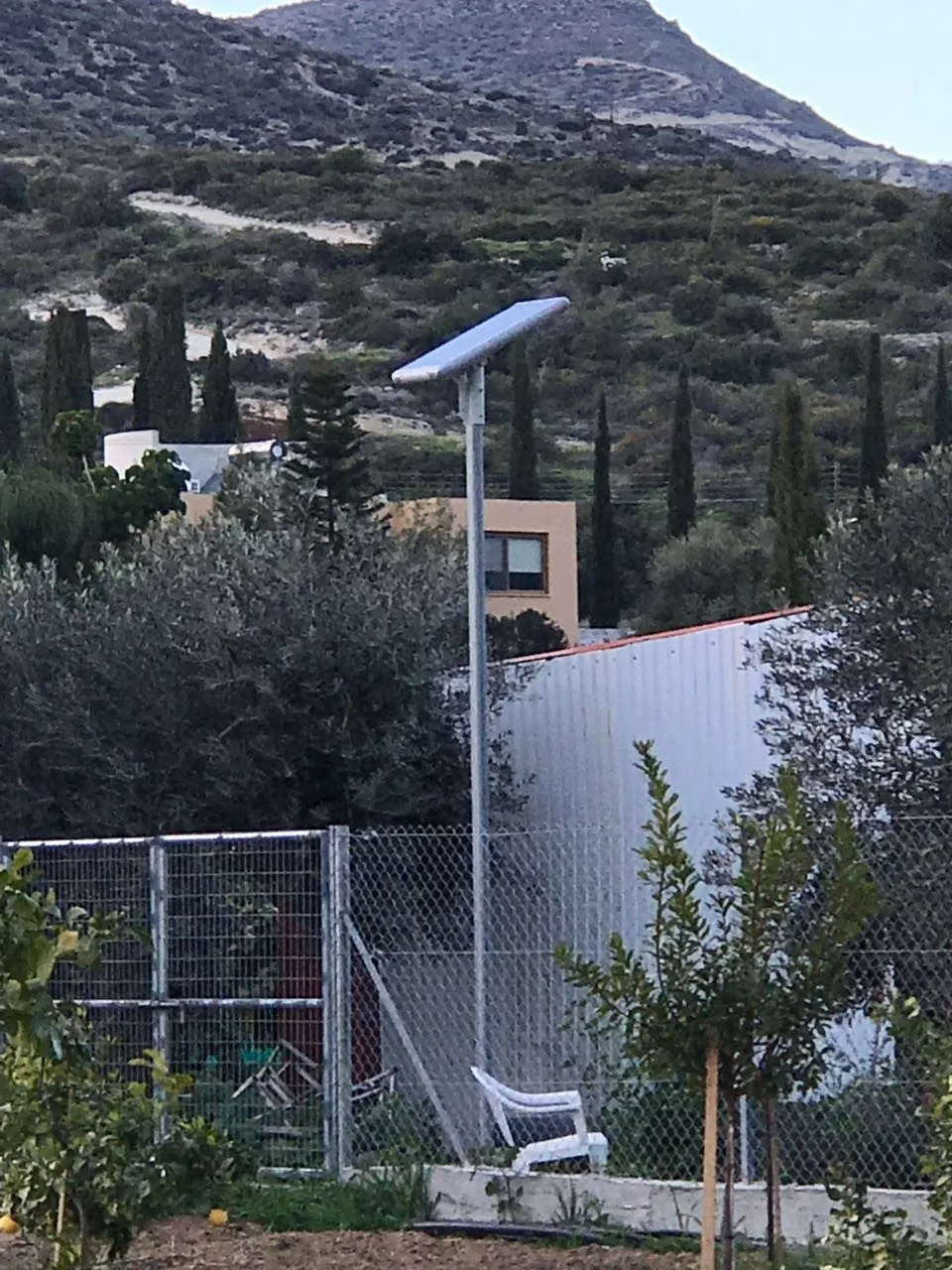

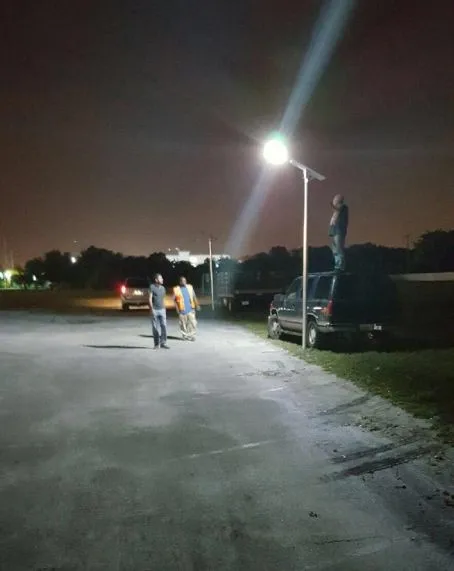

Installation

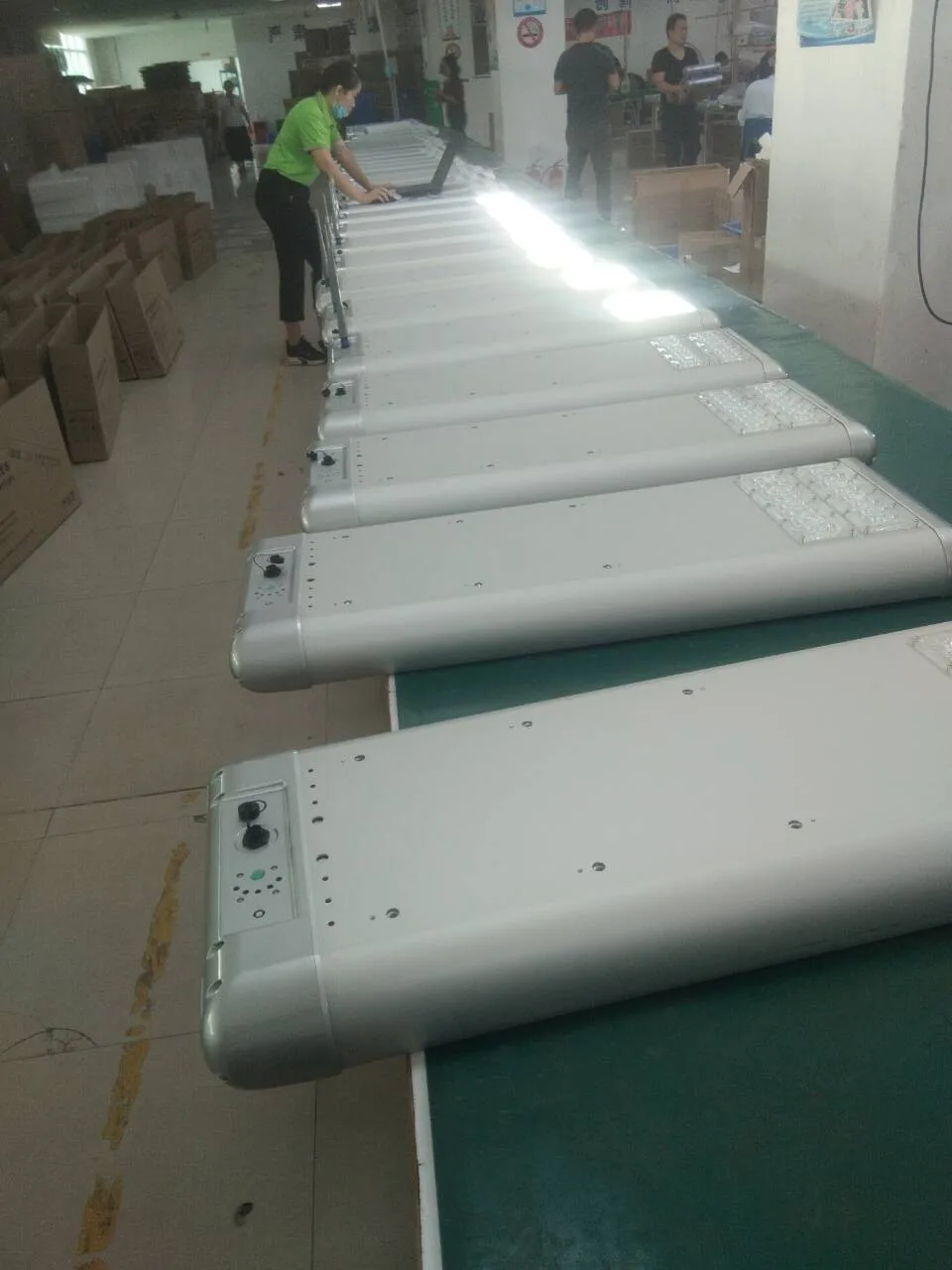

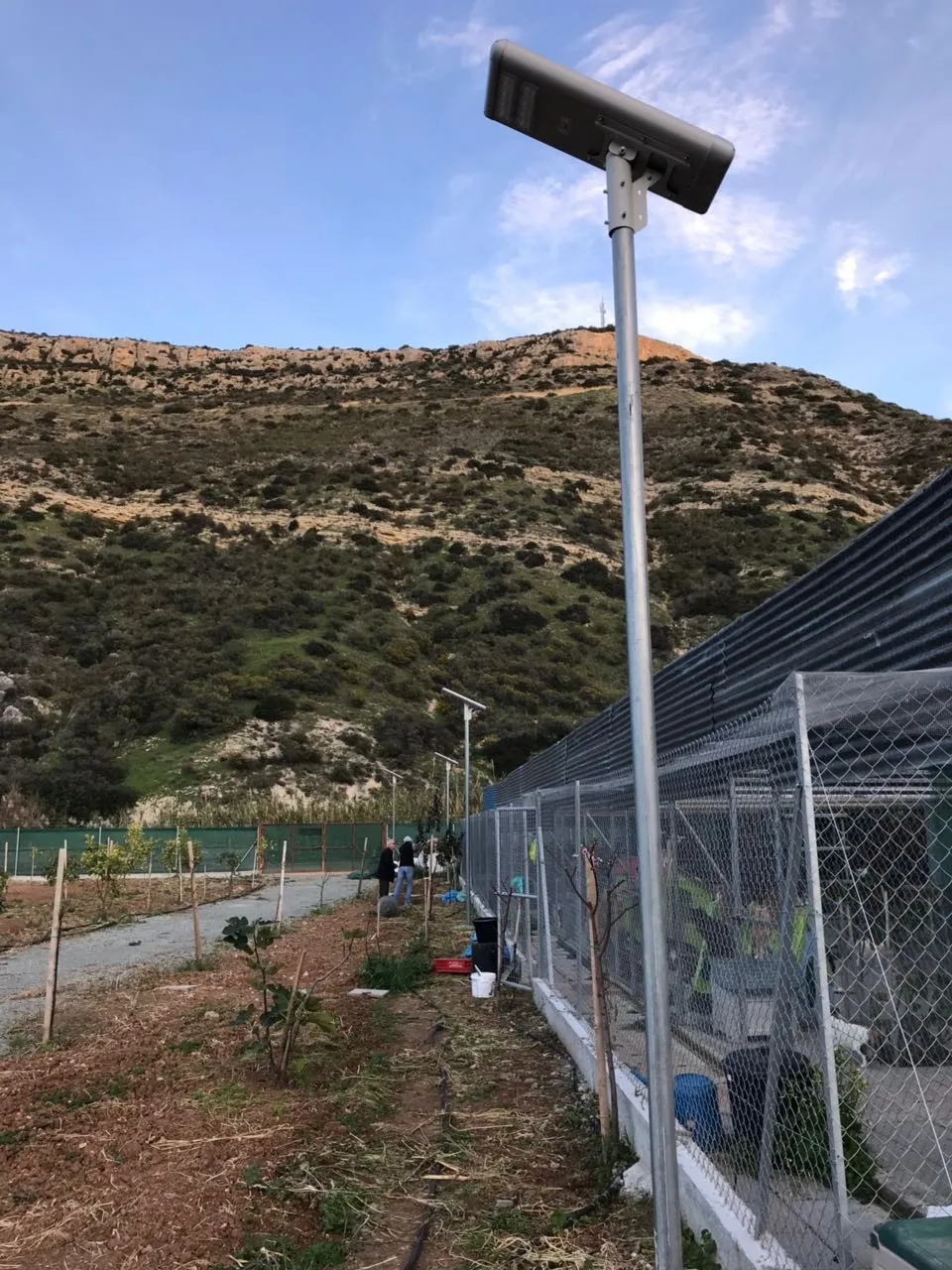

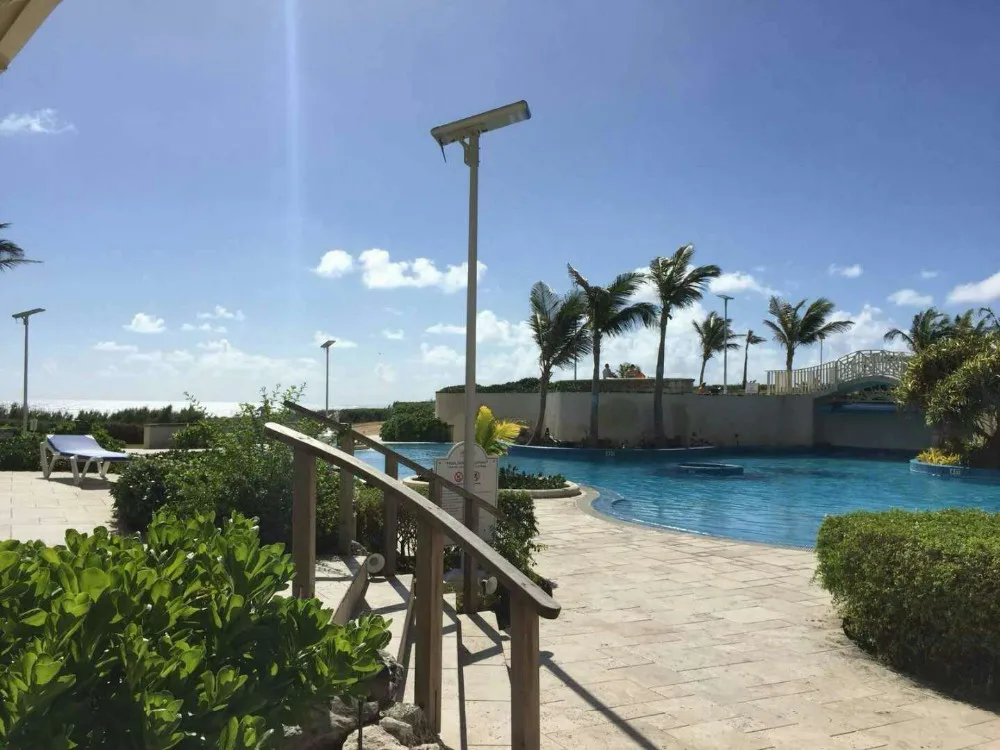

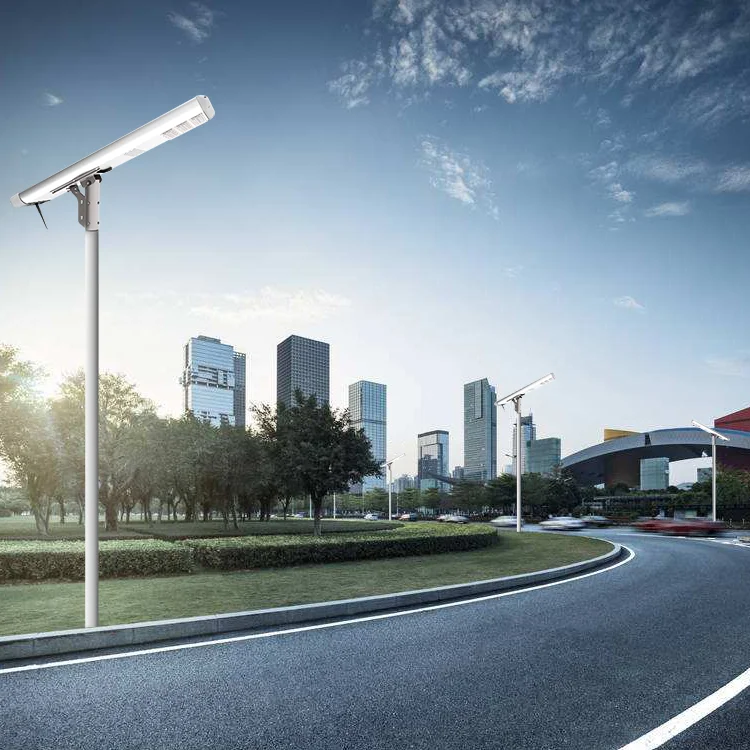

ApplicationsWorking Factory
