Zigbee home automation IOT sensor ZHA1.2 water detection water leakage This product adopts ZigBee wireless module. Super low power consumption circuit design makes longer battery lifespan. Separate design of body an sensor, efficiently prevent the influence resulted from high humidity. High Precision and sensitivity, it is applicable for Basement, machine room, hotel, water tower, pool, swimming pool, solar, kitchen, bathroom and other leaks or water over flow detection.

Main FeaturesPower:3V Battery, 1 year use life
Size:60* 30* 11.8mm
Features:
1. Low consumption Zigbee moudle.
2. Zigbee HA1.2 protocol
3. Low consumption design, long battery use life
4. Body and transducer separately design, prevent high humidity environment effect on using.
5. low battery warning
Specification
Working voltage DC3V (1*CR2032 button cell)
Static Current ≤5uA
Alarm Current ≤30mA
Networking ZigBee Ad-hoc Network
Wireless networking distance <100m (open area)
Working temperature -10 to +50°C
Working humidity 95% RH
Dimension 60 * 30* 12.5 mm
Sensor dimension 28.3* 26.5* 12.2mm

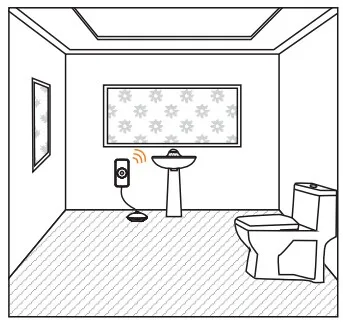

InstallationNotice!
1.Install water linkage detector at easy linking area.
2.Dont install water leakage detector at position of have rainwater, lampblack, water vapor., etc
3.Dont install water linkage detector at water immersion position.

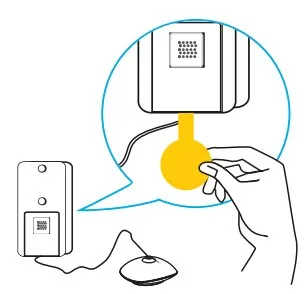

Step 1 :
Remove battery insulation film to power on.

Step 2:
Open app and click "Add" button to enter networking mode.

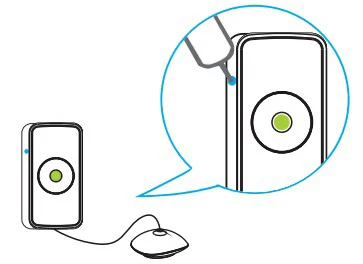

Step 3:
Follow APPs prompts, press networking key for 2 seconds until see green LED blinking fast. It will prompt on APP when add device successfully. (Blue LED: networking key, Green LED: networking status indication)

Step 4:
Tear off the gummed fi lm,stick the equipment in the required area.

Step 5:

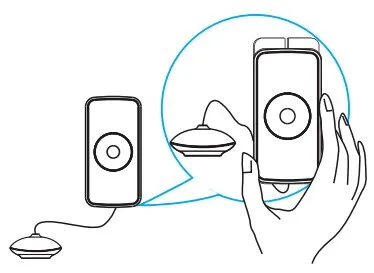

Insert detector body to fixed hang board.

APP Interface
