Zigbee HA1.2 magnetic security wireless door sensor for home intruder system
Specifications
Working Voltage 3V DC
Static Current <5uA
Alarm Current < 30mA
Detecting Distance >30mm
Networking
Zigbee Ad-Hoc Network
Working Network Distance
100M(in the open Area)
Working Temperature
-10-50
Working Temperature
5% - 95%
Detector Dimension
60*30*11.8mm
Magnetic Body Dimension 65*13*12.5mm
Features:
- Zigbee wireless network door window sensor for home security alarm system
-Low power consumption zigbee module
-Standard ZIGBEE ZHA protocol adopted
-Super low power consumption circuit design, makes a longer battery life
-Double reed switch design, suitable for different door
-Door open or closed recognizable
-Low power indication and report
Introduction:
This is the Zigbee Wireless Magnetic Switch Detector. It adopts low consumption Zigbee wireless module, long battery use life. Detect door or windows status by closing or opening magnet part with detector. Designed with double reeds, it can be used in different direction open doors or windows, easy installation and flexible to use. It is suitable for residence, villa, houses, workshop, Mall, Warehouse, office building, Bank., etc for anti-burglar alarm.

More Details Of Our Product:


How to useStep 1 :
Remove battery insulation film to power on.

Step 2:
Open app and click "Add" button to enter networking mode.

Step 3:
Follow APPs prompts, press networking key for 2 seconds until see green LED blinking fast. It will prompt on APP when add device successfully. (Blue LED: networking key, Green LED: networking status indication)

Step 4:
Please install detector align with magnet part. The spacing between detector and magnet part should be less than 15mm (the magnet part can be installed at left or right of detector)

Step 5:

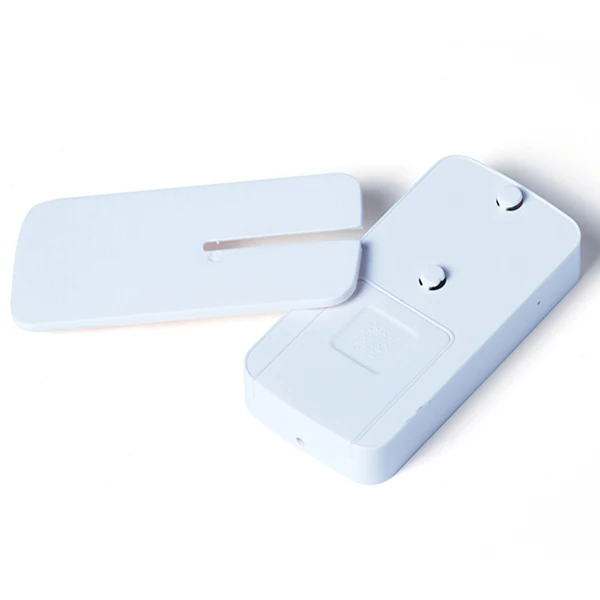

Tear off double tapes back film, fix detectors hang board and magnet part at suitable position. (As picture, detector should be installed on door frame or fixed position. magnet part can be installed at movable part)

Step 6:
Insert detector to fixed hang board.
