Zigbee battery PIR motion sensor Fbee inside 2018 NEW

IoT / ZigBee

Product Detail

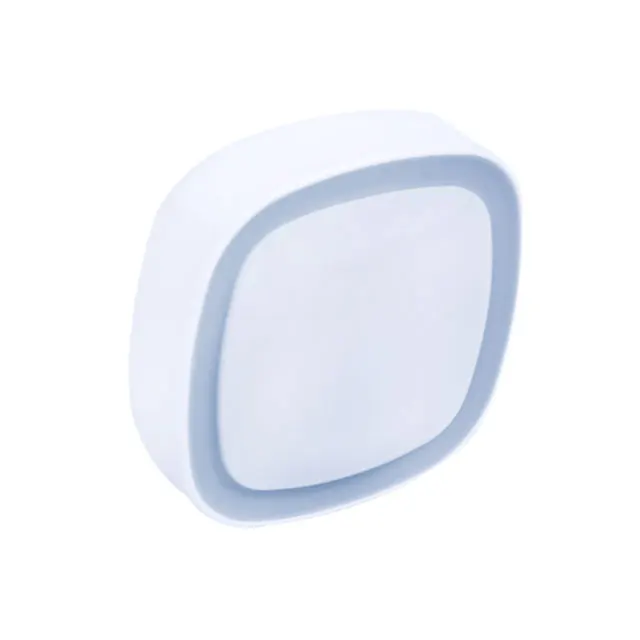

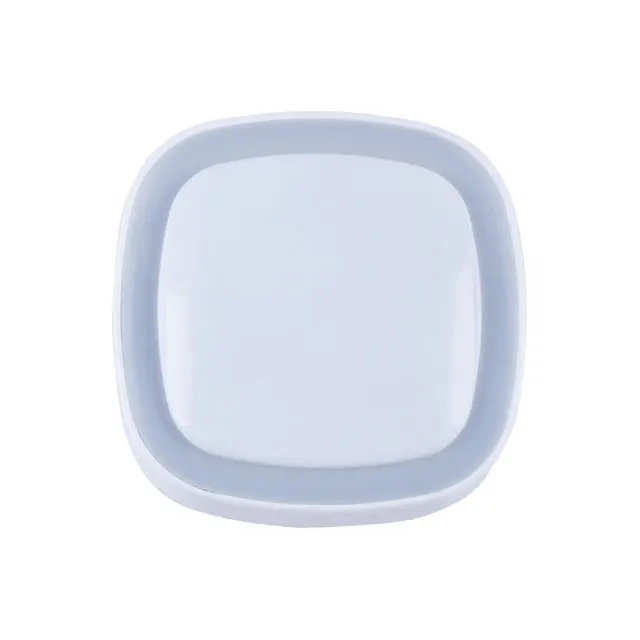

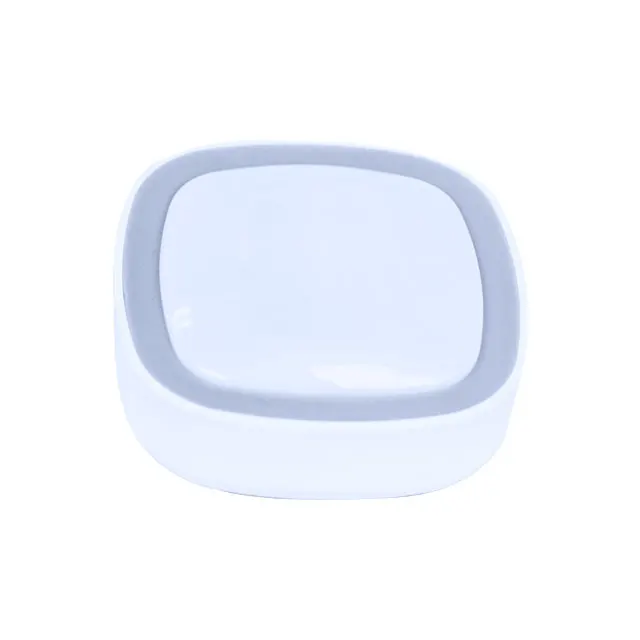

ZigBee PIR Motion Sensor
This product is an infrared motion sensor based on ZigBee technology. The sensor acts as an
End Device with the low power consumption. When it detects a movement, it reports the message to APP.
Main Features
l Device type: Motion Sensor
l Protocol based on ZigBee HA
l Wide angle detection
l Simple operation and device configuration
Technical Parameter
Power Supply: DC3V(1x CR 2450 Button Battery)
Consumption Standby: ≤16μA
Alarm:≤30mA
Protocol: IEEE 802.15.4/ZigBee HA 1.2
Frequency 2405~2480MHz
Detection Angle 110°
Installation Height: 2.1m
Detection Range: 9~12m
Operating Ambient Temperature:-10~+50
Humidity:≤95%RH
Product Show
Support customer print LOGO &customized box OEM LOGO
Zigbee battery PIR motion sensor Fbee inside 2018 NEW - ANKUX.COM

Zigbee battery PIR motion sensor Fbee inside 2018 NEW - ANKUX.COM

Our Clients
Zigbee battery PIR motion sensor Fbee inside 2018 NEW - ANKUX.COM

Our Team

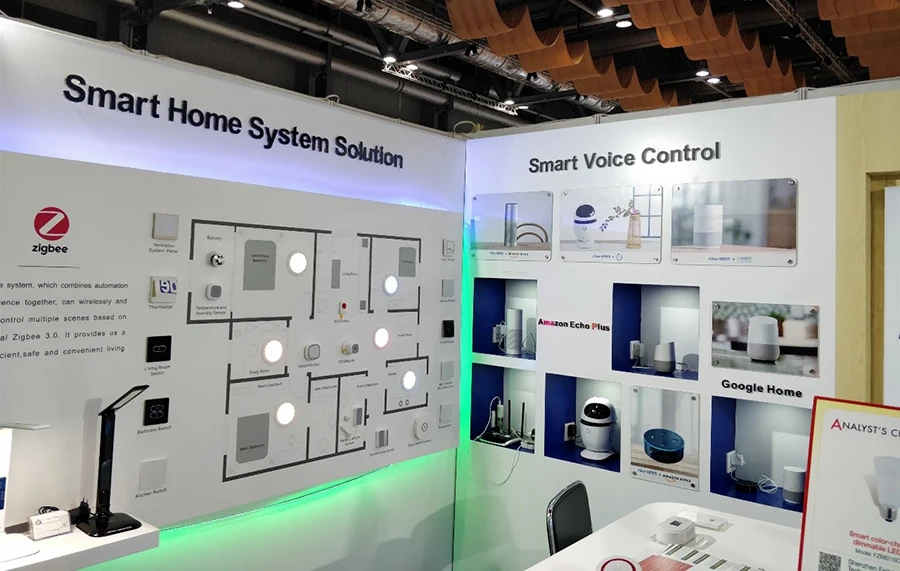

Exhibition
Zigbee battery PIR motion sensor Fbee inside 2018 NEW - ANKUX.COM

Factory & RD Team
Zigbee battery PIR motion sensor Fbee inside 2018 NEW - ANKUX.COM

Troubeshooting
Problem
Solution
How to make devices to network with gateway
Press the center button on gateway to allow joining in, use pin to long press device reset button until LED light flashes rapidly
How to exit from the gateway
Long press device reset button until LED light flashes.
Want to have detailed manual for every device
Go to http://www.brimate.com/download/ to download user manual.
