wireless temperature Humidity sensor data logger lora module
GSX4-MS-4G is a Modbus data collector with temperature, analog, pulse and digital channels.
Data is delivered via 4G mobile network.
GSX4-MS-4G uploads Modbus data via 4G mobile network.
All channels can be configured with alarm levels.
[detail]

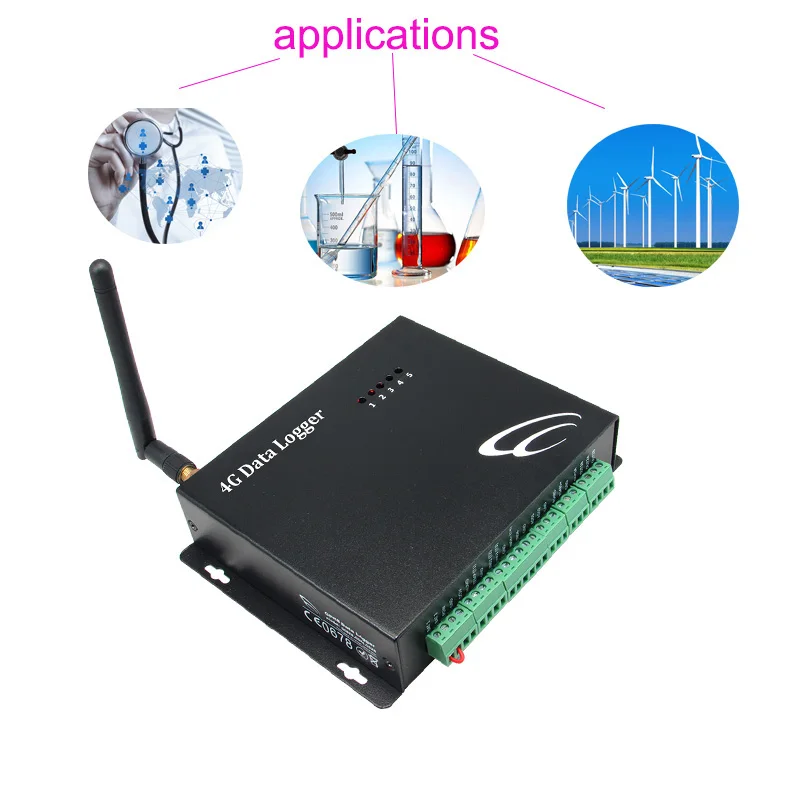

It is a 4G Modbus Data Logger with programmable I/O.
4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.
Overview:
* 2 Temperature Sensors (max.)
* 1 Humidity Sensor
* 2 Analog Channels (max.)
* 3 Digital Inputs
* 3 Pulse Channels
* 2 Relay Outputs
* Modbus RS485 Interface
* 8 Modbus Data Registers
Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.
Features
1) Real Time 4G and SMS Data Upload
2) Integrated 16 bit MCU & Siemens 4G Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup
Temperature Sensors
2 Temperature Sensors (max.)
Power Input
9 ~ 15VDC
Humidity Sensor
1 Humidity Sensor
Digital Channel
Alarm Dry Contact
Analog Channel
2 Analog Channels (max.)
Pulse Channel
On/Off Switching
Digital Inputs
3 Digital Inputs
Industrial Protocol
Modbus
Pulse Channels
3 Pulse Channels
Communication Protocol
SMS
Relay Outputs
2 Relay Outputs
temperature range
-55~125
modbus interface
RS485 Interface
Accuracy
+/-0.5
modbus
8 Modbus Data Registers
Alarm Trigger
Digital Alarm / AD Level High or Low / Power Loss
Display Type
Analog and Digital
Signal Type
4~20mA or 0~5VDC
Free Software:
[1] Setup software is bundled for routine configuration via USB port locally
[2] Centre software is also provided for receiving data via 4G mobile network.
[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display

[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile network
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
