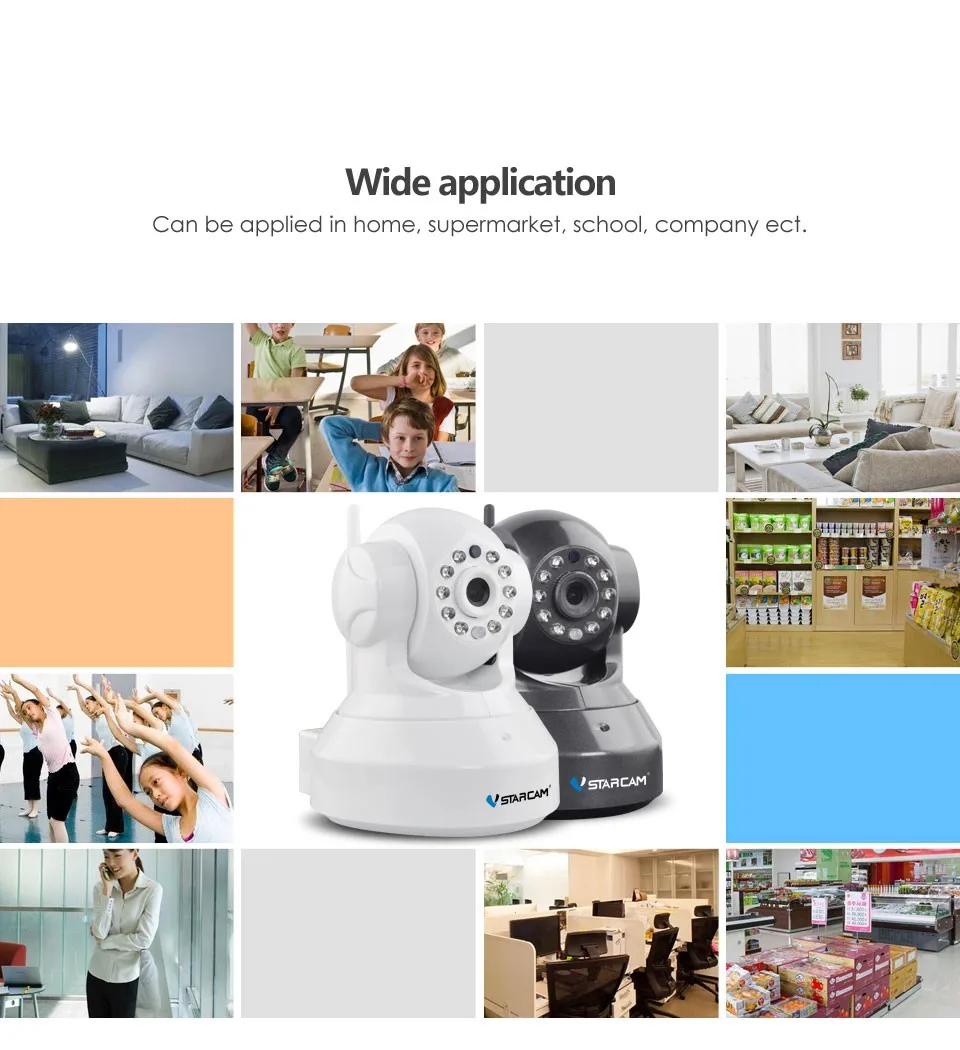

Wireless IR-Cut Night Vision Indoor zigbee ip camera
Functions of zigbee ip camera
Pant-tilt

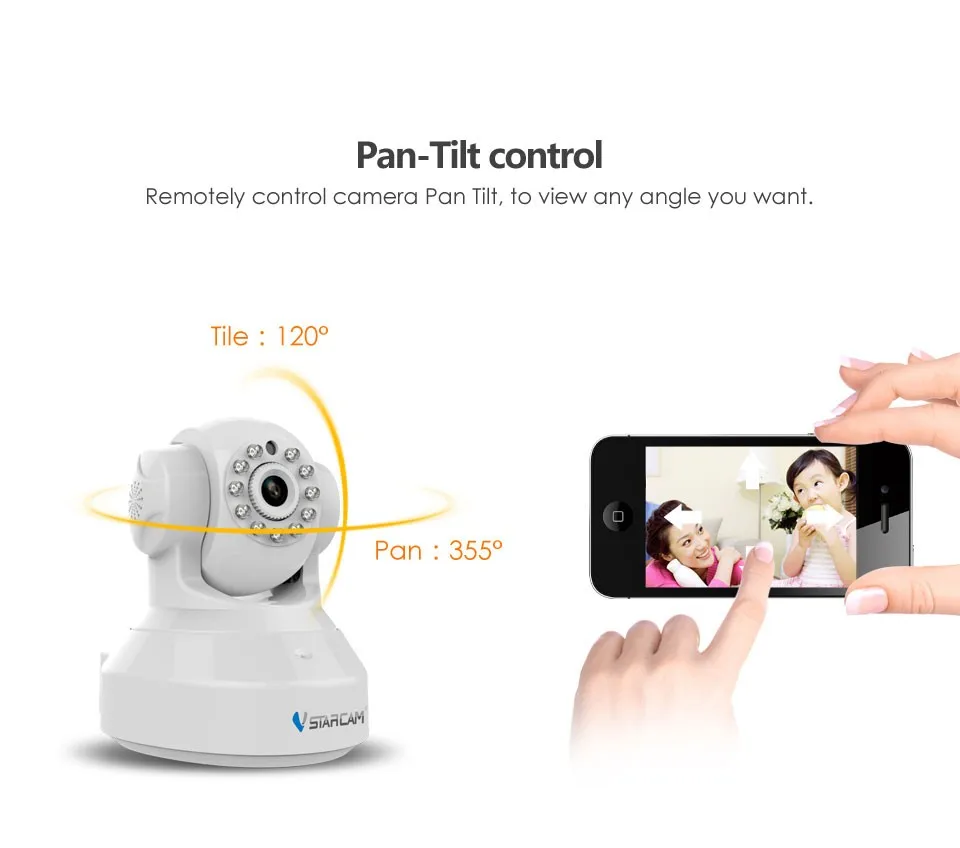

P/T Pan:355°, Tilt:120°
Preset Postion support up to 16 preset postions
Limit method Software limit position, more accurate preset positions,lower Pan Tilt failure rate
Alarm Motion detection Support motion detection
Alarm action Image upload via email/FTP server
Physical Rated Voltage DC5/2A±0.3V
Power consumption 3.0w(IR ON)
Working environment -20~70,Working Humidity 90%
Gross Weight 330g
Housing material ABS
Camera size 145*110*125mm (L×W×H)
Installation Wall mounting, ceiling mounting
Video Input Built in -48dB Microphone
Output Built in speaker(8Ω1W)
Sampling frequency 8KHz/16bit
Compression format ADPCM/32kbps
Network Interface 10Base-T / 100Base-TX, RJ45 connector
Network Protocol TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,ONVIF etc.
WIFI WiFi802.11b/g/n
Antenna 3dBi antenna,stronger signal, more stable
Wireless network security one key setup WiFi, do not need network cable .
Storage Storage mode Local storage / client storage/NVS /NVR storage
TF card support 128G TF card
Interface Micro SD
System OS Embedded Linux OS

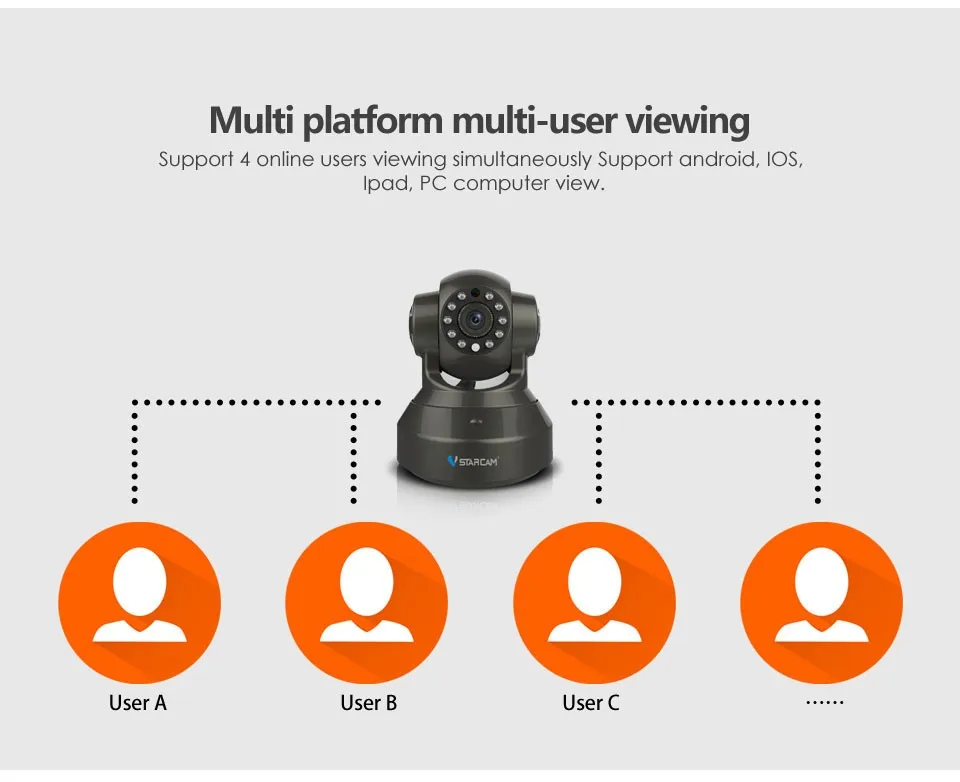

online users support 4 online visitors simultaneously
Support system IOS, Android, Windows
DDNS Free DDNS
Control protocol ONVIF 2.4 protocol, high interoperability
Processor Hisilicon processor,built-in ARM926 Max. 440MHz and a high-speed video co-processor.
Reset Long press for 15 seconds to restore back to factory settings
Image sensor 1/3inch 1080p Progressive scan CMOS sensor(0v2710)
Collection CMOS support AWB, AGC, BLC SNR >39dB
Minimum illumination 0.8Lux/F1.4(colourful model ),0.3Lux/F1.4(B&W mode)
Lens/viewing angle 3.6mmF2.1/78.19°
Night vision Dual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
IR control night vision view enabled, infrared Ray, ICR auto detect
Audio Compression Format H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding process Multi-stream 1080P/25fps+720P/25fps+VGA/25fps+720P @1fsJPEG snapshot
Resolution 1080p/720p/VGA
Bit Rate CBR/VBR, output bit rate range:128~4096kbps
Frame rate 25fps
Picture Adjustment Contrast, brightness, saturation, chroma are adjustable
Packaging & ShippingPakcage:
20pcs in per carton Net weight: 0.65KG/pcs Gross weight: 0.95KG
Shipping
For making sure customer can get goods in time , we can use global DHL ,UPS ,FedEX and TNT courier services or air freight, sea freight , transportation also can be available . We offer customer Ex-work ,FOB and CNF trade terms.
Our Services We are engraged in the research and develop of wifi camera, the high quality and good service will be provided.
