Hot ProductLoRa Wireless Ultrasonic Water Meter
LoRa Wireless Water Meter
LoRaWAN Remote Read Water Meter
Key Specifications1. Dry-dial/Wet-dial
2. Multi-jet
3. Antimagnetic construction
4. Measuring accuracy is up to class B of ISO4064 Standard.
5. Available for cold water
6. Series universal use. Easy interchange & maintenance.
7.Support photoelectric, RS-485, M-BUS and LoRa output interfaces and provides Radio Frequency and remote meter data reading functions for concentrated management
SSecks intelligent automatic metering reading system is mainly to solve increasingly onerous household water meter reading problem, improve efficiency and reduce costs.

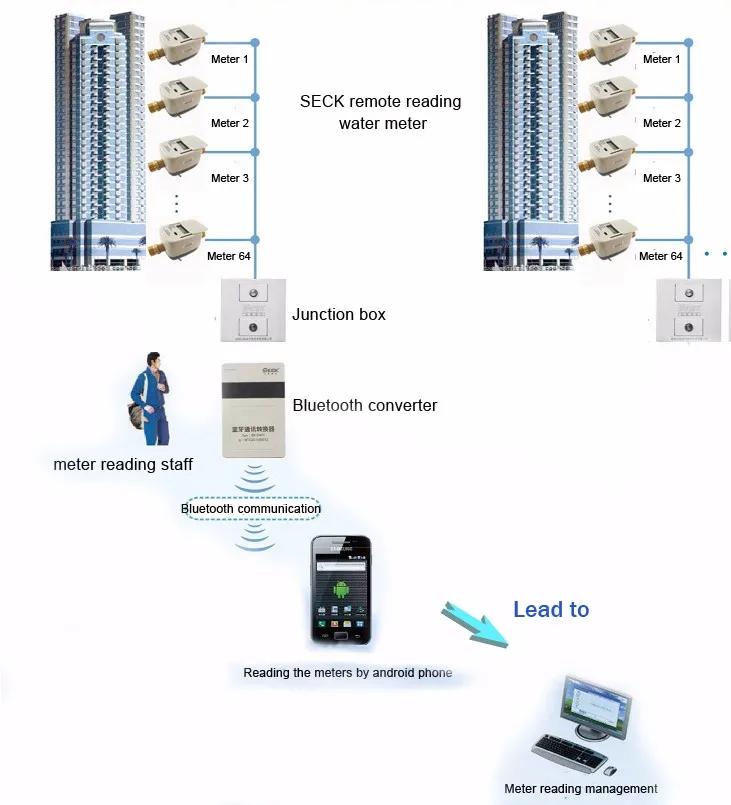

Secks LoRa Wireless Metering Reading System is no need to build the line.The structure of the remote meter read system is simple and easy to operate.The LoRa Wireless APP allow the meter reader get all the data of the meters easily and remote lead to the terminal management computer.
Also there is automatic model for remote meter reading through Concentrator device.We use the LORA Wireless Networks so that no need to charge communication flow fee between the communication from LORA meters to the concentrator.The Lora concentrator sent datas to server also through wireless network.The Remote Reading System we use also can be LORA/LORAWAN Wireless or M-BUS Read System.
Our CompanyMeter Detail Water meter model DN(mm) Q3/Q1 overload flow Q4 common flow Q3 boundary flow Q2 minimum flow Q1
LXSY-15Z 15 100 3.125 2.5 0.040 0.025
LXSY-20Z 20 100 5 4 0.064 0.040
Dimension Nominal diameter longL1 Long L Wide W High H Connecting threads Weight
d D kg
15 258 165 89 130 R1/2 G3/4 1.5
20 298 195 91 130 R3/4 G1 1.7
25 345 225 91 130 R1 G1 1/2 2.2
