wifi wireless zigbee photo cam smoke fire hotel cigarette portable smoke detector alarm system with build-in battery

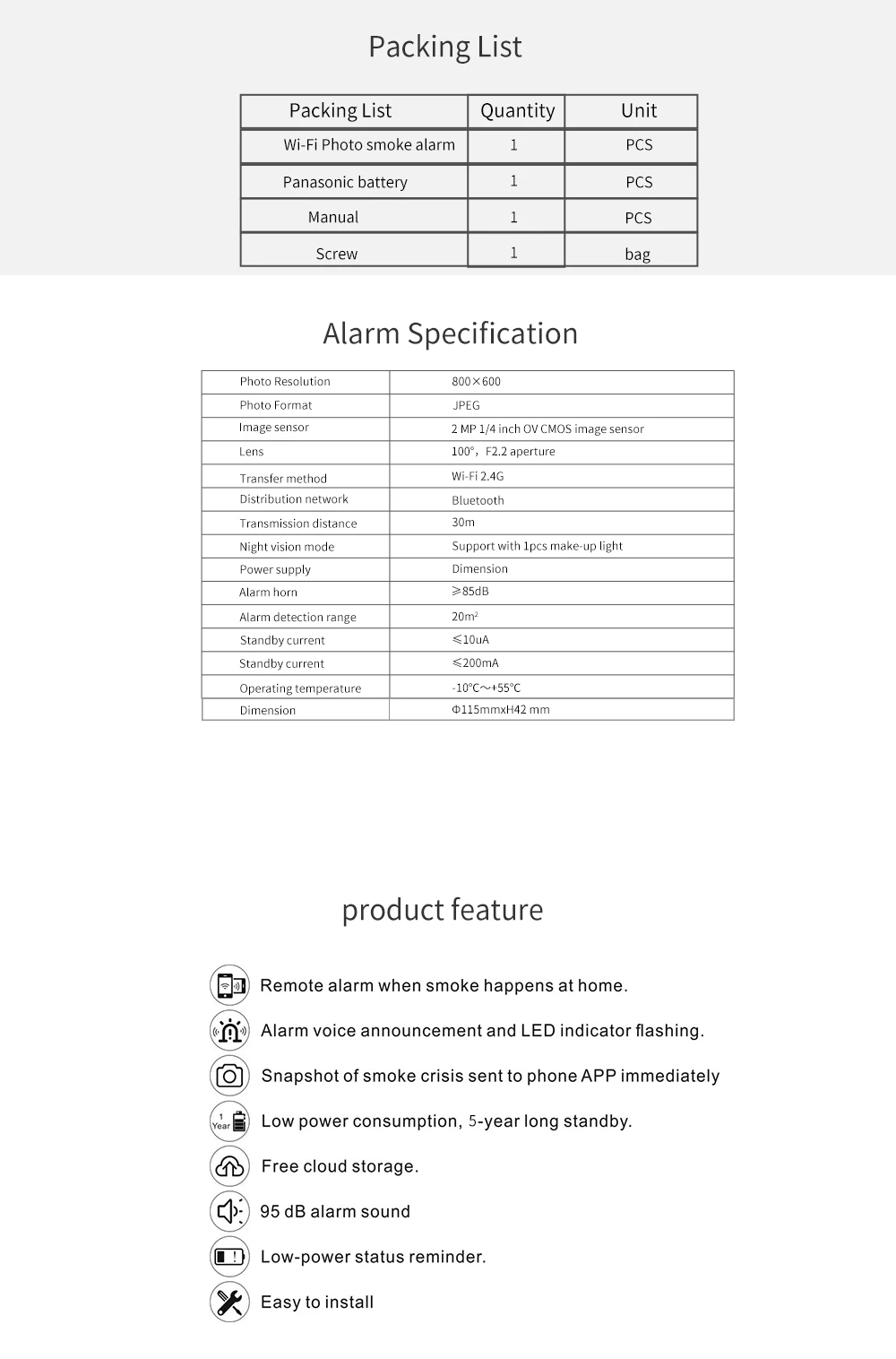

Specification
Resolution 800×600
Image format JPEG
Image sensor 2 MP 1/4 inch OV CMOS image sensor
Lens 100°, F2.2 aperture
Tranfer method Wi-Fi 2.4G(IEEE 802.11 b/g/n)
Connect method Bluetooth
Tranfer distance 30m

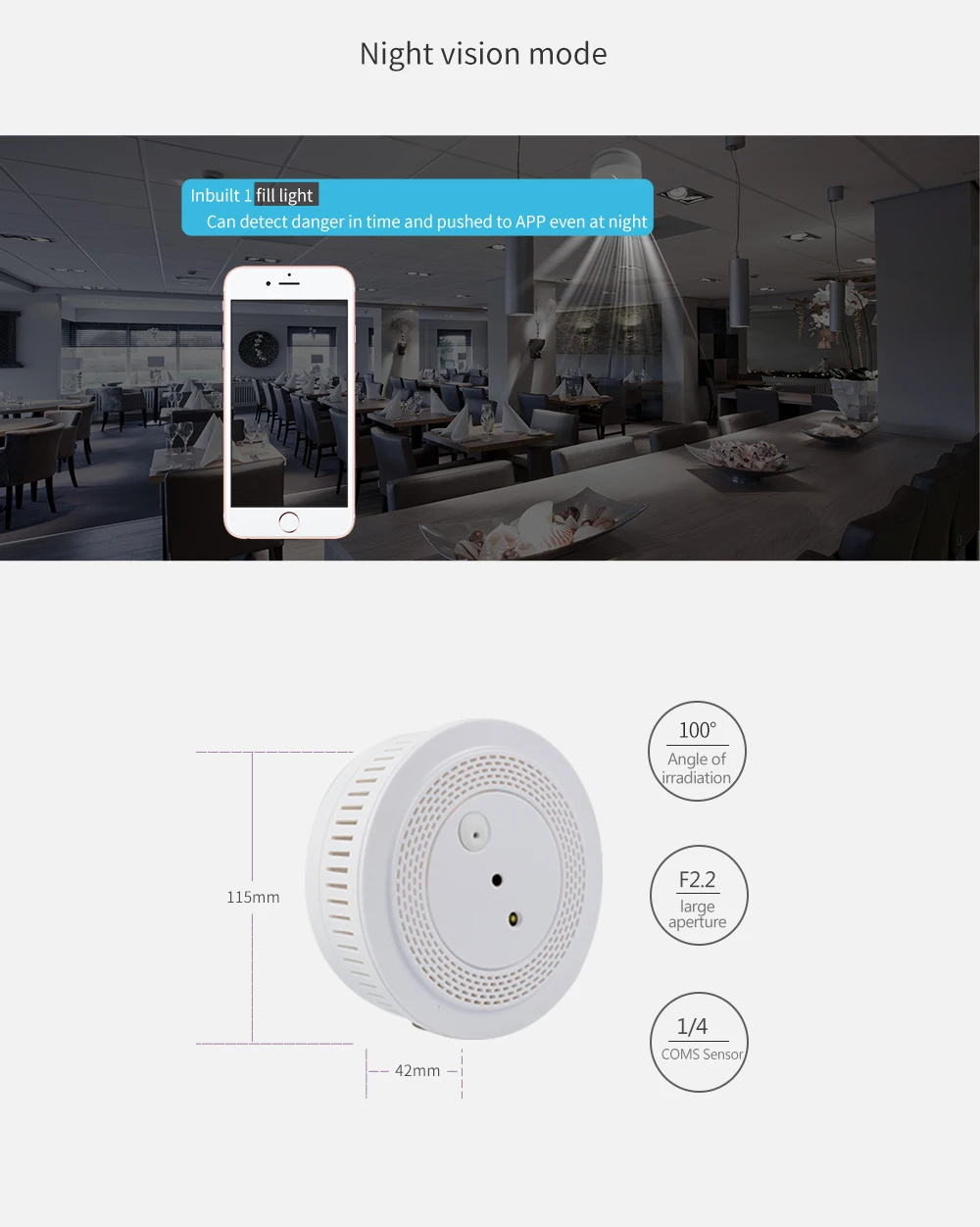

Night vision mode Support (1 pcs white light)

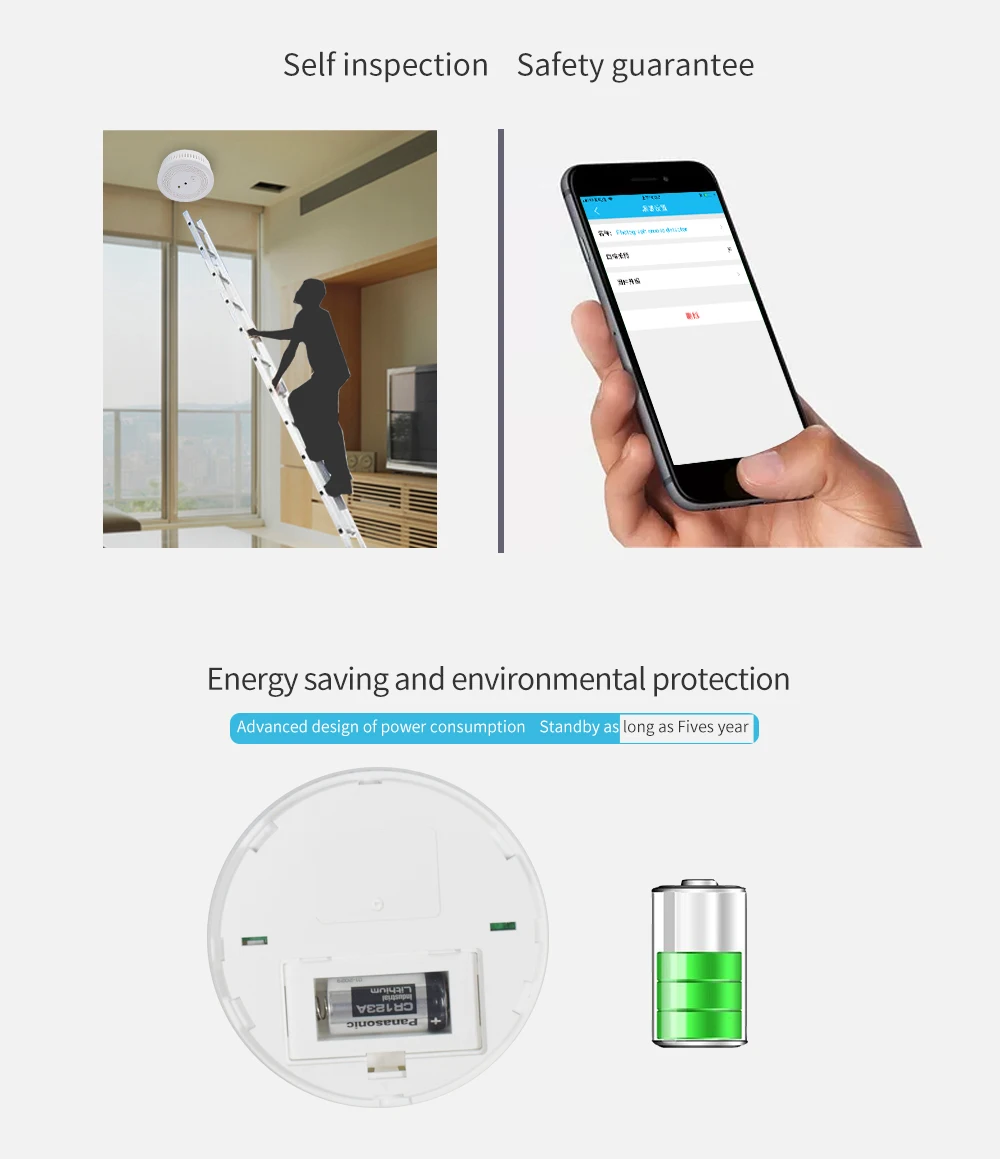

Power supply Panasonic CR123AV 1300mah battery
Alarm voice >85dB

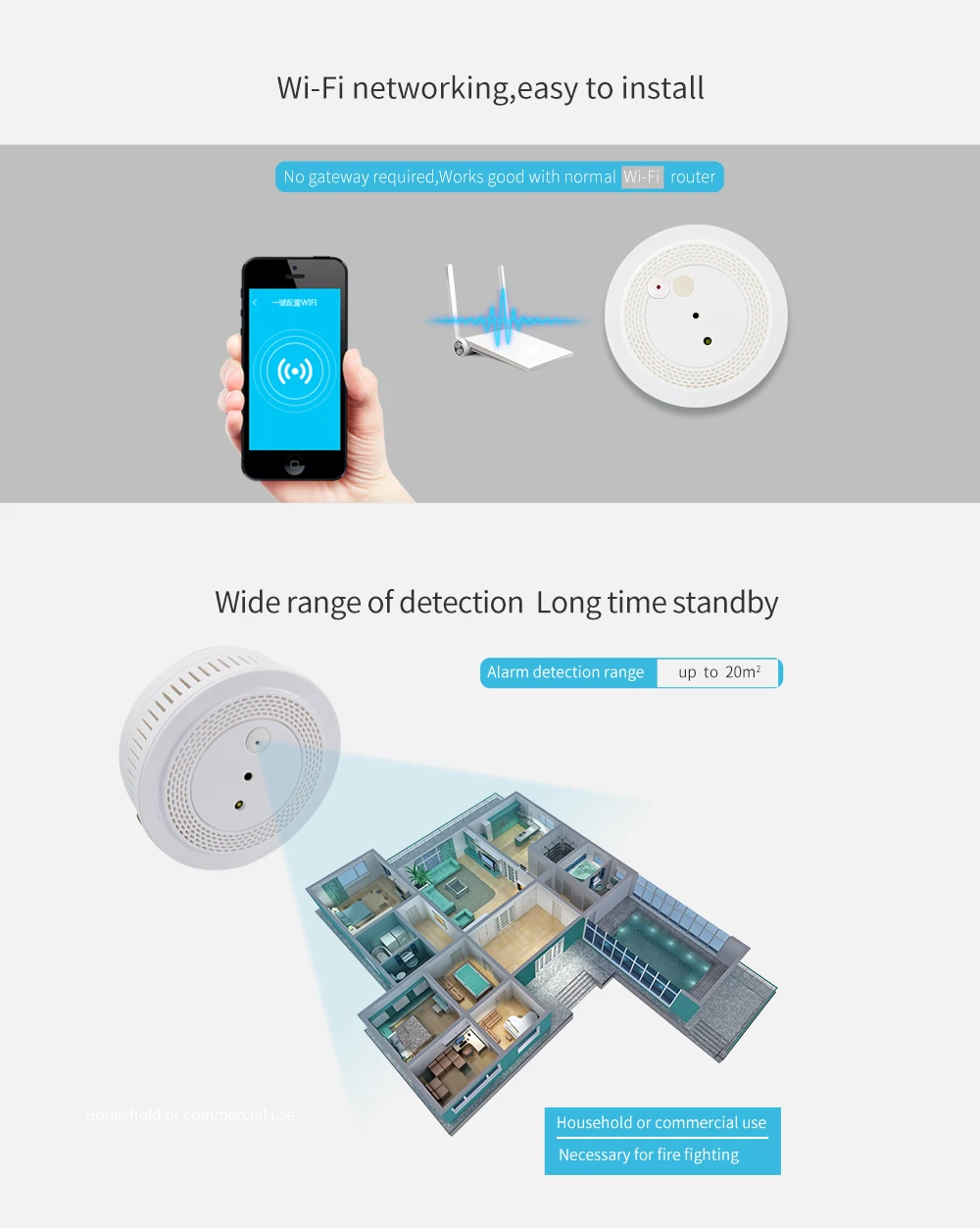

Alarm detection range 20m2
Standby current ≤10uA
Alarm current ≤200mA
Working environment -10~+55
Functions
Start After the battery is installed, it will start automatically (once the siren rings, the red LED flashes once, and the blue LED flash 2S).
Working status of device If the device is not configured with WIFI, and still not start to configure WiFi after 30S, the device will enter sleep state. Short press the key button to re-enter the network configuration mode.
After startup and detected the device has been equipped with WIFI, the device will automatically sleep.
Function of the key button When there is no network configuration, the device will sleep, short press the key button to wake up the device and enter the network configuration mode. The Test mode cannot be entered (i.e. the alarm siren/red LED flashing cannot be triggered). If the device is not sleep, short press the key button will do nothing.
After WIFI is configured, if the device sleep, short press to wake up the device and trigger Test alarm, take a photo and push it once, and the siren will alarm/red LED will flash. When the device is not asleep, the device will be in Test alarm mode, short press to stop Test mode.
When Test alarm is triggered (siren alarm/red LED flashing), short press once to stop siren alarm/red LED flashing, continue taking photos, and push the photo.
3S after smoke alarm is triggered, short press once to stop the alarm (if the smoke is detected continuously, press the button to turn off the siren alarm once. After 10S, if detected smoke alarm again, the siren will alarm again, and continue to circulate until the smoke concentration is lower than the alarm value).
Long press 5S to clear WIFI information and restore factory Settings
Smoke alarm Detection frequency: once /10s (once smoke is detected, the detection frequency will be accelerated until an alarm is given)
Sound and light alarm: siren continues alarm, red LED flash continuously, and push photos to APP
Flash LED Light 5S when you start taking photos, and close when you finish taking photos
LED Indicator 1. Power on: After blue flash for 2S, change according to the network state of the device
2. Wait for the network configuration: the blue light goes on and off, every 2S
3. Network interruption: the blue light comes on every 4S
4. Internet connected: blue light off
5.Test push: After the blue light flashes, it will change after detected the network status, and the red LED flashes at the same time
6. Smoke alarm trigger: The red light flashes continuously until the next detection
Low power alarm When the battery is lower than 2.3v, the APP will push low-power notifications every 24 hours until the battery is replaced.
When the battery is lower than 2.1v, the buzzer will ring every 43S until the battery is replaced.
Ignore Push Smoke triggers the alarm. After the APP receives the push, press the ignore button on the push interface. After that, the push will not be carried out for 2 minutes.At the same time, alarm siren/red LED alarm every 5S)
OTA 1. The APP displays version information, and the users manually detects the upgrade
2. When waking up every month, test the version information and prompt the user to upgrade
