Product Discription

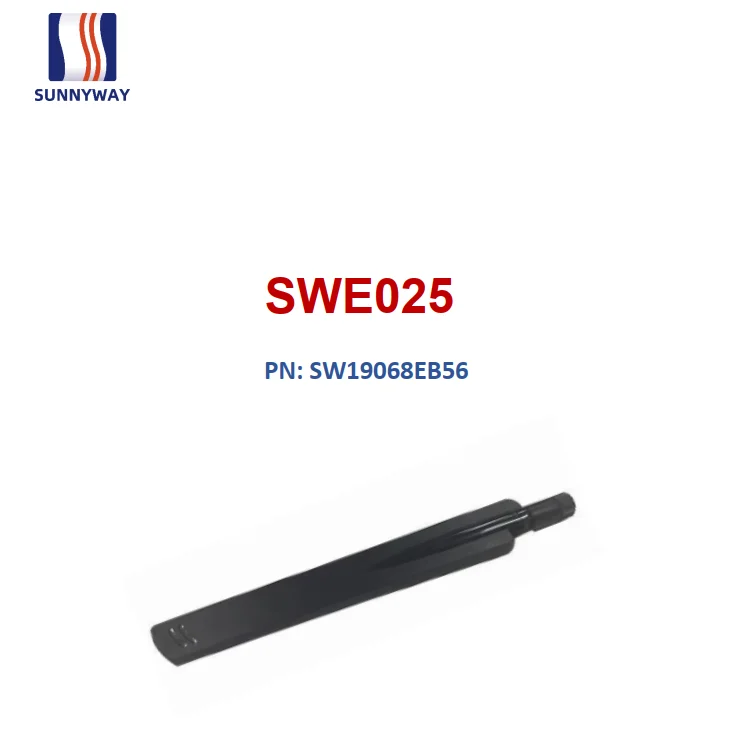

WiFi/BT/LoRa/4G/3G/2G/ 5G Antena Optional 433~6000MHz 5G Antenna for 5G Mobile Phone
Specification
Electrical SpecificationsStandards
5G/4G/3G/2G/WiFi/BT/LoRa
Frequency range (MHz
433~6000MHz
Peak Gain (dBi
-1.5~4.5dBi
Average Gain (dB
-4.6~-0.5dB
VSWR
＜ 4.5
Return Loss
＜ -4.0
Efficiency (%)
34~90%
Polarization mode
Linear
Radiation pattern
Omni-Directional
Output impedance (Ω)
50
Max. Input Power(W)
25
Mechanical and Environmental SpecificationMounting Type
Connector Mount
Connector Type
SMA (M)
Antenna size(mm)
220 x 28 x 8
Material
ABS+PC
Operating Temperature (˚C)
- 40 ˚C ~ + 85 ˚C
Storage Temperature(˚C)
- 40 ˚C ~ + 85 ˚C

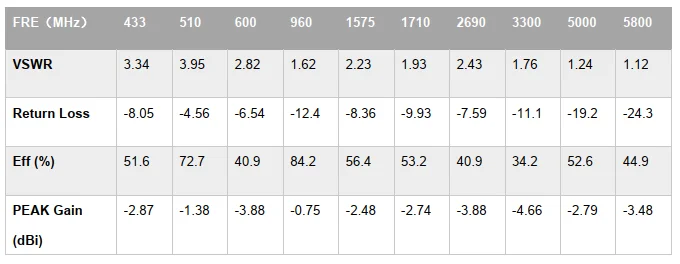

Antenna Parameters

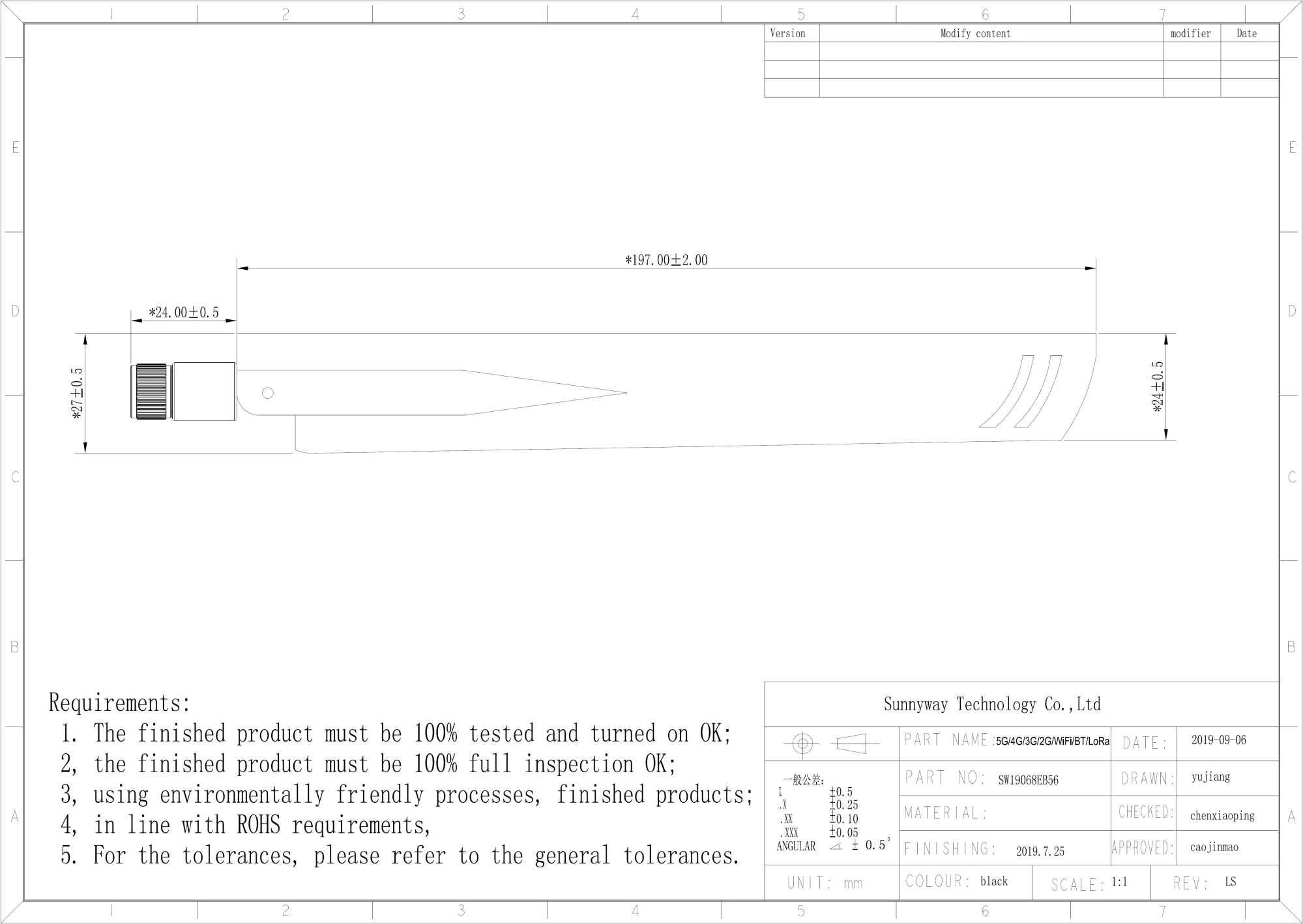

⭐To get more technical parameter details(specification sheet), please feel free to contact us!Antenna Drawings

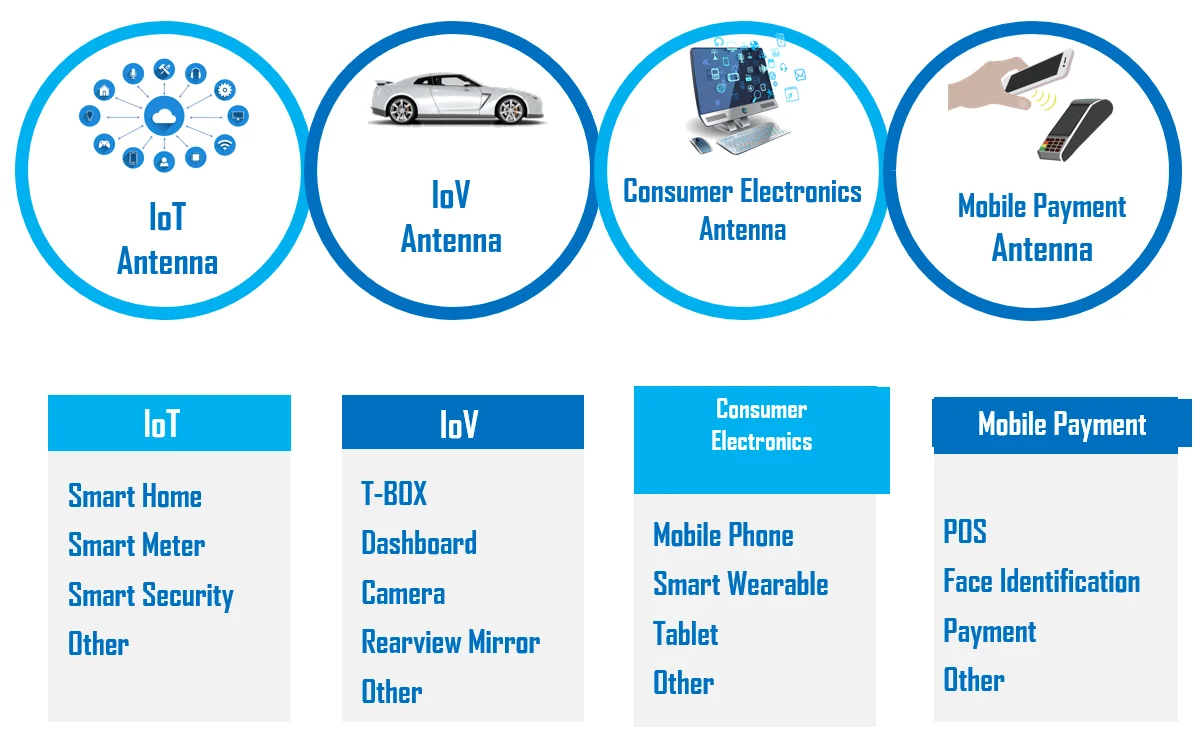

Products Application

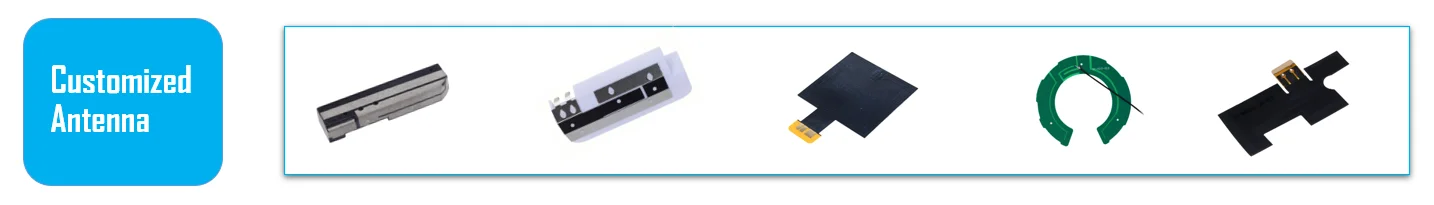

R&D/Customized Service
Besides selling standard products, we provide R&D and Customization service as well.

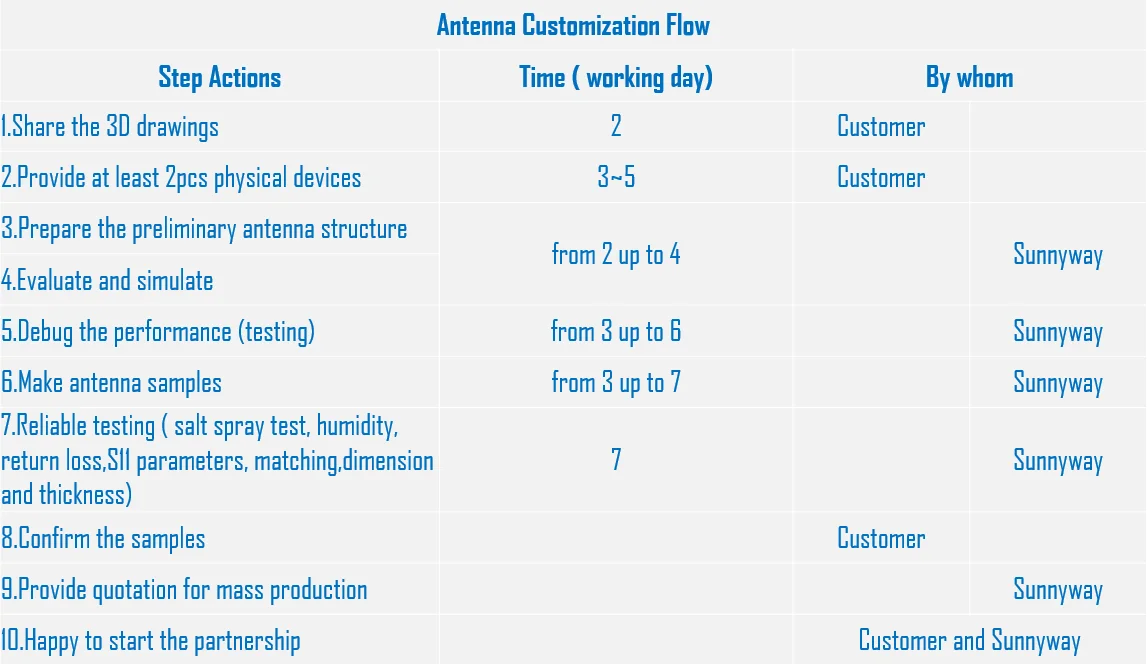

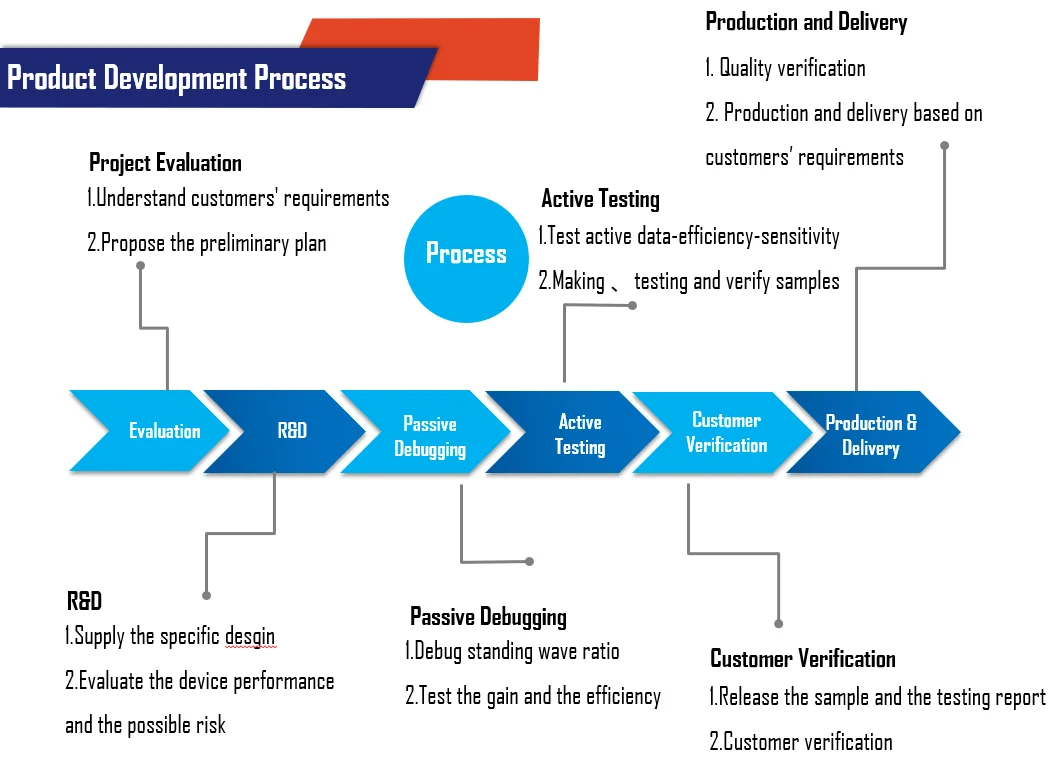

How to start? What you need to prepare? How long will it take? The chart below will help you!
Why Choose Us
1st Company History and Structure
Sunnyway Technology (China) LTD is a high-technology company registered in Hong Kong. It was founded in 2009 and its operating headquarter is in Shanghai. Besides, we have R&D centers in Shenzhen, Shanghai and Taiwan. In addition, we have self-owned factory in Huizhou, Guangdong.
2nd R&D and Manufacture Strength
The core technology team of Sunnyway Technology has many years of project development experience in antenna industry, and it can provide efficient customized service based on customer project requirements. Our production capacity is high up to 50,000,000pcs per month. Fast delivey is possible to achieve.

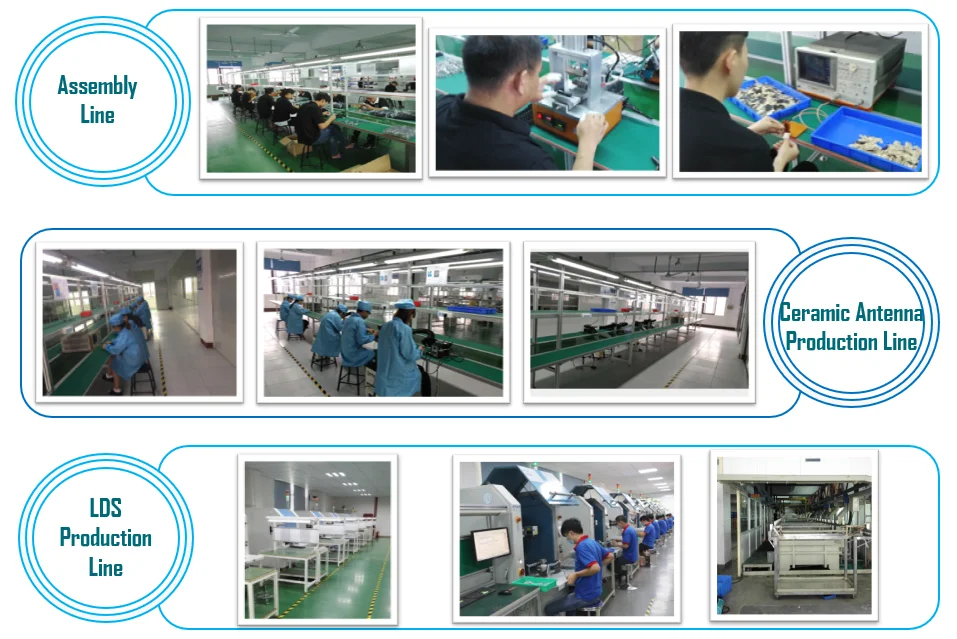

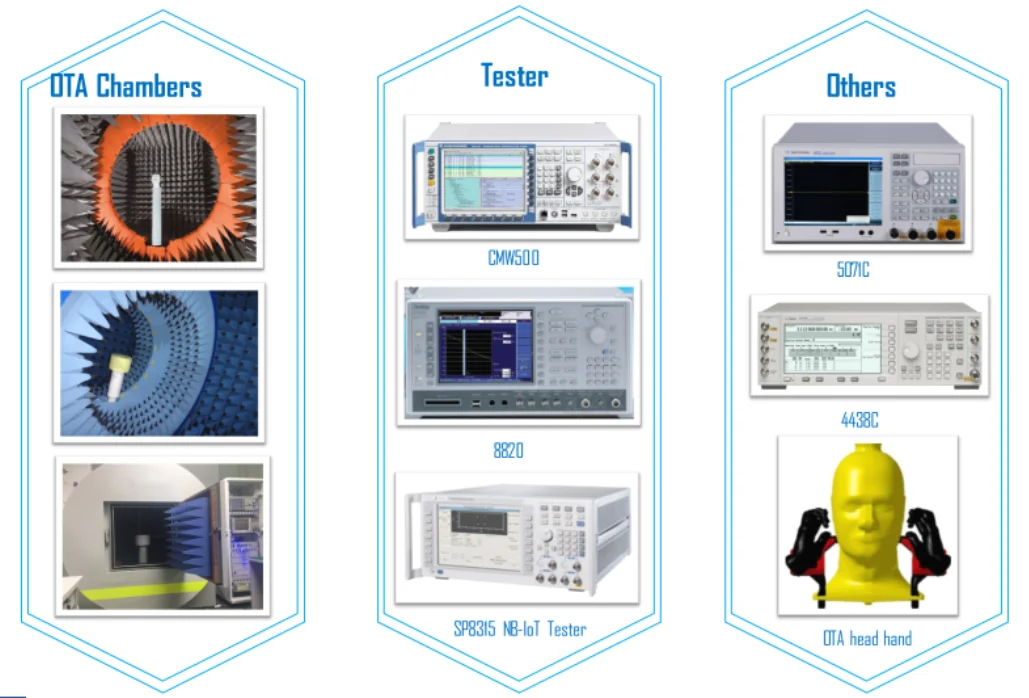

3rd Advanced Equipments
Our R&D centers are equipped with advanced testing equipments and certified by ISO9001 and IATF16949 International Quality Systems.Our factory has fully equipped with various inspection facilities. Such as network analyzer, humidity chamber, salt spray test box, quadratic meter, film thickness tester etc. Which can ensure good quality products to customers.
4th Rich Experience in Service
With more than 10 years operation and development, Sunnyway have provided high quality products and services to customers worldwide. Our aim is:Perfect Quality,Thoughtful Service,and becomeGlobal IoT Antenna Supplier!
FAQ
Q1: Are you a factory or just trading office?A: We are R&D and production 2 in 1 company which focus on selling, researching and producing.
Q2: Do you require MOQ?A: For standard products, there isn't MOQ; But for customized products, we will require 2000pcs as MOQ.
Q3: Will you charge for customized products?A: Yes, we will charge R&D expense and antenna mould fee if necessary.
Q4: Can you send samples for us to test?A: For standard products, we can provide total 3pcs free samples to customers to test, but shipping costs are not included. For customized products, pls contact us to inquire.
Q5: What's your aftersales policy?A: 2 years warranty for our products. If there is any quality issue during this period, pls contact us to send new products as replacements or ship back to rework if necessary.
