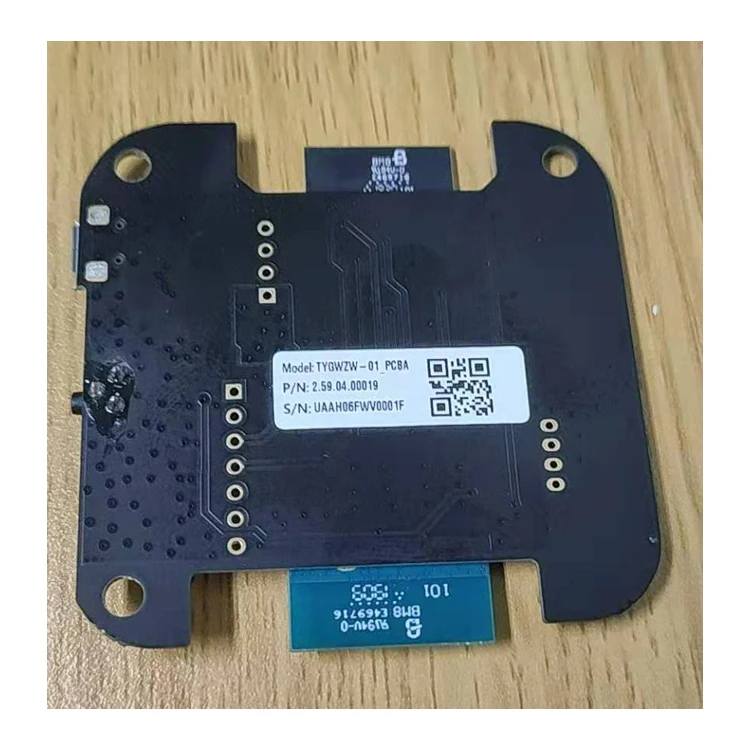

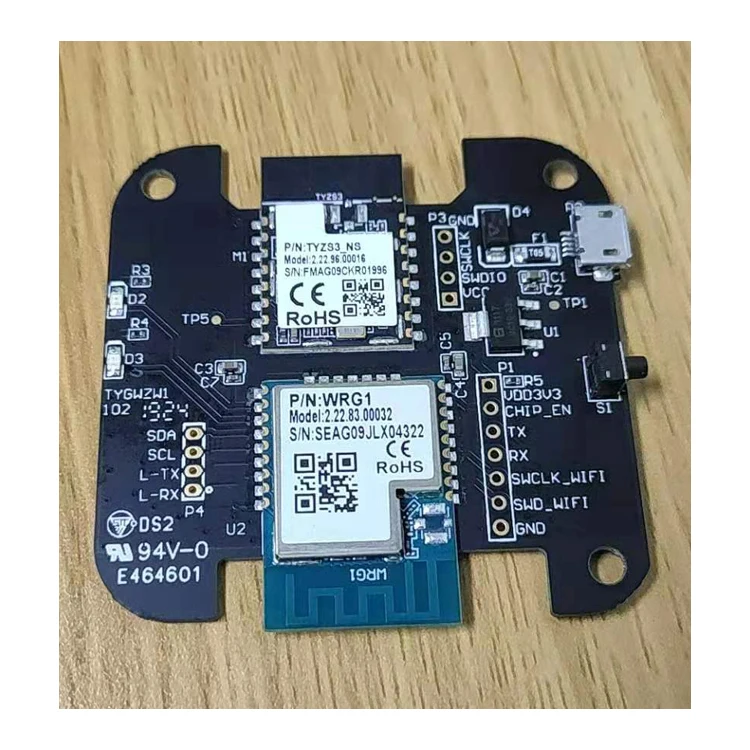

PCBA introduction--TYGWZW-01_PCBA1. Product OverviewTYGWZW-01_PCBA is a mini smart ZigBee gateway that Tuya develops. It consists of a highly integrated Wi-Fi module, low power-consuming ZigBee module, and PCBA.
2. Application ScenarioIntelligent building
Smart home and household appliances
HealthcareIndustrial wireless controlBaby monitorNetwork cameraIntelligent busRemote data collection3. Feature1) Compact size and elegant appearance The compact-sized gateway occupies only small in-house space.
2) Plug-and-play, easy to use
The gateway is plug-and-play, and the network configuration page is simple and easy to understand. You can immediately use the gateway even if you have never used a smart home appliance before.
3) Two-in-one, flexible switching
The gateway integrates the Wi-Fi and ZigBee communication modes. You can control it remotely through Wi-Fi or locally through ZigBee, ensuring gateway availability even if there is no network.
4) Wireless networking, stable and reliable
Wi-Fi and ZigBee signals are stable and reliable, have wide coverages and strong anti-interference capabilities, and can easily penetrate through walls. Moreover, the gateway consumes low power and has good heat dissipation.
5) High security and privacy protection
The gateway uses industry-leading encryption modes for information transmission through Wi-Fi and ZigBee to ensure network communication security and prevent malicious intrusions.
6) Peer network nodes for mutual reinforcement
Multiple mesh nodes can simultaneously work on the same network, enhancing network reliability.
7) One-click reset and quick network configuration
You can reset the gateway by pressing and holding the reset button for 5s, which is quick, secure, and guaranteed.
4. Product Specifications Physical Features
Dimensions (H x W x D) 16.1 mm x 60.5 mm x 60.5 mm
Net weight 50 g
Status indicator Two LED indicators: Wi-Fi and ZigBee
Operation button One power/reset button
Power supply 5 V DC power over the Micro USB port
Working current < 1 A
Adapter output 5 V1A
Working temperature –10°C to +55°C
Working humidity 10% to 90% RH (non-condensing)
Storage temperature –20°C to +60°C
Storage humidity 5% to 90% RH (non-condensing)
Port One Micro USB port
Wireless technology Wi-Fi: 802.11b/g/n
ZigBee: 802.15.4
Antenna type Built-in onboard antenna
Antenna gain information 2.5dBi
RF Features
Wi-Fi ZigBee
Wireless frequency 2.4 GHz to 2.4835 GHz 2.4 GHz to 2.48 GHz
Network standard 802.11b/g/n IEEE 802.15.4
Transmit power 20 dBm Rated: 10 dBm Maximum: 19 dBm
Number of channels 11 (channels 1 to 11) 16 (channels 11 to 26) 2405MHz; 2410MHz;2415MHz; 2420MHz; 2425MHz; 2430MHz; 2435MHz --- 2480MHz Add one channel every 5MHz
Transmission rate 802.11b: 1, 2, 5.5, or 11 (Mbit/s) 802.11g: 6, 9, 12, 18, 24, 36, 48, or 54 (Mbit/s) 802.11n: HT20 MCS0 to MCS7 802.11n: HT40 MCS0 to MCS7 250 kbit/s
Network Performance
Wireless encryption 128-bit AES encryption;WPA-PSK or WPA2-PSK, and WPA or WPA2
Network management Remote app configuration;Wi-Fi module firmware upgrade;ZigBee module firmware upgrade
Maximum number of connections Maximum number of nodes: 128
5. Status Indicator and ResetBlue indicator: indicates the ZigBee status.
Blinking:Allow devices to access the networkSteady on: The ZigBee is inactivated.Steady off: The ZigBee is activated.Red indicator: indicates the Wi-Fi status.
Steady on: The Wi-Fi is connected.Blinking: The Wi-Fi is to be connected.Steady off: Wi-Fi information is configured, but the Wi-Fi is unavailable.To reset the gateway, press and hold the reset button for 5s. If the blue indicator blinks several times, the gateway is successfully reset.

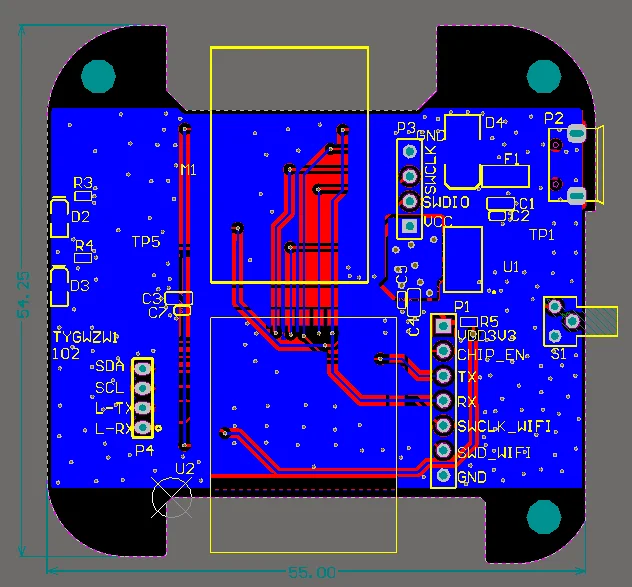

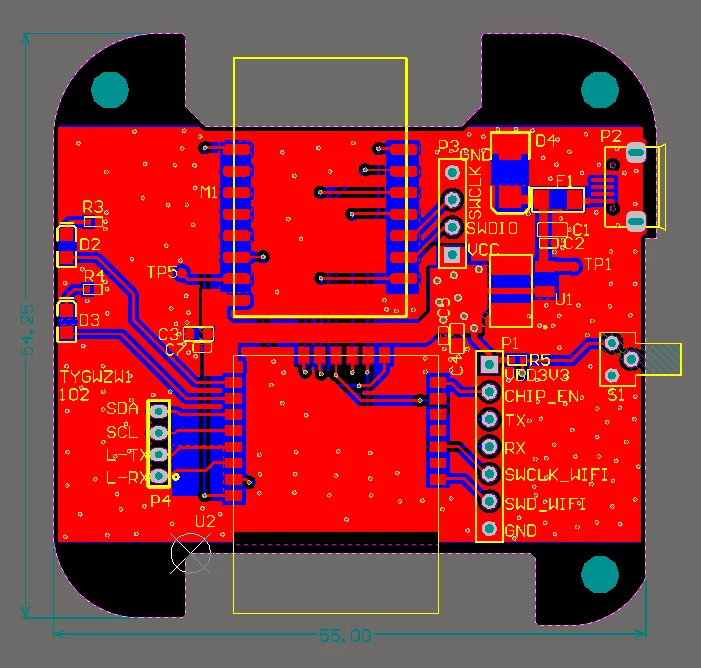

6. PCB LayoutUnit: mm
