Wholesale temperature humidity alarm zigbee data logger 4G SMS

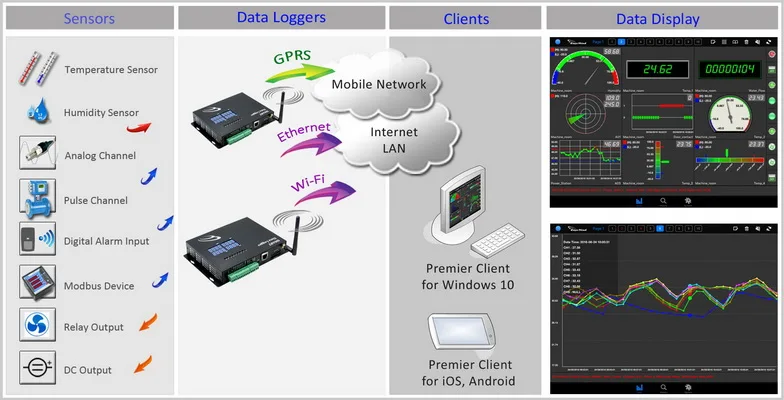

UMT4-HV-4G is a data collector with temperature, humidity, analog, pulse and digital channels.
Alarm is delivered via 4G mobile network.
UMT4-HV-4G uploads data and alarm via 4G mobile network.
Alarm SMS is sent to 4G mobile phone.
[detail]
It is a Temperature and Humidity SMS Alarm Messenger with built-in module supporting worldwide 4G mobile network.
4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.
Overview:
* 4 Temperature Sensors (max.)
* 2 Humidity Sensor (max.)
* 2 Analog Channels (max.)
* 3 Digital Inputs
* 3 Pulse Channels
* 2 Relay Outputs
* RS485 Data In
Its internal 4MB memory logs ~30000 data records.
Data can be uploaded to server via SMS in interval to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.
Specification
Power Input
-- 9 ~ 15VDC
Data Upload
-- On Schedule / Manual Request / Alarm Triggered
Alarm type
-- SMS Alarm message
Certificate
-- CE, RoHS
Display Type
--Analog and Digital
Internal Data Record
-- Average 30000 records (4MB)
Alarm Trigger
-- Digital Alarm / AD Level High or Low / Power Loss
Digital Channel
-- Alarm Dry Contact
Signal Type
-- 4~20mA or 0~5VDC
Alarm Trigger
-- Digital Alarm / AD Level High or Low / Power Loss
Data Logging Interval
-- Programmable (1 ~ 60 minutes)
Pulse Channel
-- On/Off Switching
Data Transmission
--SMS
Output
--5VDC
Data Upload Interval
-- Programmable (5s ~ 24 hours)
Temperature Channel
-- -55 ~ 125 °C
Industrial Protocol
-- Modbus
Modbus Device Port
-- RS485 & RS232
Modbus Device Support
--16 data registers
Application
-- industrial
Features
1) Real Time 4G Data & SMS Alarm over SMS
2) Integrated 16 bit MCU & Siemens 4G Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Flexible AC/DC power with internal battery backup
Free Software:
Setup software is bundled for routine configuration via USB port locally or GSM Modem remotely


[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile network
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
