White color design highbay lighting 150W led with zigbee
1. Warehouse, workshop, supermarkets, exhibition room, hall, toll station, gas station, residential areas, industrial areas, etc.
2. 7 years warranty version & 5 years warranty version are available.

Specification
PRODUCT SPECIFICATIONS
Product name:
LED linear high bay lights
Model No.:
SW-L500B-W150
Power:
150W
Working voltage:
AC100-277V, 50/60Hz
PF:
> 0.97
IP Grade:
IP65
TECHNICAL CHARACTERISTICS
Color:
Warm White
Natural White
Cool White
Color Temperature:
2700-3200K
4000-5500K
5700-7000K
CRI:
>70Ra
>70Ra
>70Ra
Light Efficiency:
150-160lm/w
View angle:
120°× 120°; 60°× 120°
CONFIGURATIONS
LED chip:
168PCS 3030 LED
Heat sinks:
Aluminum
Body color:
White
OTHERS
Operating Temperature:
-35 - 50
Operating Humidity:
10% - 90% RH
Storage Temperature:
-35 to 60
Net Weight:
3.5KGS
Gross Weight:
4.4KGS
Packing size:
39*35*17cm
Warranty:
5 years
Certificates:
CE, RoHS, SAA, ETL

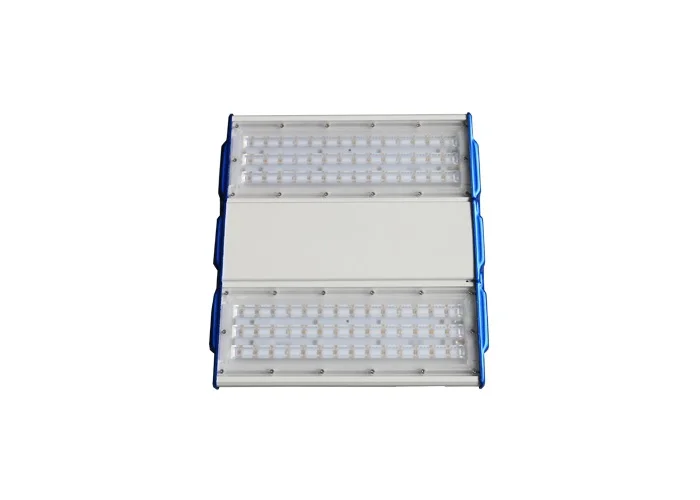

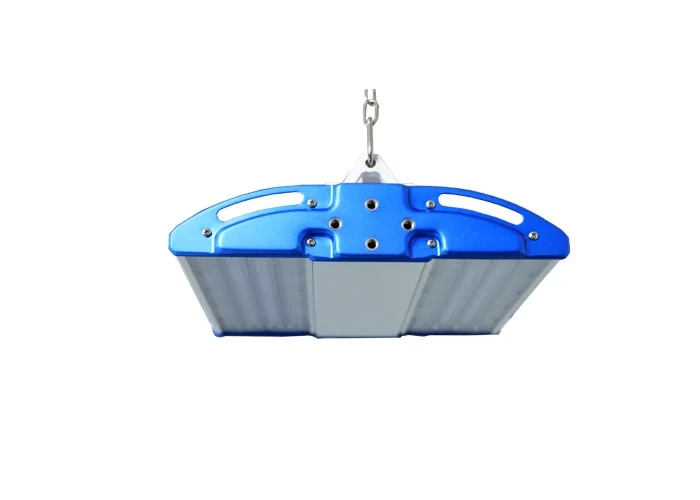

Product pictures


Features
1. Original high quality chip and high quality driver.
2. High Energy saving, lumen efficiency can reach at 170LM/W.
3. Optional lens are used to meet the function and effect as linear high bay light/ warehouse light/ flood light,etc.
4. CE RoHS SAA approval, 5 or 7 years warranty,high quality with reasonable cost.
5. The house is with high thermal conductivity, with heat evenly and IP65 waterproof.
6. 100w to 500w linear led high bay light are available.
7. Simple and pretty appearance, exclusive high-end products. Surely will bring you incomparable refreshing experience.
Wattage
Model No. SW-L500B-W100 SW-L500B-W150 SW-L500B-W200 SW-L500B-W240 SW-L500B-W300 SW-L500B-W400 SW-L500B-W500
LED BRAND SMD 3030 SMD 3030 SMD 3030 SMD 3030 SMD 3030 SMD 3030 SMD 3030
IP GRADE IP65 IP65 IP65 IP65 IP65 IP65 IP65
LUMEN 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W 170LM/W
CCT 2700-7000K 2700-7000K 2700-7000K 2700-7000K 2700-7000K 2700-7000K 2700-7000K

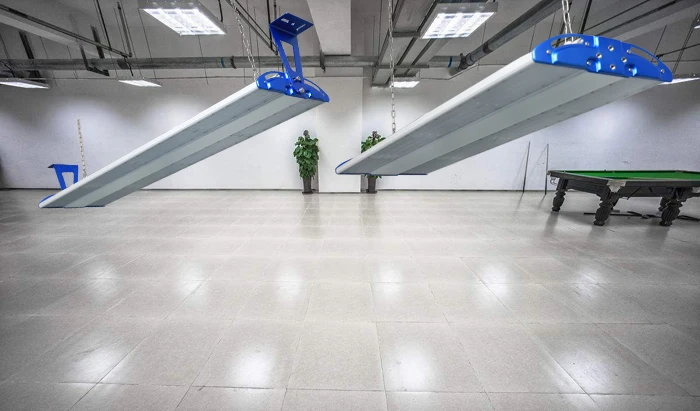

Application
(1). Warehouse,factory and workshops;
(2). Highway toll station and gas station;
(3). Exhibition hall and supermarket;
(4). Gymnasium and supermarket;
(5). Residential area, etc.

Other optional functions
1. DALI dimmable
2. 1-10v, or PMW dimmable

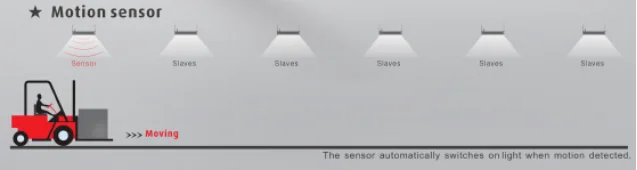

3. With montion detector
The sensor automatically switches on light when motion detected.
If you need these extra functions, please contact our us.
