Warm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller
IoT / ZigBee

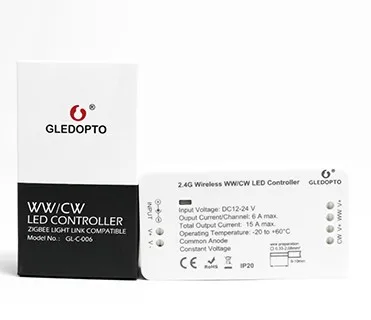

SpecificationsWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMMain Specs of DC12-24V ZigBee LED Strip Controller
Input Volt. 12V ~24V DC
Output Current Total 15A max.
Common Anode
Yes
Control Tech. ZigBee 3.0
Lighting Color WW/CW or Dual Single Color
Remote Distance ≤30Meter
Shelf Material ABS
Working Temp. -20C~60C

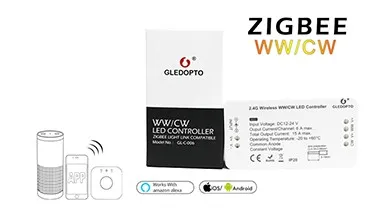

Warm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMProduct FeaturesZigBee WW/CW Dual Color LED Neon/Strip Controller is a newly developed LED controller. This LED controller is designed by a delicate & fashionable ABS housing body; based on ZigBee 3.0 protocol, which compatible to ZLL gateways such as Philips Hue, Amazon Echo Plus, Ikea Tradfri, etc, widely used for smart controlling 12/24V dc Flexible LED Neon Strip Light, LED Modules, LED String Lights, etc.
Main Functions of Dual CCT/Color LED Controller△ Creat Rooms, divide your lamps into one or several rooms, to control lamps in each room together or seperately
△ Set the Scene, Scenes that automatically adjustto the lights in your room according to environment
△Home or away, set time to turn on your lights automatically even you are away from home, as a reminder there's people at home
△Wake up, set time to turn on light gently, to wake you up in the morning
△ Sync Effect with Screenbloom, sync your lights with movies, music and games, to enjoy the lighting effect which synchronizes with the plot of the picture changes
Warm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMEasy Guide to Connect with Gateways1. Connect the LED product to the controller see section "wire connection".
2. Start the device searching on the ZigBee Light Link Gateway, it could take some time. If the Gateway does not find the device, plug power off/on or make a reset.
3. The Gateway found your device and you can assign it to the different rooms/zones/groups.
4. Now you can use the device.
NotesThe controller is available in 1ID or 2ID version design, and the preset version is 1ID from us.
1ID - will show 1ID on the APP, easy to manage the lights and can control the Color light (RGB) or white light separately.
2ID - will show 2IDs in the App, Color light (RGB) can work with white light together or separately.
To help you to confirm which ID version is best suitable, we suggest to tell us what brand of Gateway/Hubs you are using firstly.
Warm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWhat Functions by Using Our Smart Controlled ZigBee3.0 ZLL LED Controllers & Lamps
Warm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMQuick Start to Use Our ZigBee serie APP Alexa Voice Control LED Lamps & Controllers
Warm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMInstallation ProcessWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMSimilar RGBW/WW&CW/Single Color ZigBee LED Flexible Neon Strip Controllers/Dimmer
Warm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMItem No. #GL-W-001Z #GL-C-007 #GL-C-008 #GL-C-009
Input Volt. AC 100~240V DC 12~24V DC 12~24V DC 12~24V
Control Tech. ZigBee protocol compatible to ZLL gatways, e.g. Philips Hue, Amazon Echo Plus, Ikea Tradfri, ..
Lighting Color on/off function RGBW RGB+CCT Single Color Dimmer
Applications CasesWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMGledopto ZigBee LED Controller Packing Details
Warm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMCertificationsWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COMWarm White Cool White Dual Lighting Color Dimmable 2700K-6500K 12-24VDC 15A Gledopto ZigBee LED Flexible Strip Light Controller - ANKUX.COM
