The VW3071 series wireless modulesare built on the top of Semtech's newest high performance LORA RF chip -SX1262, which with higher rf output power, high sensitivity, gives stable and reliable long linkage range. The advantage of LORA modulation has remarkable high sensitivity and thus helps to extend communication range.
VW3071 series modem built-in with a transparent data communication protocol.It also equipped with other enhanced protocol, for example, the point-point, point – multi points, and master-client, etc.It is allowed to change the operation modes on the field.Aside from the powerful LORA modulation, VW3071 series modem also have the GFSK setting enabled. When GFSK enabled, it can communicate with our other standard fsk/gfsk production line, for instance, the VW320A series modem.And, a wmbus-T1 receiver protocol is ready for VW3071 series. We can use this device as a handy usb wmbus receiver which will report the wmbus-T1 raw data.A user friendly PC program is provided to easy the parameter configuration.
Major Parameters: Radio Chip: SX1262
Frequency band: ISM 433/868/915MHz
Interface: USB
Modulation: LORA/GFSK
Max.Tx.power.: 125mW (21dB)
Supply Voltage: +3.3V~+5.5V
RF date rate: 300bps~115200bps
Channel numbers: 100
Linkage range: FSK: 1.5km, outdoor, L.O.S (@ RF rate 9600bps)
LORA: 6km, outdoor, L.O.S (@ RF rate 500bps)
Operate temperature: -30~80

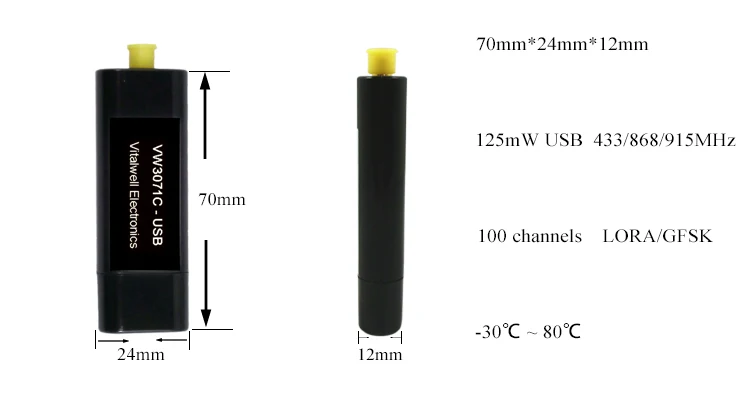

Size:
70mm x 24mm x 12mm(with casing)
Interface footprint:
USB(type A)
Antenna impedance: 50Ω
Function Description
☀ Providing the capability of a short range, reliable wireless point-to-point, point-to-multipoint and mesh network
RF data communications link.
☀ Being used in a variety of data communications applications that require a simple to use invisible data link, and
isdesigned to interface to a variety of host devices.
☀ Providing a two-way data communications links. The serial data transferred over the radio link is not altered.
Detail & Accessories

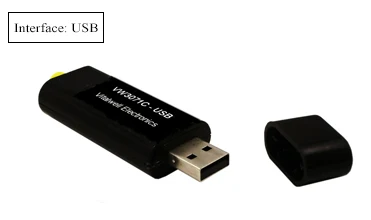

USB Interface
Higher rf output powerHigh sensitivityGives stable and reliable long linkage range

Name: Magnetic AntennaFrequency: 433MHz
Connector: SMA-Male
Length: Antenna length 155mm
(Cable length can be customized)


Name: Swivel AntennaFrequency: 433MHz
Connector: SMA-Male
Length: 108mm (87mm after swiveled)
Major Applications(1) Wireless 232 or 485/422 data link .
(2) Water,electricity,gas and other automatic meter reading (AMR)system;
(3) Building automation system; Security entry system;
(4) Intelligent traffic; Vehicle Control;
(5) Wireless scanner;
(6) Restaurant Order System Management;
(7) Industrial control,remote sensing,automatic data collection system;
(8) Wireless data transmission; Digital audio,digital image transmission;
(9) Wireless electronic display screen;
(10) Telemetric systems;
(11) Oil Well Measuring,Environmental Protection Monitoring.
(12) Hydrology Water Level Monitoring; etc.
▪Industrial Manufacturing
Replacing industrial field short-distance signal cable, Reducing wiring, Easy to manage and improve production efficiency. ▪ Automatic Water Meter Reading
AMR saves utility providers the expense of periodic
trips to each physical location to read a meter.
Helping to reduce user complaints and improve
service quality.
▪ Smart Farm
Accurately monitor the details of each
work area for easy statistics Management,
first discovered potential risks.
▪ Hydrotlogy Water Level Monitoring
Remote monitoring hydrology water level in many
environments including wells, dams, streams, weirs,
storm water systems, and water treatment or
wastewater treatment plants and etc. Get instant
alerts and know exactly what's happening at any
moment.
