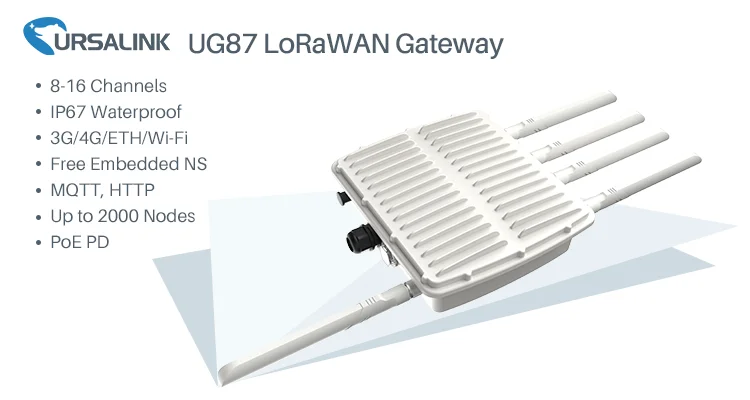

Ursalink UG87 is an industrial gateway based on LoRaWAN technology. It features Edge and Fog computing capabilities with Python programming, rich serial interface and free embedded NS, available in EU433/EU868/US902/AU915/CN470/AS923/KR920 global frequency. Our LoRaWAN ecosystem partners includeThe Things Network (TTN), LORIOT, Ubidots, IoThink Solutions, LoRa Alliance and ThingWorx. The UG87 has been distributed to the dozens of regions and deployed in pilot use cases and LPWAN projects.

Quick Details of Ursalink UG87 LoRaWAN Gateway_________________________________________________________________
UG87 LoRaWAN Gateway
UG87 LoRaWAN Gateway
Hardware
Processor
800 MHz, 64-bit ARM Cortex-A53
Power Supply
9-48 VDC PoE PD
Ingress Protection
IP67
Connectivity
Redundancy
2 SIM Slot, Failover, Link Backup
Channel
8-16
Wi-Fi
IEEE 802.11 b/g/n/ac
Ethernet
1 x 10/100/1000 Mbps
Network Server
Embedded
Yes
3rd Party's
TTN, LORIOT, ThingWorx
Capabilities
Nodes Connection
Up to 2000
Radio Range
Up to 10 km
Product Highlights
√ 8-16 Channel√Free Embedded NS
√Up to 10 km Radio Range
√TTN, LORIOT, ThingWorx
√Up to 2000 nodes connection
√EU433/EU868/US902/AU915/CN470/AS923/KR920




Develop Device-to-Cloud Connection
The Ursalink Cloud is a comprehensive cloud service provides unparalleled levels of vertical integration with Ursalink Remote I/O series and LoRaWAN Gateway to link vertical, back-end applications to remote assets. TheFREE Trialis ongoing. Don't miss it!
Try it out: https://www.ursalink.com/en/ursalink-cloud-service-remote-control/

Detailed Images

Partners

Success Story

For More infomation
https://www.ursalink.com/en/success-stories/
Specifications
Model
UG85
UG87
Hardware
Processor
800 MHz, 64-bit ARM Cortex-A53
Memory
8GB eMMC
Flash
512 MB DDR3 (Up to 1GB)
Power Supply
9-48 VDC Input (Default)
PoE PD (Optional)
PoE PD (Default)
9-48 VDC (Optional)
220 VAC (Optional)
Software
Network Protocol
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN Tunnel
OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE
Serial Port
Transparent, TCP Client/Server, UDP, Modbus Gateway
Connectivity
Ethernet
1 x 10/100/1000 Mbps
Cellular (optional)
2 x SIM Slot, Support for Global GSM/3G/4G LTE Frequency Bands
Wi-Fi (Optional)
IEEE 802.11 b/g/n/ac
Console
1 x Console (RJ45)
GPS + GLONASS
Optional
Yes
Serial
1 x RS232
N/A
Digital
1 x DI + 1 x DO
N/A
LoRaWAN
Channel
8
8/16
Frequency Band
EU433, EU868, US902, AU915, CN470, AS923, KR920 and so on
Sensitivity
-140dBm Sensitivity @292bps
Output Power
27dBm Max
Protocol
V1.0 Class A/Class C and V 1.0.2 Class A/Class C
Others
Operating Temp
-40C to +70C (-40℉ to +158℉) Reduced cellular performance above 60C
Storage Temp
-40C to +85C (-40℉ to +185℉)
Relative Humidity
0% to 95% (non-condensing) at 25C/77℉
Ingress Protection
IP30
IP67
Mounting
Desktop, Wall or DIN Rail Mounting
Wall or Pole Mounting
Dimensions
108 x 90 x 26mm (4.25 x 3.54 x 1.02 in)
254 x 222 x89 mm (10 x 8.75 x 3.5 in)
Weight
271g (0.60lb)
1874g (4.13lb)
