TTGO 868 / 915Mhz 0.96 Inch OLED LORA32 B WIFI SX1276 ESP32 Module

IoT / LoRa

TTGO LORA32 Blue Display WIFI ESP-32 Module 868 / 915Mhz 0.96 Inch ESP32 OLED
Describe:
The 868/915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip)
Lithium battery charge and discharge circuit, when the battery is full, the blue LED will stop working. When using, pay attention to the positive and negative of the battery, otherwise it will be damaged!
With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!
Example:
This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 868-915MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.
the onboard 32MB Flash wi-fi antenna, 0.96 inch blue oled display, lithium battery charging circuit, CP2102 interface and USB serial chip, the perfect support for Arduin development environment, can be used for program checking and product development is very easy and fast.
Parameters:
Operating voltage 3.3V to 7V
Operating temperature range -40 ° C to + 90 ° C
Support Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
Data rates 150 Mbps @ 11n HT40., 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
transmit power 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
receiver sensitivity up to -98 dBm
UDP sustained throughput 135 Mbps

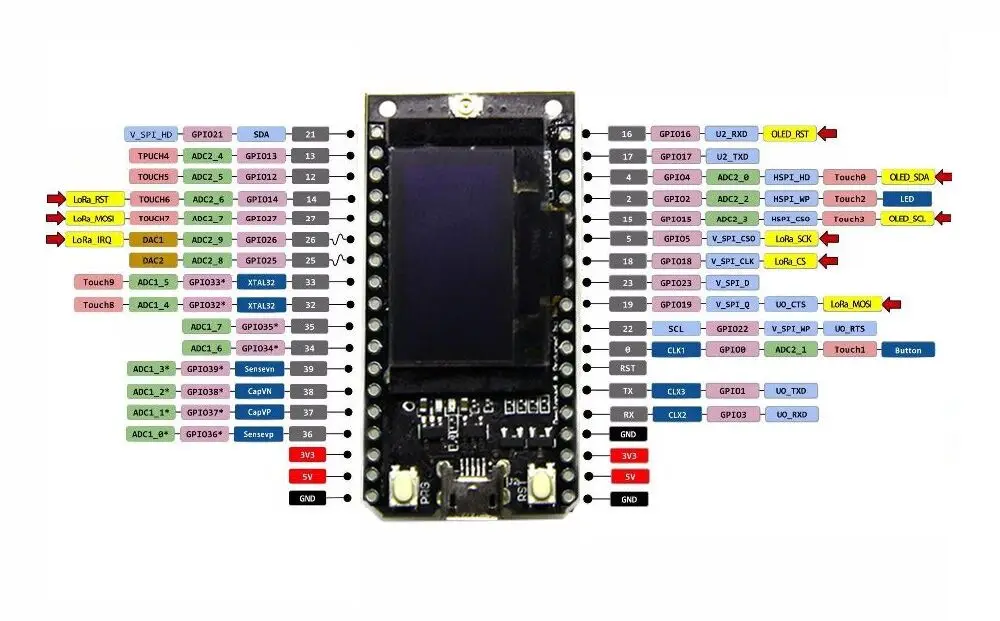

Pin diagram TTGO 868 / 915Mhz 0.96 Inch OLED LORA32 B WIFI SX1276 ESP32 Module - ANKUX.COM

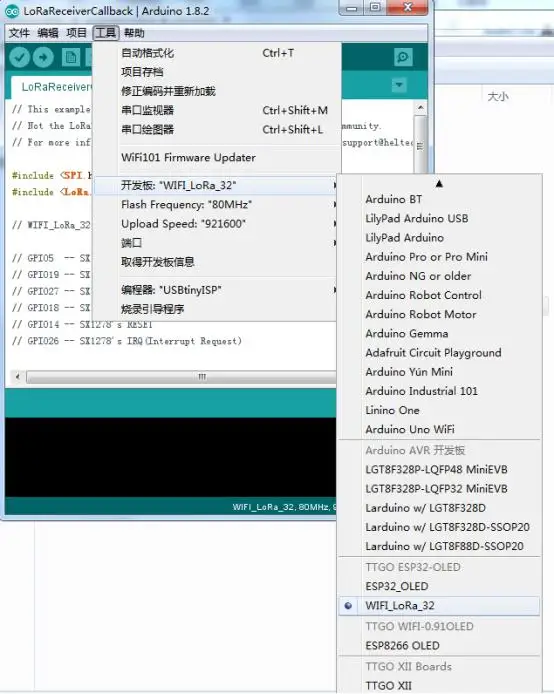

Test Details TTGO 868 / 915Mhz 0.96 Inch OLED LORA32 B WIFI SX1276 ESP32 Module - ANKUX.COM

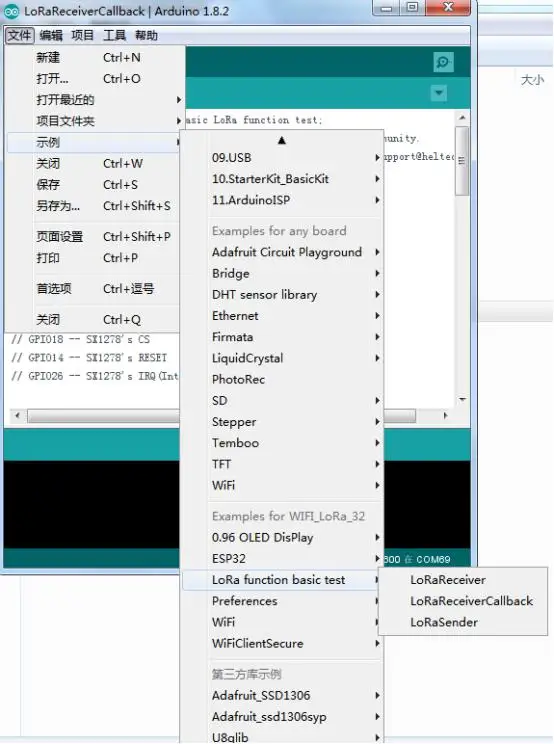

Use Legend
TTGO 868 / 915Mhz 0.96 Inch OLED LORA32 B WIFI SX1276 ESP32 Module - ANKUX.COM
