Title 433/315mhz receiver module ook,2.4ghz wireless audio transmitter receiver module 12 channels
Modulate Mode ASK
Operating temperature -25~75
Current 10mA
Battery Model 27A
Working Voltage DC12V (27A battery a including)
Sensitivity >=115dBm
Input Voltage DC3.3~5.5V
Quiescent Current ≤ 8mA
The transmission power <= 100 mw
Working Frequency 315Mhz-433.92MHz
Transmit distance 50-100m
Decoder IC type EV1527
Matched remote type 16 EV1527 transmitter
Output Channel DO, D1, D2, D3, D4, D5, D6, D7
Guarantee 3 Years

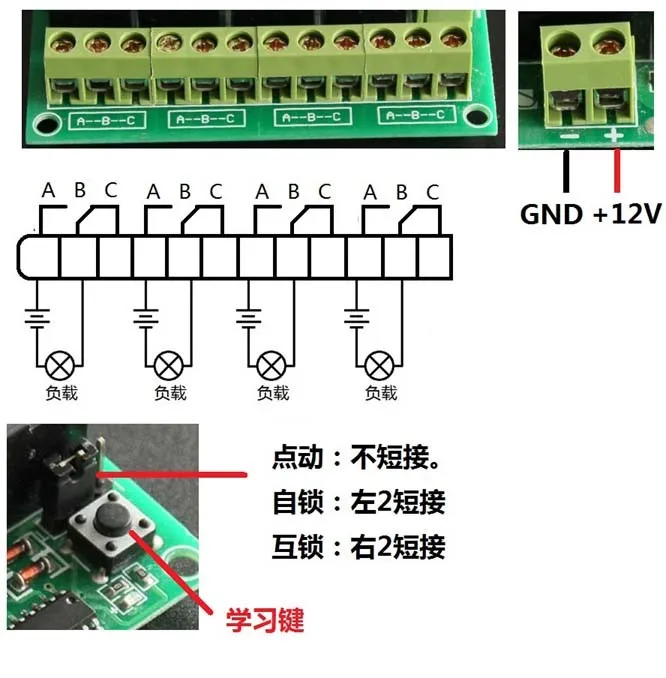

Learing Key press L1 for 3Seconds, the indicator light twinkle, leave L1 button, press any botton of the
remote control the indicator light twinkle means complete the studying.SW learning key move outside.
Remark STC Integrated chipo Can ffee choosing output mode.
The encoding type Self Copy
Product Size Fingle size mini remote
Packing 1pc/color box 500pcs/catorn or 100pcs/carton
Carton Dimension 42*39*37(1000pcs) 42*39*20cm(500pcs)
Certification ISO9001:2008, CE&ROHS, FCC, RED
Usage
garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products
Characteristic 1.Manufacture Factory
2.Offical Certification
3.Surge Protective function
4.OEM /ODM Service
5.Crusts/ frequency can be chosen.6.Can print customers LOGO.
SpecificationsHow to programEV1527 Learning remote technical informationSupport Learning Code(1527) Common Chip, such as, PT1527, EV1527, etc. Compatible with the most of 1527 Remote Control Relay Panel.
Stable circuit, high accurate and high-effective, individuation and humanization design, bringing you much convenient.
Adopts imported high-frequency triode, owning 13dbm Transmitting Power.
Easy to use: Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.
Widely Use: Perfect Suitable for controlling electrically operated gate, retractable door, garage door, electric curtain automobile, motorcycle and other telecommand equipments
Note:
1.This remote control only support the learning code (1527) of the receiver
2.This remote can not be programmed.
3.It will not work if you only buy the transmitter. it is parts of the remote control system, it needs work with the Remote Control Relay Receiver module to achieve controlling.
4, You can but this remote to learn to your learning code 1527 receiver, or you can also buy the receiver from us, good paired.
