Thingoo smallest bluetooth nRF52805 low energy bluetooth beacon programmable module zigbee iot manufacturers

IoT / ZigBee

Certifications
Thingoo smallest bluetooth nRF52805 low energy bluetooth beacon programmable module zigbee iot manufacturers - ANKUX.COM

Thingoo module can save your money up to US$8000!
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000!
Thingoo smallest bluetooth nRF52805 low energy bluetooth beacon programmable module zigbee iot manufacturers - ANKUX.COM

Features
Chip
Nordic nRF52805
CPU
ARM Cortex-M4 processor
Bluetooth version
5.0
Antenna type
PCB
TX Power
Max. +4dBm
Protocol
UART
Range
Up to 60-meter in open space

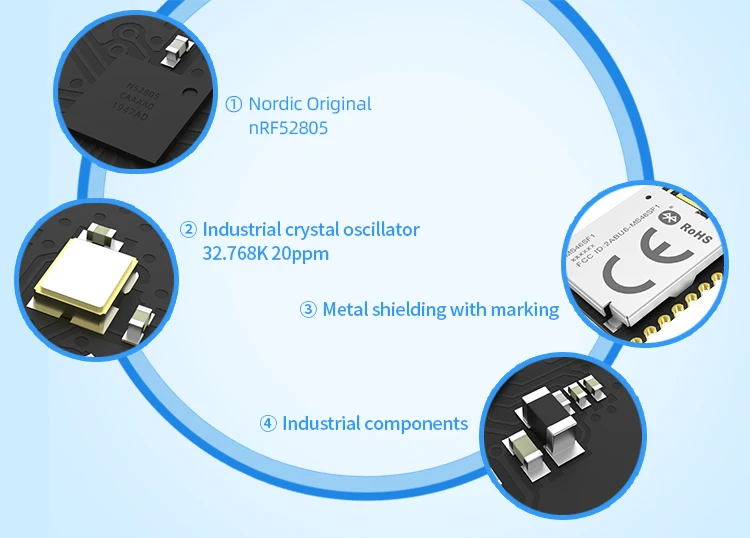

Metal shielding with marking
15.8 x 12.0 x 2.0 mm
2400-2483MHz

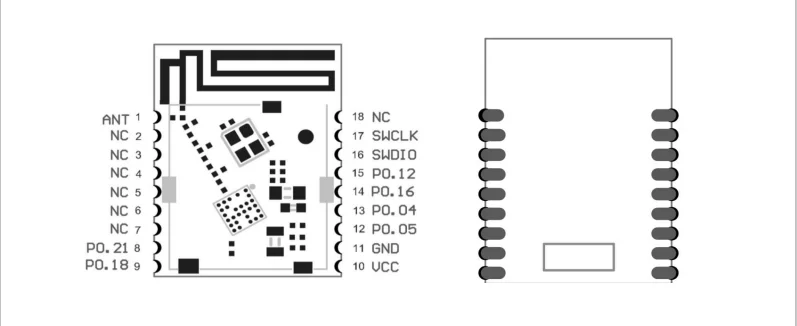

Pin Description
Thingoo smallest bluetooth nRF52805 low energy bluetooth beacon programmable module zigbee iot manufacturers - ANKUX.COM

Symbol
Definition
Description
Pin 1
ANT
Connect pin for external antenna
Pin 2 to Pin 7
NC
Pin 8
P0.21
UART TX
Pin 9
P0.18
UART RX
Pin 10
VCC
VCC
Pin 11
GND
GND
Pin 12
P0.05
CON_IND
Pin 13
P0.04
FIFO_FULL
Pin 14
P0.16
SLP
Pin 15
P0.12
BTDATA
Pin 16
SWDIO
Serial wire debug clock input for debug and programming
Pin 17
SWCLK
Serial wire debug I/O for debug and programming
Pin 18
NC
Application
Thingoo smallest bluetooth nRF52805 low energy bluetooth beacon programmable module zigbee iot manufacturers - ANKUX.COM

Packing & Delivery
Thingoo smallest bluetooth nRF52805 low energy bluetooth beacon programmable module zigbee iot manufacturers - ANKUX.COM

ANKUX Technology Limited is an electronic manufacturing factory that specializes in assembling a wide range of electronic products for various brands. Equipped with state-of-the-art technology and a skilled workforce, ANKUX is committed to delivering high-quality, reliable products tailored to meet the specific needs of its clients. The factory focuses on efficiency and innovation, ensuring that every assembly process adheres to strict quality standards. With a strong emphasis on customer satisfaction, ANKUX works closely with brands to develop custom solutions that enhance their product offerings and drive market success.
