Certifications

Thingoo module can save your money up to US$8000!
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000.
Accessories



Frequency
2400-2483MHz
Max Output Power
+8dBm
Single Power Supply
1.8-5.5V
Transmitt Range
MAX.300 meters @ 125kbps
GPIO Quantity
48

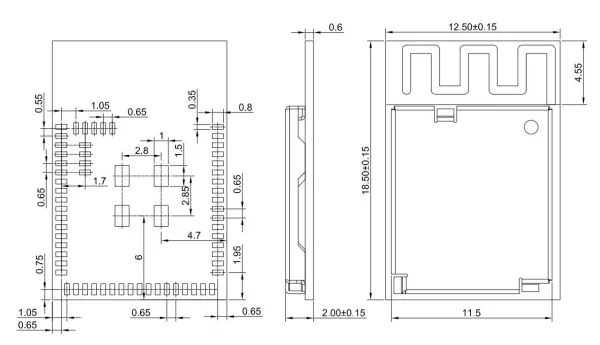

Module Size
18.5*12.5*2mm
Operating Temperature Range
-40 to 80 degree Cesius
Flash Memory/RAM
1M/256 KB
MCU
32-bit ARM CortexTM M4 CPU
Antenna Type
PCB
Range
1Mbps: up to 250 meters in open space
125kbps: up to 300 meters in open space
Receiver Sensitivity
-96 dBm
TX power
+8dBm to -20dBm
Certification
EPL/QDID,FCC,CE,IC,TELEC/MIC,RCM,WPC,RoHS, REACH

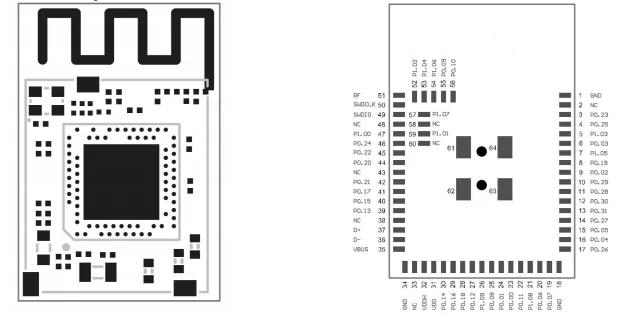

Pin Description

The definiton of GPIO can refer to Nordic chipset specication of nRF52833.
