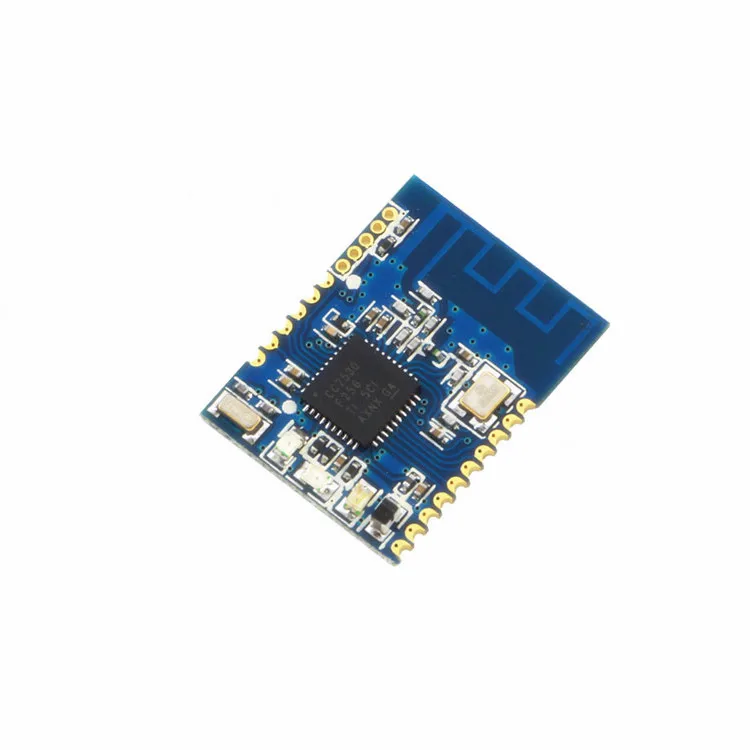

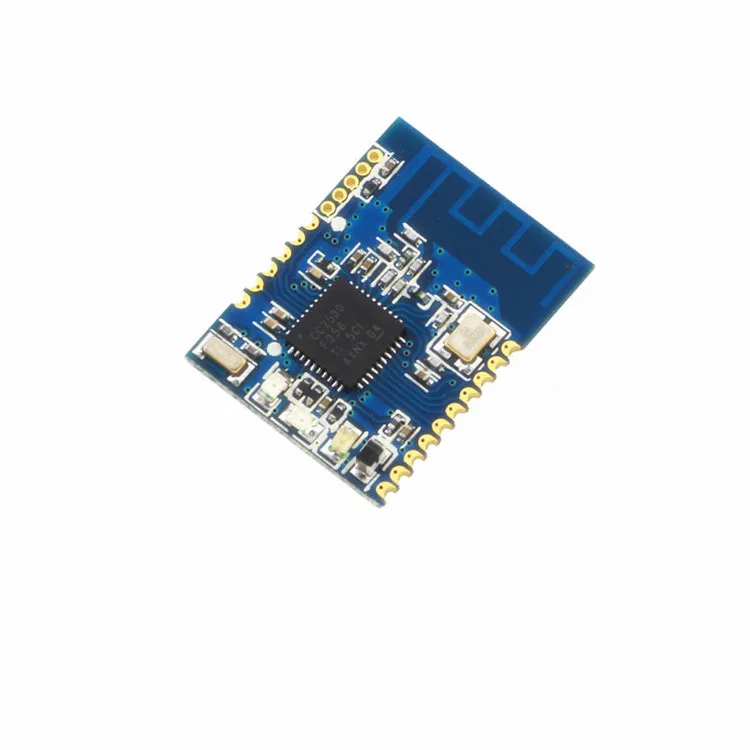

Taidacent home sensor network zigbee light link 2.4 GHz IEEE 802.15.4 rf transceiver uart cc2530 price of zigbee module Chip Selection Cc2530
Working frequency band 2400~2450MHz (16 channels total)

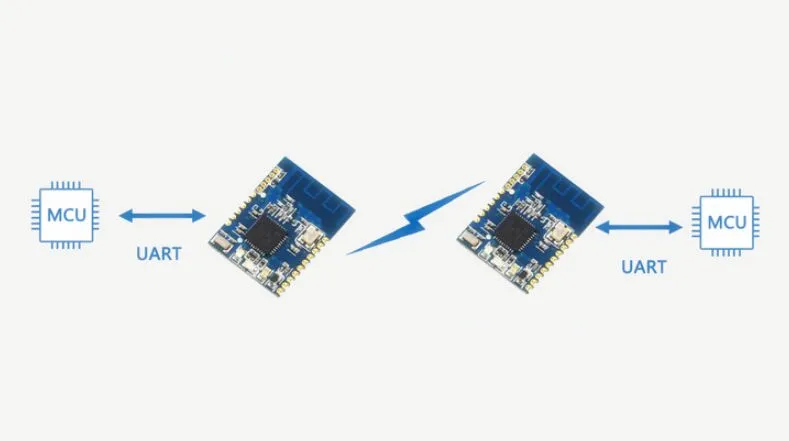

Communication interface UART serial port (supports baud rate 13 kinds of 12400, 4800, 9600, 14400, 19200, 28800,
38400, 57600, 115200, 230400, 125000, 250000, 500000)
96 points that can be accommodated
Maximum packet length 163Byte
Transmission capacity 2400Bit/s when each packet contains 3 bytes of data
Maximum transmission rate 250KBit/s
Air delay 250KBit/s
Transmit power 14. 5dB
Working voltage 12. 5V~3. 6V
Operating current is less than 30mA
Antenna interface PCB antenna
Self-organizing network maximum hops 115 hops
The single-hop transmission distance is 170 meters (outside air and no occlusion test). The typical value is 190. When the network tends to be dense, the number of nodes decreases, and the minimum value
Max transmitter 250KBit/s
Transmitter power 4.5dbm
Working voltage 2.5V to 3.6V
Working current less than 30mA
Antenna Pcb antenna
