square metal 40w 12-38v 950ma wireless zigbee dimmable led driver


AHLD503-Z-U-PRO is a kind of ZigBee HA standard dimming driver for single color dimmable and CCT adjustable lights. With OTA function, this ZigBee driver is mainly applied in home, office, commercial and industrial lighting projects for smart control purposes.

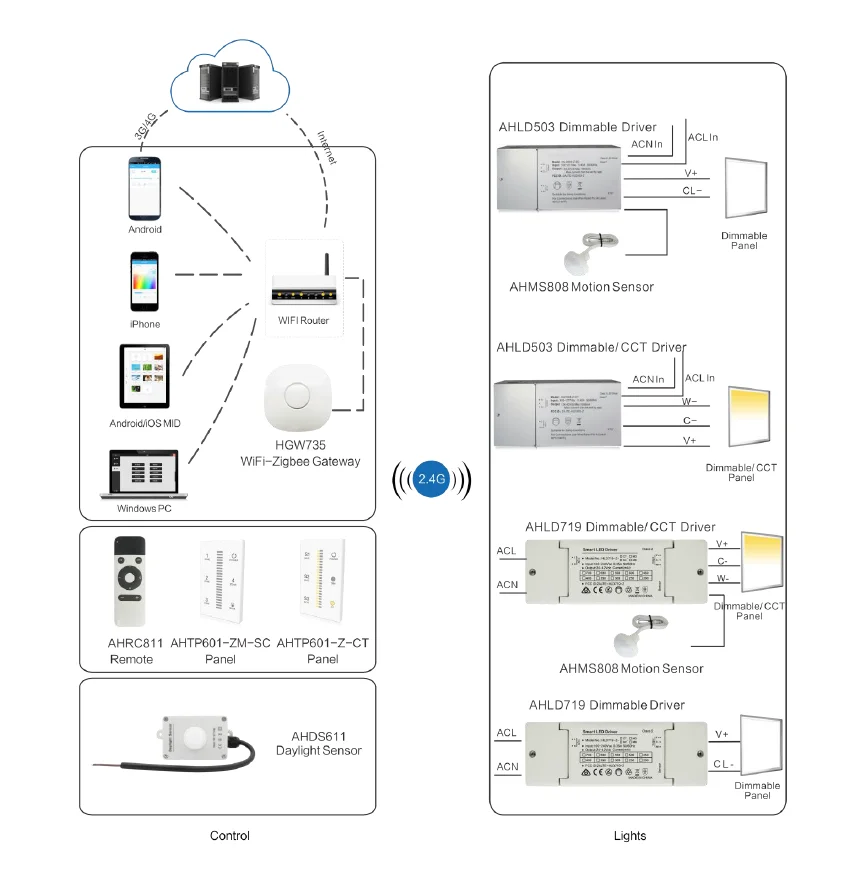

It works with Amelech"s ZigBee lighting control system to achieve long-distance controlling led lights by Mobile Phone, Tablet, PC, Touch Switch, Remote Control, Daylight Sensor and Motion Sensor.




Caution: Please cut off the main power while installing!

Note: Current can be set by an Android APK.

Terminal
Comment
AC Input
L
AC 100V-277V
N
LED DC output
W-
2Channels for color temperature adjustable light.
(Common Anode).
C-
V+
Sensor in
RJ12
Sensor input by RJ12
(Sensor Model:AHMS808/ AHMS809/ AHMS616)


Part Number
Dimmable Version
CCT
Version
Sensor Interface
Motion Function
Daylight
Function
AHLD503-Z-SC-PA-U-PRO
Y
-
-
-
-
AHLD503-Z-SC-MB-PA-U-PRO
Y
-
Y
Y
Y
AHLD503-Z-SC-MD-PA-U-PRO
Y
-
Y
Y
-
AHLD503-Z-CT-PA-U-PRO
-
Y
-
-
-
AHLD503-Z-CT-MB-PA-U-PRO
-
Y
Y
Y
Y
AHLD503-Z-CT-MD-PA-U-PRO
-
Y
Y
Y
-

Type
Definition
AHLD503-Z-SC-PA-U-PRO
SC Version-US
AHLD503-Z-SC-MB-PA-U-PRO
SC Version-US work with motion sensor
AHLD503-Z-SC-MD-PA-U-PRO
SC Version-US work with motion & daylight sensor
AHLD503-Z-CT-PA-U-PRO
CCT Version-US
AHLD503-Z-CT-MB-PA-U-PRO
CCT Version-US work with motion sensor
AHLD503-Z-CT-MD-PA-U-PRO
CCT Version-US work with motion & daylight sensor

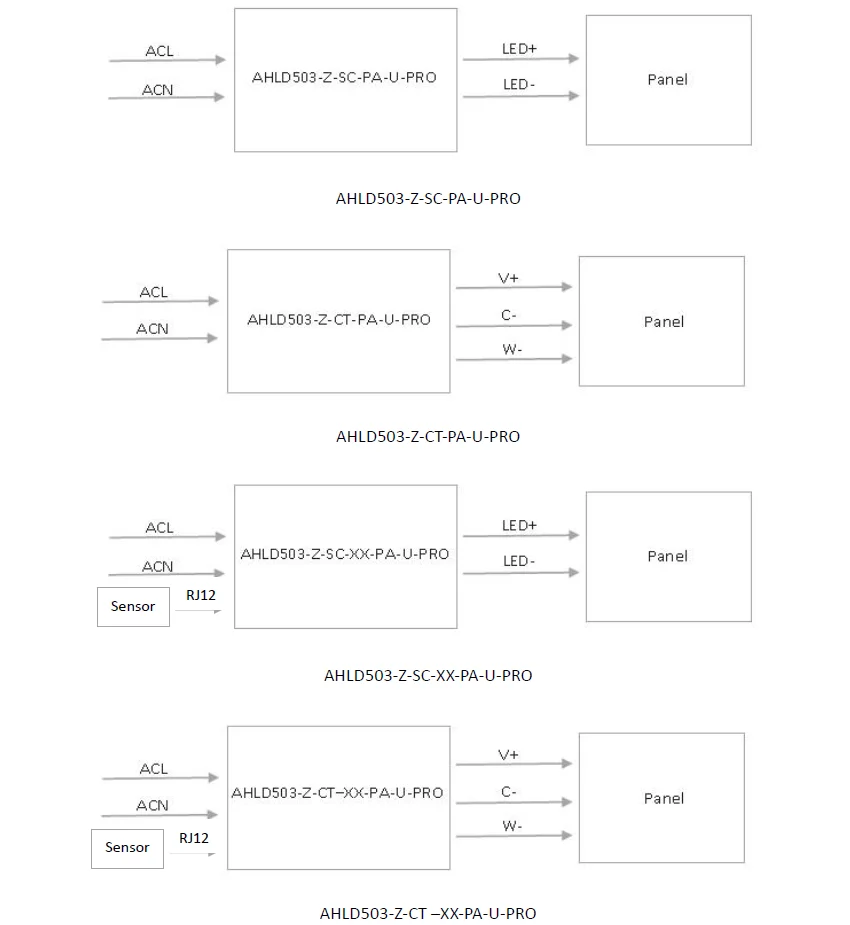

Parameters
AHLD503-Z-XX-XX-PA-U-PRO
Input power
100-277VAC
Channels
2 Channels or 1 channel
Output Current
1050mA MAX (CCT version)/ 1200mA Max (Dimmable version)
Output DC
24-42V
PF
> 0.9
EFFICIENCY
Max 85%
Wireless frequency
2.4GHz
Operation temperature
-20°C to 55°C
No land power
<0.5W

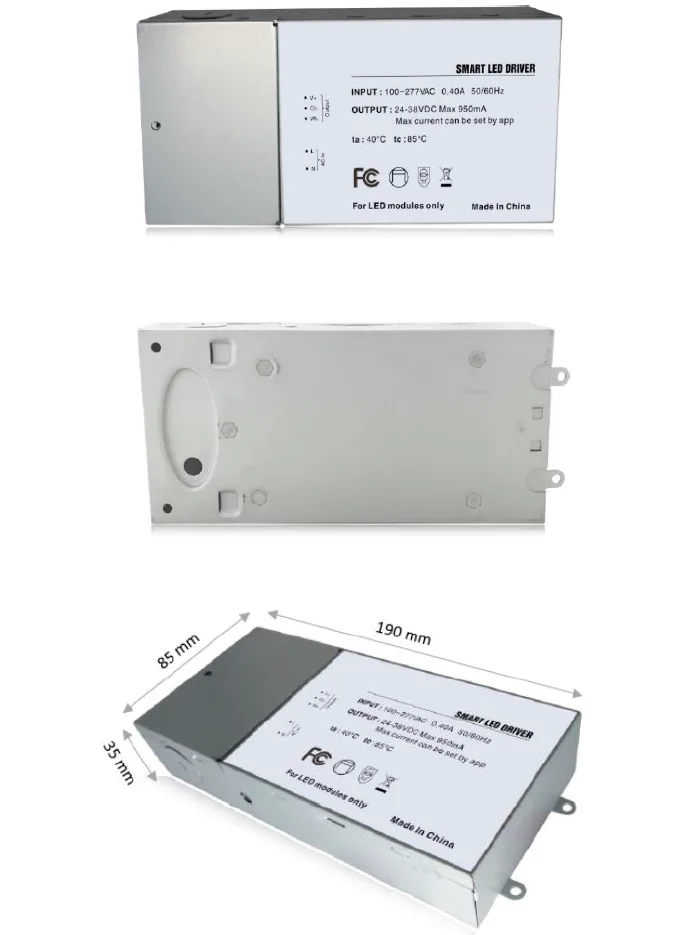

Size: 190x85x35mm
Gross Weight: 450g
Package: 1pc/ package
iLightsIn Pro Product List:
Zigbee-Ethernet Gateway: AHGW735
Controller
IP20 ZigBee 0-10V/ 1-10V/ PWM Dimming Controller: AHLC610-Z-SC-XX-XX-XX-PRO
IP65 ZigBee Round 0-10V/ 1-10V/ PWM Dimming Controller: AHLC734-Z-SC-A-XX-PRO
IP65 ZigBee 0-10V/ 1-10V/ PWM Dimming Controller: AHLC612-Z-SC-A-PRO
Zigbee 12VDC 0-10V Dimming Controller: AHLC606-Z-PRO
ZigBee Triac Dimming Controller: AHLC721-Z-PRO
ZigBee 3 Channel On Off Controller: AHLC614-Z-PRO
ZigBee 12V/ 24V RGBCW/ RGBW/ RGB/ CCT/ Dimming Controller: AHLC502-Z-PRO
Zigbee Single Phase 2-Wire Din Rail Circuit Breaker: AHCB818-Z-PRO
Driver
ZigBee 80W Dimming/ CCT Linear Driver with Power Metering: AHLD816-Z-XX-PRO
ZigBee 40W Dimming/ CCT Linear Driver with Power Metering: AHLD817-Z-XX-PRO
ZigBee 40W Dimming/ CCT Driver: AHLD503-Z-XX-PA-T-PRO
ZigBee 25W Dimming/ CCT Driver: AHLD719-Z-XX-PA-XX-PRO
ZigBee 15W Dimming/ CCT/ RGB/ RGBW/ RGBCW Driver: AHLD728-Z-XX-PRO
ZigBee 13W Dimming/ CCT Driver: AHLD812-Z-XX-PA-PRO
Sensor
ZigBee Standalone AC100V-277V/ DC12V IP65 Daylight Sensor: AHDS611-Z-PRO
ZigBee Round Standalone AC100V-277V IP65 Daylight Sensor: AHDS826-Z-PRO
ZigBee Round Standalone AC100V-277V IP65 CCT Daylight Sensor: AHDS826-Z-CT-PRO
ZigBee Standalone AC100V-277V IP65 15M Motion Sensor: AHMS823
Wired DC5V IP20/ IP65 15M Motion Sensor: AHMS810/ AHMS810-P
Wired DC5V IP20 15M Motion Sensor: AHMS616
Wired DC5V IP20 8M Motion sensor: AHMS808
Switch/ Remote control
ZigBee HA1.2 EU/ US 6-Scene Touch Switch: AHTP501-Z-6S-PRO/ AHTP601-Z-6S-PRO
ZigBee HA1.2 EU Dimming/ CCT Touch Switch: AHTP501-Z-XX-PRO/ AHTP501-ZM-XX-PRO
ZigBee HA1.2 US Dimming/ CCT Touch Switch: AHTP601-Z-XX-PRO/ AHTP601-ZM-XX-PRO
ZigBee HA1.2 EU 1/ 2/ 3-Channel On Off Touch Switch: AHTP501-Z-1/ 2/ 3S-PRO
ZigBee HA1.2 US 1/ 2/ 3-Channel On Off Touch Switch: AHTP601-Z-1/ 2/ 3S-PRO
ZigBee HA1.2 4-Channel Dimming/ CCT Remote Control: AHRC811-Z-PRO
Bridge
ZigBee 0-10V/ RS232/ Dali/ Dry contract/ L/N Detect Bridge: AHBG806-Z-PRO
ZigBee DC5V RGB Lights Music Dancing Audio Bridge: AHBG813-Z-PRO
