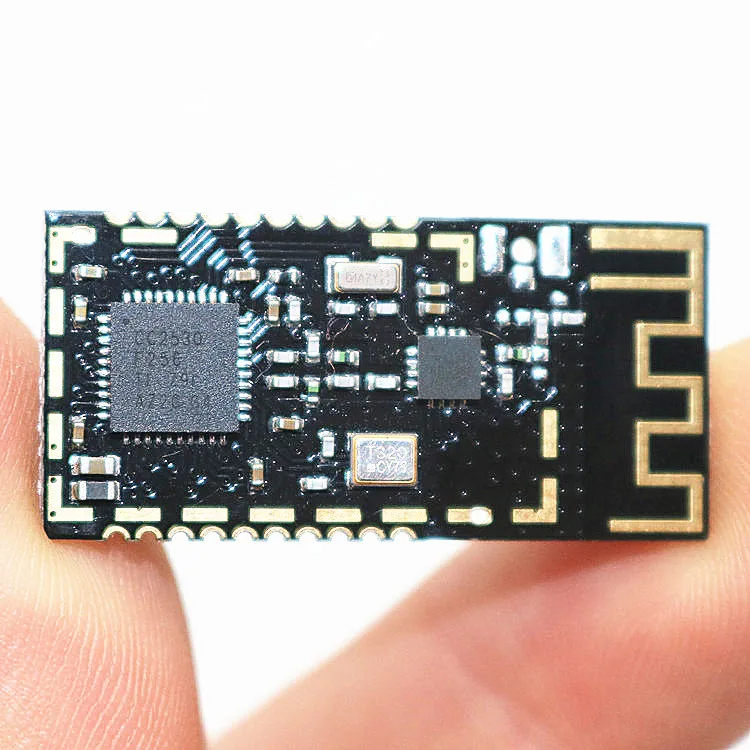

SQIVO High anti-interference and Low BERCC2530 2.4GHz Zigbee Module
We offer OEM/ODM service for iot wireless modules, PCB & PCBA manufacturing.
Antenna type
IPEX
50Ω characteristic impedance
Operating temperature
-40 ~ +85
-
Operating humidity
10% ~ 90%
Relative humidity,No condensation
Storage temperature
-40 ~ +125
-CC2530 2.4GHz
Size
16.0 * 22.5 mm
-CC2530 2.4GHz Zigbee
Weight
1.5g
-CC2530 2.4GHz Zigbee Module
Connector
3*8*1.27 mm
SMD
Operation Range
About 1000m
Test condition: clear and open area& 20dBm, antenna gain:5dBi, height: 2m, air data rate: 250kbps
Communication interface
I/O
See details in Pin definition
Transmitting length
1 ~ 103 bytes
For one package
Receiving length
1 ~ 103 bytes
For one package


Introduction
RFS200 is a High Performance and long range PA/LNA versions of ZigBee module with the connection of external antenna and onboard chip antenna which features the SOC + PA solution from TI
User can integrate the module into any device without the need for RF experience and expertise, and complex software engineering. It"s very easy to add powerful Wireless networking capability to your products and quickly bring them to market.

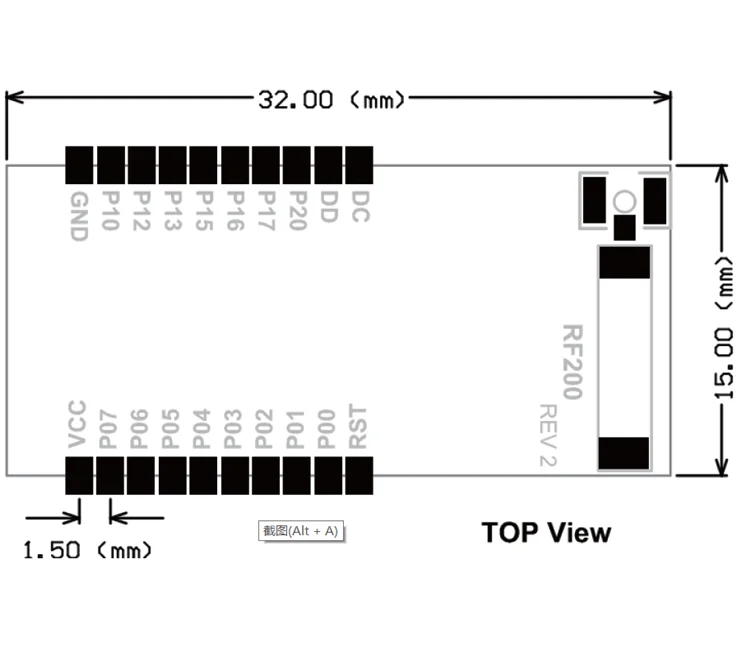

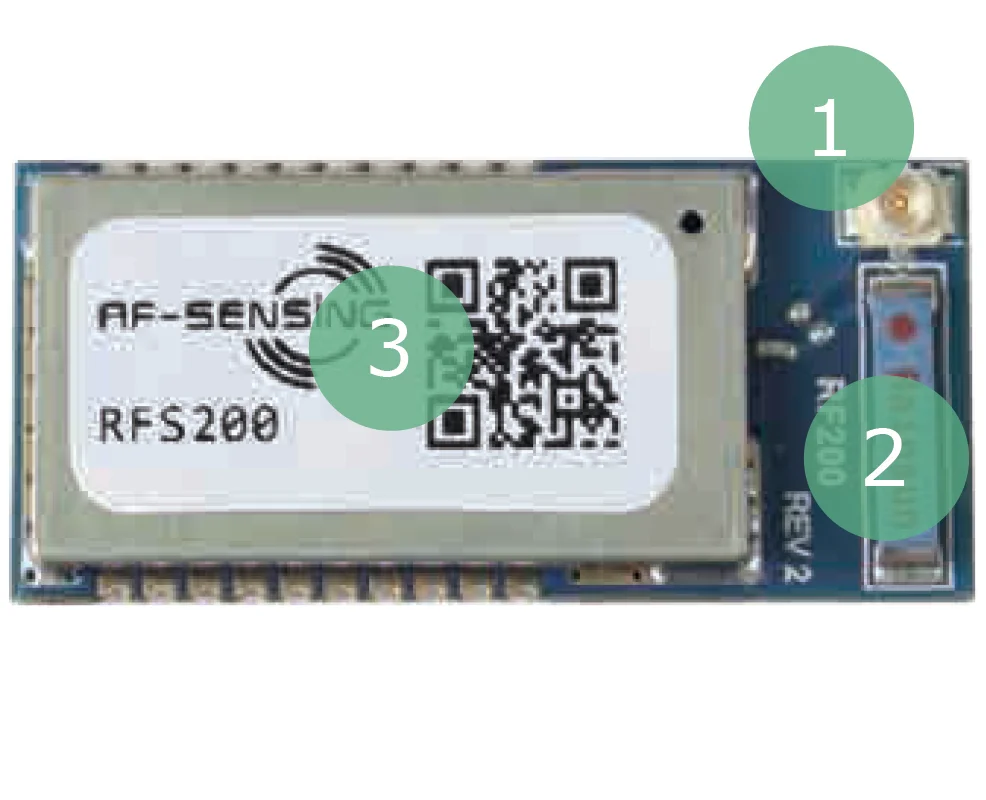

Pinout information
1) Male UFL connector for external antenna
2) Chip antenna
3) RF shield

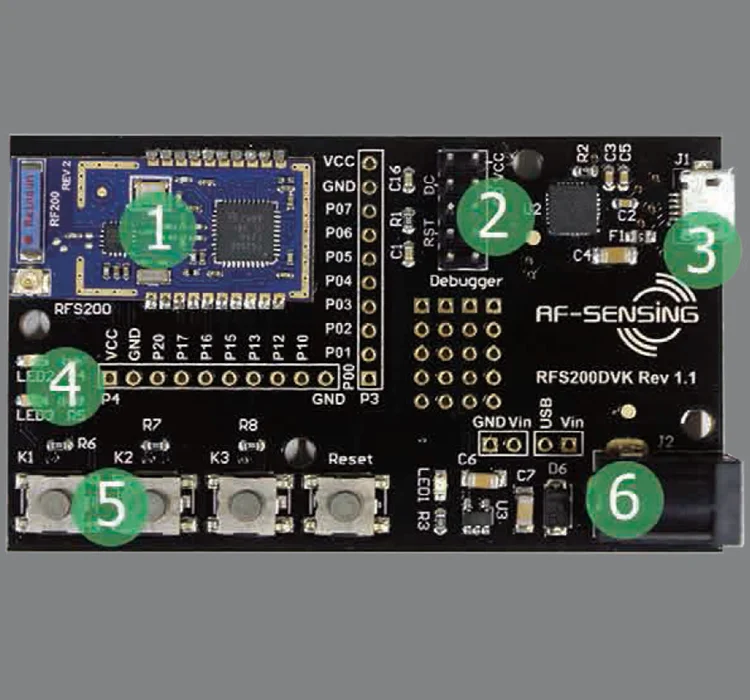

RFS200 development board

1. RFS200 Zigbee module with Power Amplier
2 Programming Connector - used to program the RFS200 module
3 USB Port - The USB serial port allows connectivity to a PC.
4 LEDs - Optional LED"s for power, zigbee Activity.
5 User Buttons and Reset Button
6 Power Jack 5-12V DC
iot wireless module
wireless module iot
cc2530 wireless module

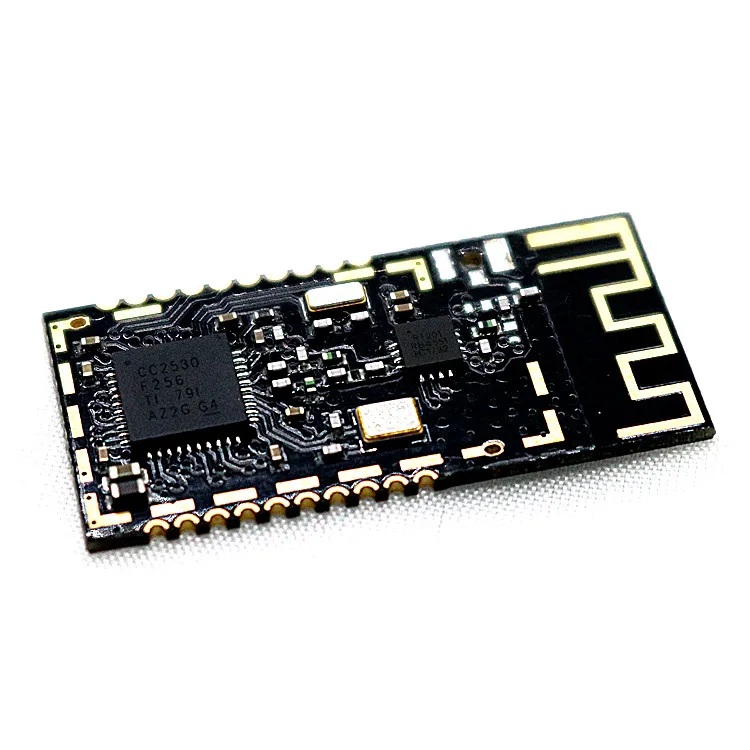

Module Feature
- Small Size, SMT module 32 x 15 x 2 mm
Available with an on board antenna or an external antenna
256 KB internal Flash and 8 KB RAM
16 general -purpose I/O lines
Hardware supported encryption (AES-128)
Operating temperature range: -40°C to 80°C
Current consumption below 1µA in deep sleep mode

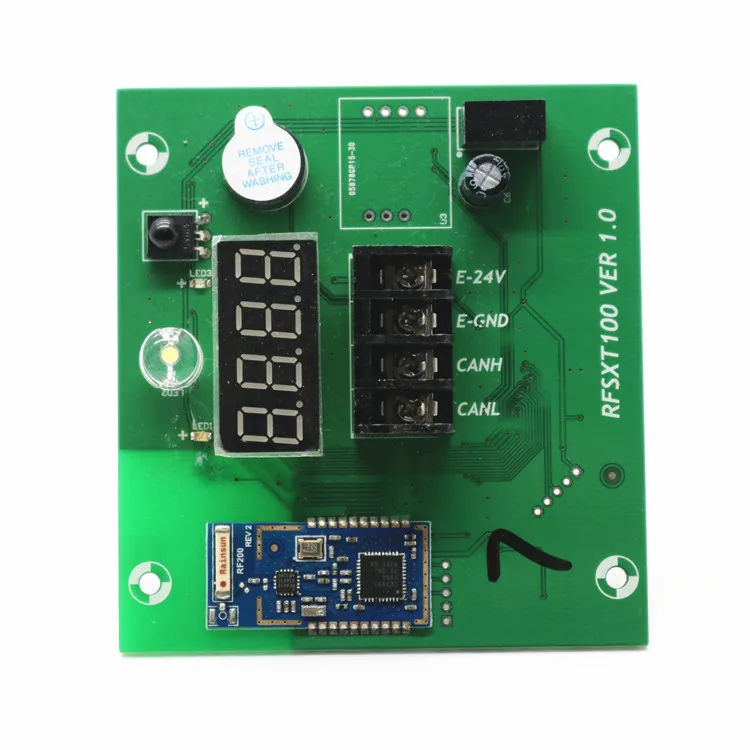

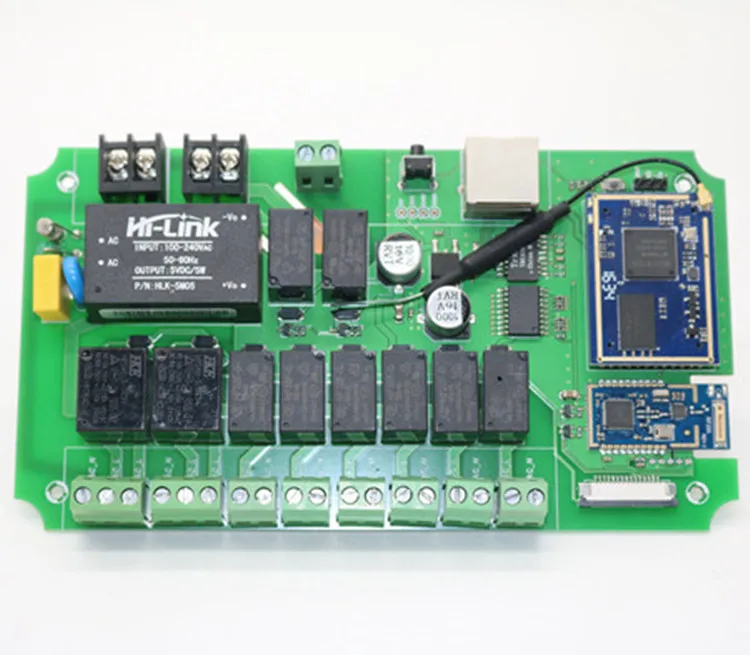

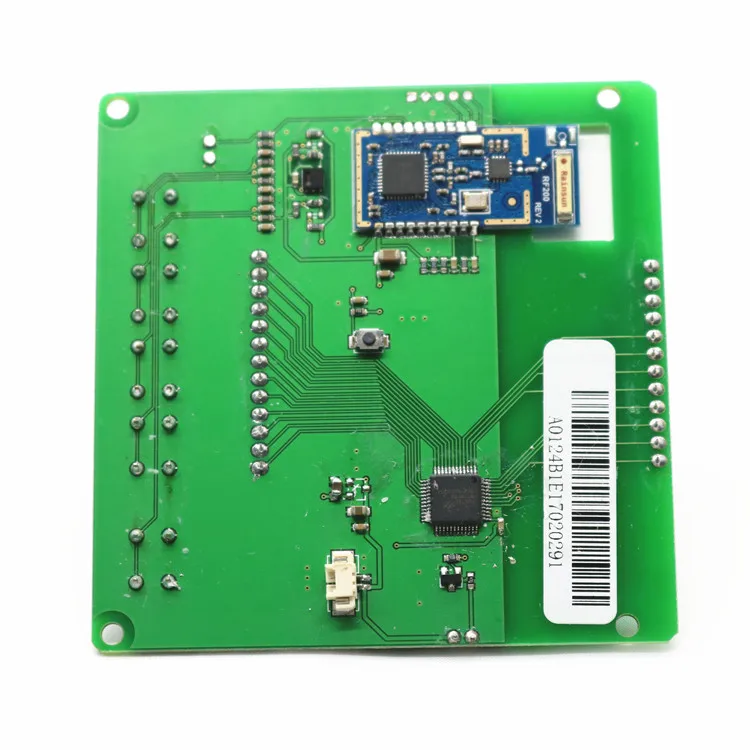

PCB that used our modules







Radio Feature
Based on the TI CC2530 single chip ZigBee®/IEEE802.15.4 solution
2.4GHz ISM Band
250kbit/s over the air data rate – NB: actual usable data throughput with ZigBee is about 20kbps
16 channels (802.15.4 Channel 11 to 26)
Output power: up to 20 dBm (with power amplifier)
Communication range: Up to 1000 meters with external antenna
RF4CE remote control systems
Home/Building automation
Lighting systems
Industrial control and monitoring
Low-Power wireless sensor networks
Automatic meter-reading system
M2M Industrial Controls
Wireless Alarms and Security
