Sound +Light alarm zigbee water leak detector smart water leak alarm water leak detection detector

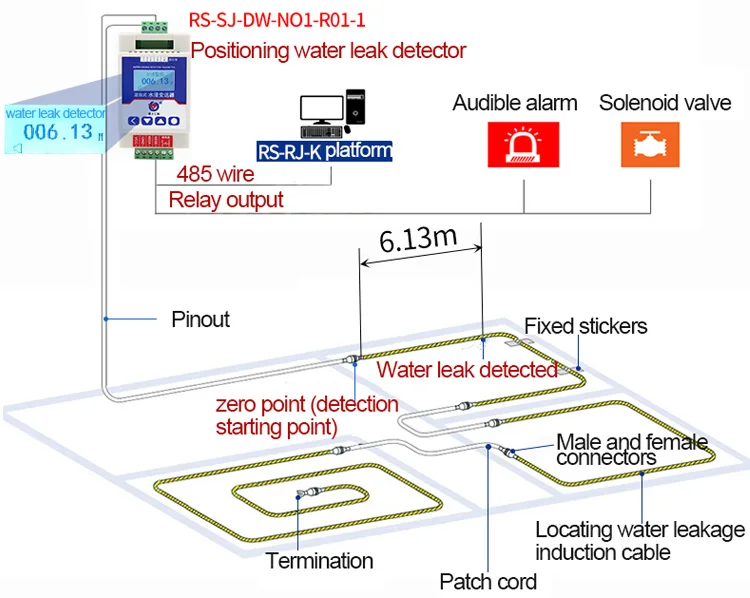

RS-SJ-DW-N01-R01-1 water leak detector adopts the standard Modbus-RTU protocol, can detect a liquid leakage sensor cable up to 200 meters in length. The cable immediately sounds the alarm after detecting the liquid leakage and transmits the alarm signal to the integrated terminal while attracting the relay, and displays the position of the water leakage on the LED screen. The LED screen adopt 128*64 high-definition display LCD screen, which can intuitively check the location of water leakage.



Supply voltage
10-30V DC
Power
0.35W
Positioning display
LED screen display
Relay load capacity
250V 10A
Serial interface
Standard MODBUS-RTU communication
working environment
-30~60, 10~80%RH (no condensation)
Storage environment
-20~50, 10~80%RH (no condensation)
Installation method
35 rail installation
Detailed Images

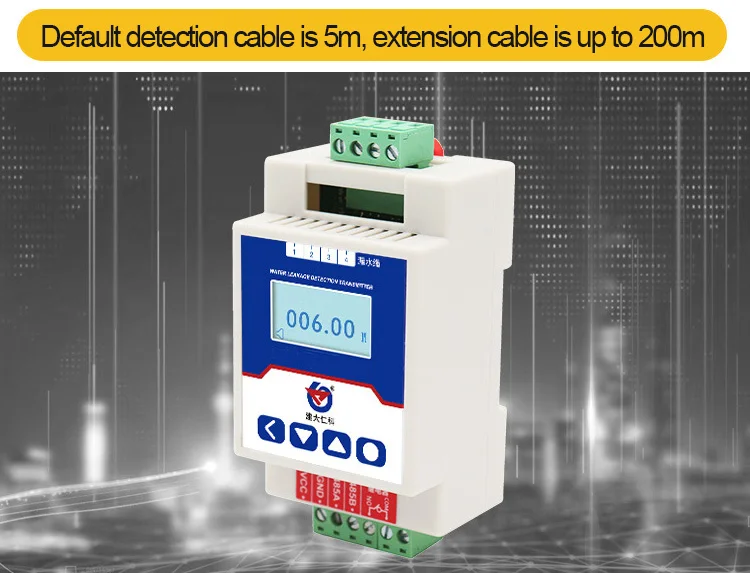

FEATURES:1.The product adopts the standard MODBUS-RTU communication method, which can support 2000 meters communication at the farthest.2.Alarm mode: relay, sound alarm, RS485 mode alarm, LCD screen display alarm3.The LCD screen adopts 128*64 high-definition display LCD screen, which can visually check the location of water leakage.4.The device sensor detects that the minimum cable length is 5 meters, and the maximum cable length can be extended to 200 meters.


Installation Instructions

Symbol
Explanation
Serial number
Explanation
Water leaking rope 1
Red line
VCC
Positive power supply (10-30V DC)
Leaky rope 2
Green Line
GND
Negative power supply
Water leaking rope 3
Yellow line
485A
485 signal line A
Water leaking rope 4
Black line
485B
485 signal line B
Relay NO
Relay interface
