smart wireless nb-iot digital lorawan water meter

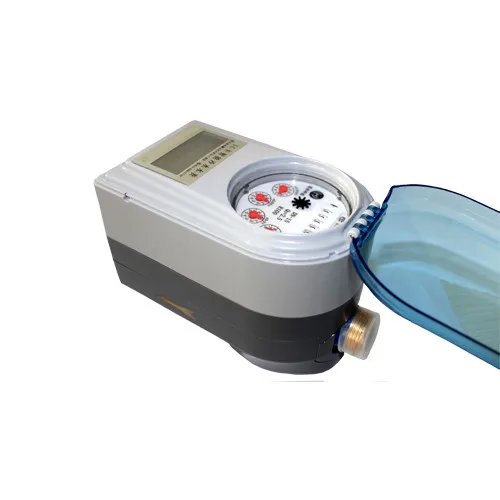

Rural security drinking waterproof intelligent water meter (can be configured as: NB iot remote water meter, LoRa remote water meter, bluetooth meter, one-piece meter) by my company for rural water environment, table should not be installed a narrow viewing environment, open hole medium environment specially designed an "underground installation, operating inoue" multi-function meter, design concept is to display and data read and write module of intelligent water meter, water meter control module, waterproof battery components installed in a waterproof container, such as hanging well or wall, its base table part installed in downhole, waterproof performance is superior, can be soaked in water for a long time running water meter (known as diving). Part of the intelligent module is connected with the base table by waterproof signal line, which can work in the water for a long time. This water meter has super waterproof performance and can record all kinds of operation conditions of the meter. It can help the water supply management department to improve management efficiency, and at the same time, it can really solve the problem that the water meter cannot be used in the underground for a long time. High-power military-grade waterproof battery + ultra-low power consumption design, greatly improve the service life of the water meter, known as the first choice of rural security drinking water meter.
Rural security drinking waterproof Ann intelligent water meter after generations of improvement, research and development to produce dry, wet, and cloud flag series to meet different customer needs more flow dry, waterproof, moistureproof, prevent magnetic attacks and antifreeze performance effectively increased by more than 99%, in the same industry in the advanced position, single order 100000 rural security drinking waterproof intelligent water meter, break through the national rural security drinking order record, become a national rural reform to promote the brand.Rural security drinking water meter has won the favor of the more than 5000 water supply companies.

Feature
Performance characteristics
1. Super waterproof performance:
The waterproof grade reaches IP68, and all parts of the water meter are designed to be completely sealed, effectively isolated from the external environment. Water and moisture will not enter into the electric valve and signaling device, so as to ensure the normal and effective work of the electric valve and signaling device for a long time. Can adapt to soak, spray and other harsh environment for a long time.
2. Design of waterproof plug for external lead:

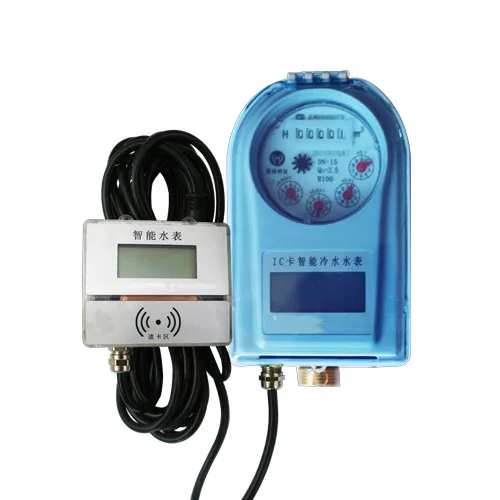

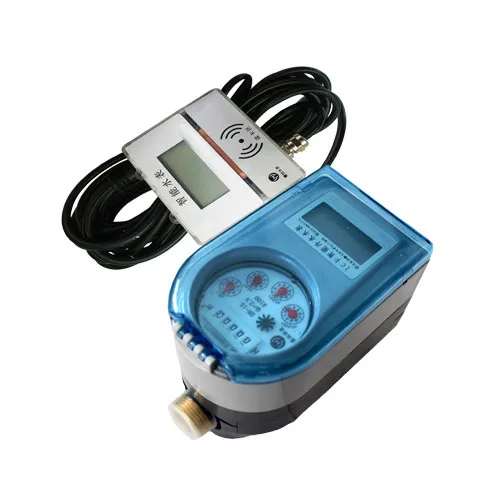

Military grade waterproof plug (patented product) can be installed in any part of outer lead according to users requirement, which is convenient for installation and maintenance, and can achieve zero "maintenance". The electronic display part and card swiping part are extracted from the water well by installing waterproof box with external lead. The operator can complete the operation and data query without entering the water well.
3. Use of large-capacity ER18505 waterproof battery:
The battery in the rural waterproof intelligent water meter consumes a high amount of electricity in the rural environment. Our company adopts ER18505 and 3.6v waterproof battery with a capacity of 3500mAh. ER14505 and 3.6v waterproof battery with a capacity of 2000mAh are common in the market. The battery life of our company has been greatly increased, with a service life of 6 to 8 years.
4. Design of ultra-low power circuit board:
For the circuit board in rural security drinking waterproof intelligent water meter, our company adopts ultra-low power consumption circuit board design, and the most critical static power consumption in the battery life is less than 5uA(due to working 24 hours/day, the battery life accounts for more than 80%).
5. Super torque actuator (suspension electric ball valve) :
The ball core of electric ball valve and valve body adopt suspension structure. With the structure characteristic of "anti-lock", the control current is greatly reduced, and no scaling and rust death occurs. High power valve design, torque than the original increase of 3 times, ensure the smooth opening and closing valve in place to avoid the valve stuck. In the electric valve after scaling or small impurities through, not easy to switch the electric valve stuck.
6. Convenient operation and maintenance:
The control part of the water meter is drawn out of the well, and the person does not need to enter the well to operate. The electronic control part can realize fool maintenance and zero maintenance, and the user can swipe the card outside the well to facilitate the clear reading of operation data.
7. Technology that can work in water:
Disconnecting the rural security drinking waterproof intelligent water meter, we can see the following unique sealing technology, which ensures that the water meter of our company can work in water: the water meter shall meet the requirements of IP68 (the test water meter shall be immersed in tap water for 72 hours after 3m without affecting the normal work of the water meter). Its sealing includes: "battery hot melt glue full sealing technology", "valve motor rubber ring full sealing technology", "liquid crystal screen and air isolation full sealing technology", "sampling reed tube full sealing technology", "wiring head full sealing technology", "military waterproof plug technology" and so on.

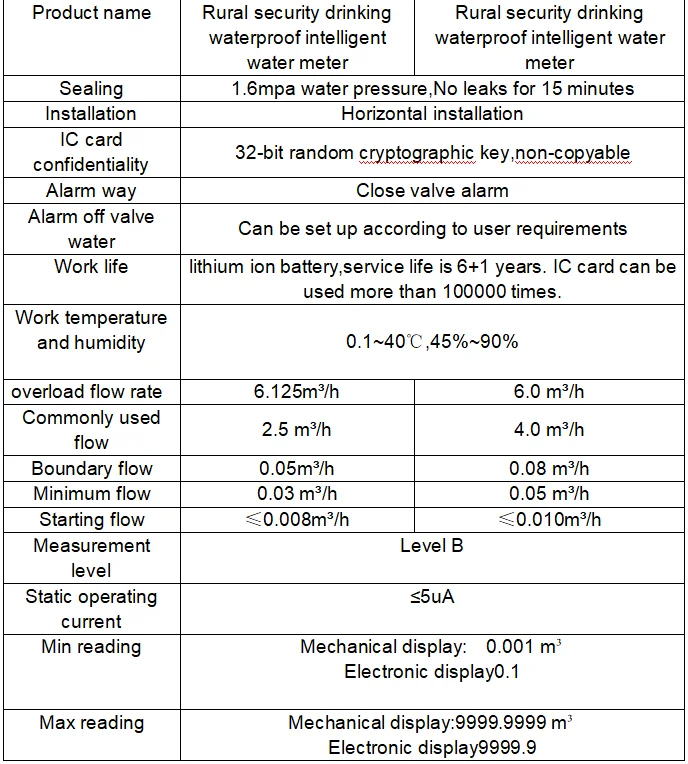

Parameter
Packaging & Shipping
FAQ Q:Why choose you?
A:We have professional team of worers,service and inspection,and we have our own factory.
Q:Can I get samples?
A:Of course,we provide the small size sample free.
Q:Could you print our company logo on the nameplate and package?
A:Yes,we can
Q:Where is your factory located?How can I visit there?
A:Hebei Juyuan Machinery Technology Co.,Ltd is located in our capital Beijing city.All our clients,from home or abroad,you are most welcomed to visit us!
Q:How many colors of body are avaliable?
A:We have own spraying equipment,so we can do custom colors as your special request.So any Prantone color is avaliable.You just need to tell me your favorite Pantone color.
Q:Will you save my mold for future orders?
A:Yes.Once we creste your mold.you can use it as many times as you like at no cost for future orders.As long as you keep the same design there is never any new molding fees.
Q:Do you offer customized packing?
A:Yes!All of our products can be packed as your requirement.
