Introduction

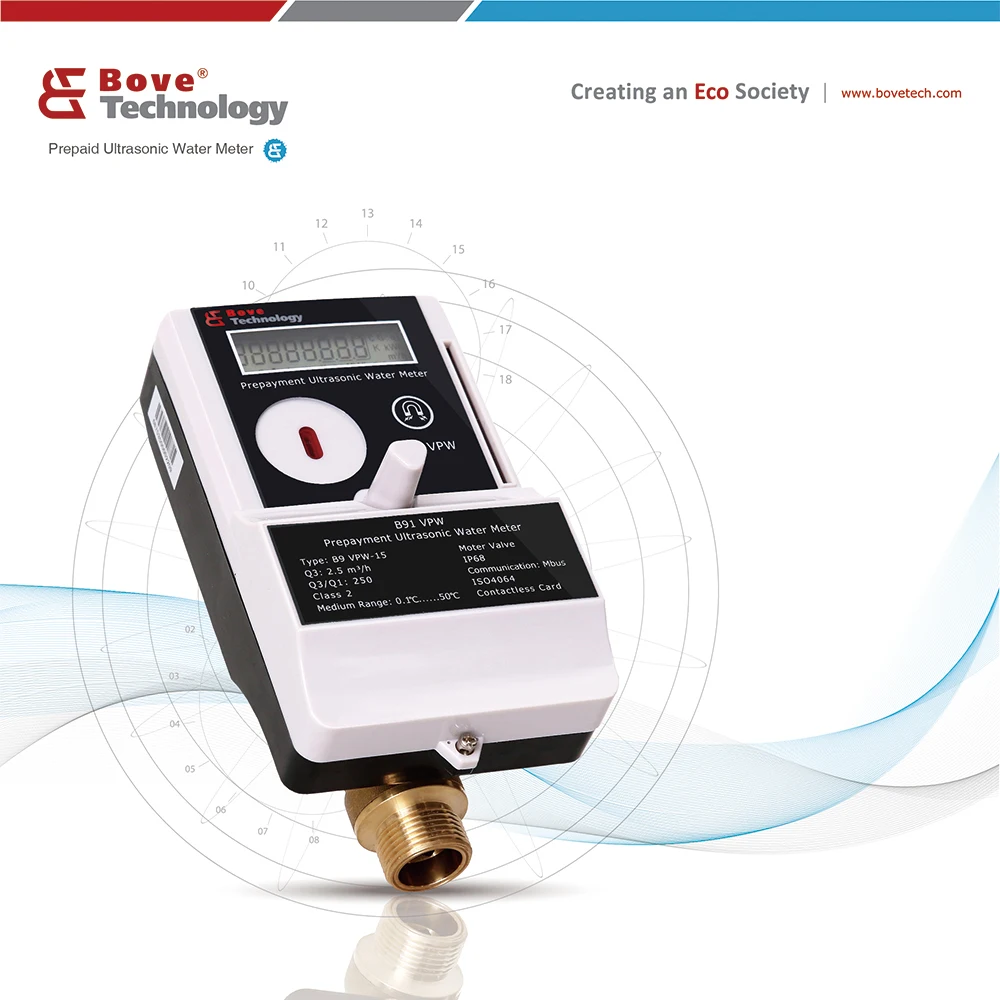

B91-VPW launched by BOVE combines years" experience in metering research and development, adopting state-of-the-art technology and sophisticated production. It has been proven that B91-VPW is reliable and absolute matured achievement in high accuracy measurement and valve control.
In addition, the special compact design does completely assure the quality of water-proof protection. This proof is guaranteed even if it is installed under water in a long time. Moreover, the core engineering concept of B91-VPW aims at cutting down the budget on overall operating costs from remote meter readings. It also helps utility enhance its cash flow by collection of none-revenue-water (NRW).
1.The Solution for Addressing NRW
B91 VPW provide an all-in-one smart water meter solution, it offers up to R160 measuring range ratio (Q3/Q1) which is far better than standard mechanical water meter, smaller water flow rate can be measured to help utility collect every drop of water without any wastes. By adopting a ball valve B91 VPW is able to perform as a prepayment meter or remotely valve control meter, both approach bring values to utility by significantly increment of water bill collection.
2.Compact Design
Integration design of measuring part and bass ball valve in one meter, easy for installation, communication, maintenance, and transportation. B91 VPW can be installed either in horizontal or vertical direction by no loss of measuring accuracy. Water utility can choose IC card prepayment function, or remotely valve control for those who refuse to make water bill payment on time.
3.Flexible Life Time
B91 VPW presents either IP65 or IP68, and its body is fabricated from durable Brass 59-1 material. This robust design makes the B91 VPW maintenance-free and highly precise throughout its flexible 6 or 10 years battery life depends upon customers"needs.
4.Valve Control, self-cleaning (automatic valve on/off)
B91 VPW choose top quality ball valve with 7 stages quality check before dispatching. It is set to automatically rotate every 15 or 30 days depends upon the quality of water, as well as how frequently the customer consumes water. By this design the ball valve is eliminating the water scale adhering on ball valve.
5.AMR Ready (wired & wireless)
B91 VPW support multiple communication interfaces for both wired and wireless which suitable for any type of installation environment, e.g. MBus, RS485 (Modbus), Pulse, LoRaWAN(868MHz, 915MHz, 923MHz), NB, Sigfox, etc. These interfaces support bi-directional communication both for meter data reading and valve control.
With communication interfaces meter is easily integrated into Automatic Meter Reading (AMR), which provide reliable and scalable network to utility and bring down the meter reading cost for any application.
6.Water Proof, suitable for indoor and outdoor application
B91 VPW is designed with special material enclosure to sustain durable installation in rain, high humidity surroundings, and direct ultraviolet rays from the sun. No meter enclosure deformation in high temperature and high humidity by state of the art design of IP68 protection class of the B91 VPW water meter.
DIMENSIONS
Model
B91 VPW-15
B91 VPW-20
B91 VPW-25
B91 VPW-32
B91 VPW-40
Pipe Diameter
DN15
DN20
DN25
DN32
DN40
Minimum Flow Rate, qi (m³/h)
0.02
0.032
0.05
0.08
0.125
Permanent Flow Rate, qp (m³/h)
2.5
4.0
6.3
10
16
Connection
G3/4"
G1"
G1" 1/4"
G1" 1/2
G2"
Length (mm)
165
195
225
310
315
Flow Meter Fitting Size (Thread Length) (mm)
10
12
12
13 13
Flow Meter Connector (Connector Length) (mm)
43 50 58 58 59
Flow Meter Connector (Thread Length) (mm)
15
16 18 20 22
Flow Meter Connector
R1/2"
R3/4"
R 1"
R 1" 1/4
R 1" 1/2
TECHNICAL SPECIFICATION
Temperature
- Medium Range: 0.1......30 (T30)
- Ambient temperature: 5~55
- Storage temperature: -20~60
Metrological Class
Class 2, R=125:1
MaximumOperation Pressure
1.6 Mpa

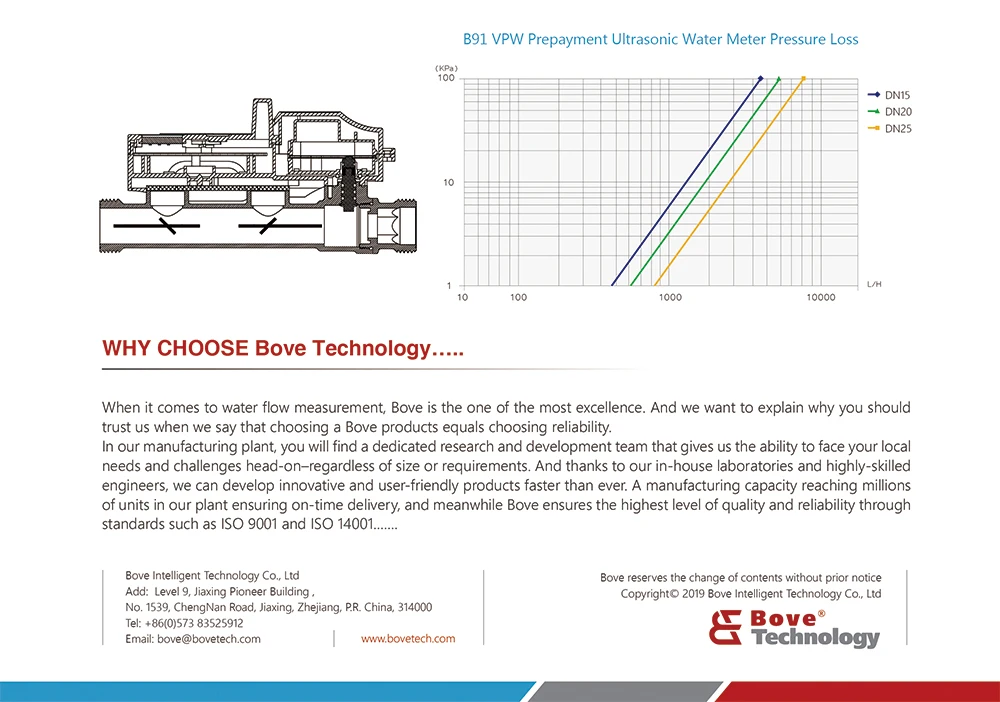

Pressure Loss
ΔP<63kPa
Pressure Stage
PN16
Stream Field Sensitivity
U10/D5, U5/D3 (optional)
ProtectionClass
IP68
Battery
2 sets of battery
Data Storage
24 months history data
Environmental Requirement
Environmental Class: E1, M1, B
Interface & Communication
- M-Bus
- Optical port
- Pulse output
- RS-485
- LPWAN (LoRa, NB-IoT, Sigfox)
Installation
Horizontal or Vertical
Display and Indication
- Unit: cubic meter (optional)
- LCD: 8-digit
Standard Compliance
- EN14154
