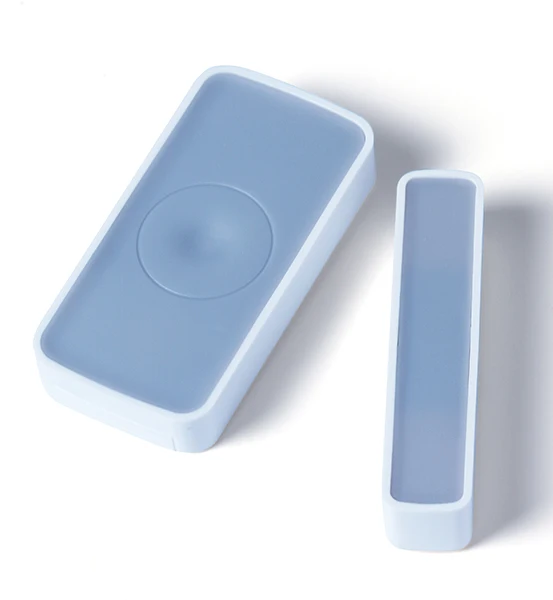

Zigbee zwave Door Window Sensor for Smart Home

Introduction:
This is the Zigbee Wireless Magnetic Switch Detector in Smart Homes. It adopts low consumption Zigbee wireless module, long battery use life. Detect door or windows status by closing or opening magnet part with detector. Designed with double reeds, it can be used in different direction open doors or windows, easy installation and flexible to use. It is suitable for residence, villa, houses, workshop, Mall, Warehouse, office building, Bank., etc for anti-burglar alarm.

Features:
door and window magnetic sensor for wireless home security
Low power consumption zigbee module
Standard ZIGBEE ZHA protocol adopted
Super low power consumption circuit design, makes a longer battery life
Double reed switch design, suitable for different door
Door open or closed recognizable
Low power indication and report
Smart and fashionable appearance design

APP control with Smart Phone
Standard ZIGBEE ZHA protocol adopted: HA1.2
Zigbee Door Sensor in Smart Homes
Specifications:
Working Voltage: 3V DC
Power Supply: CR2032
Battery Lifespan: 1 Year
Static Current: <6uA
Alarm Current: < 30mA
Sensitivity: 15mm
Alarm Indication: Red LED
Network Connect Indication: Green LED
Network: ZigBee Networking
Distance (line of sight in unobstructed environment): 100M
Sound Intensity: /
Working Temperature: -10-50
Working Humidity: 5% - 95%
Low Battery Indication: 2.4V
Installation: 3M Stickers
Dimension: 60*30*11.8mm
How to Use
Step 1 :
Remove battery insulation film to power on.

Step 2:
Open app and click "Add" button to enter networking mode.

Step 3:
Follow APPs prompts, press networking key for 2 seconds until see green LED blinking fast. It will prompt on APP when add device successfully. (Blue LED: networking key, Green LED: networking status indication)

Step 4:
Please install detector align with magnet part. The spacing between detector and magnet part should be less than 15mm (the magnet part can be installed at left or right of detector)

Step 5:

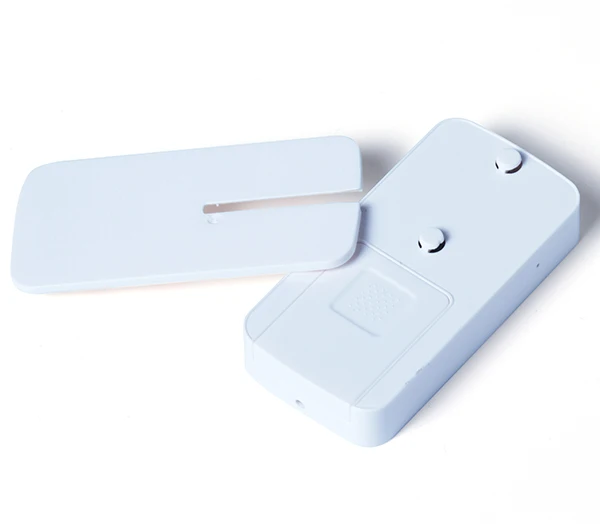

Tear off double tapes back film, fix detectors hang board and magnet part at suitable position. (As picture, detector should be installed on door frame or fixed position. magnet part can be installed at movable part)

Step 6:
Insert detector to fixed hang board.

APP Interface
Packaging & Shipping Color Box, Carton
