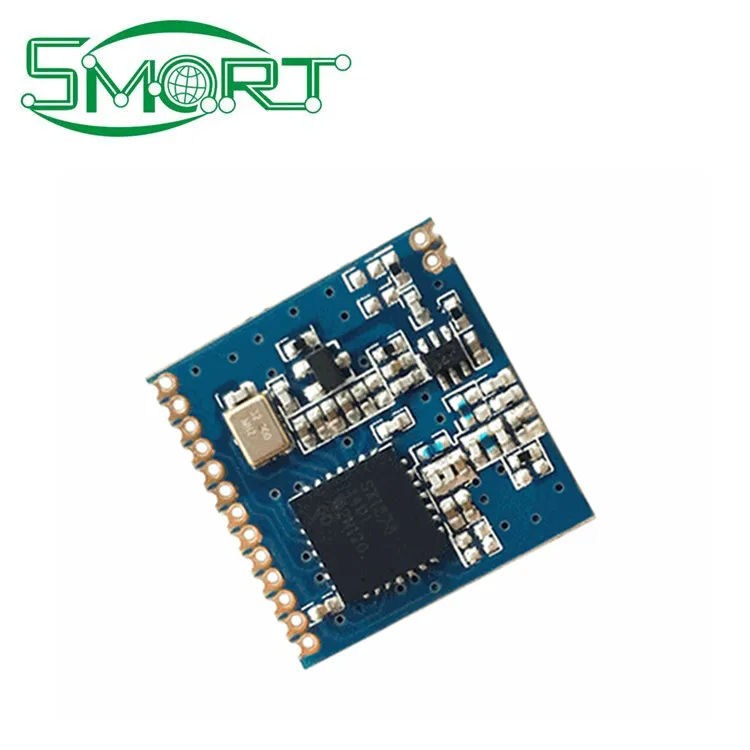

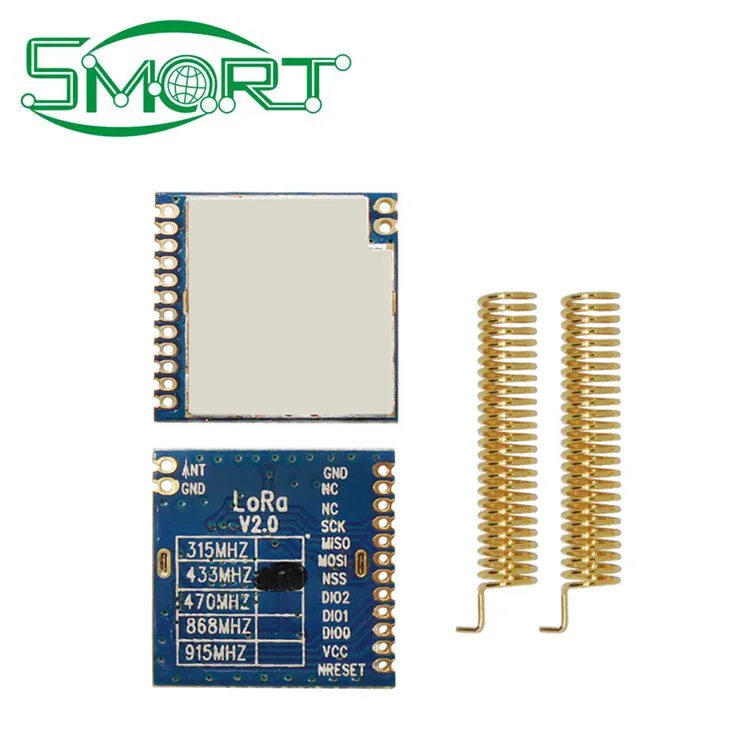

Smart Electronics SX1278 wireless transceiver module/LOra spread spectrum/SPI interface/small size 433 MHZ development board

IoT / LoRa

Smart Electronics Co.,ltdProduct Decription Smart Electronics SX1278 wireless transceiver module/LOra spread spectrum/SPI interface/small size 433 MHZ development board - ANKUX.COM

Smart Electronics SX1278 wireless transceiver module/LOra spread spectrum/SPI interface/small size 433 MHZ development board - ANKUX.COM

Product features:
FSK/GFKS technology, LoRa (remote) spread spectrum technology
Half duplex communication
Strong anti-jamming (56 db) channel rejection ratio:
High receiver sensitivity - 139 DBM. (32 m passive 10 PPM crystal)
The ISM multiband, do not need to apply for free use frequency.
More optional frequency, a variety of transmission rate. Can be applied in FDMA and frequency modulation technology.
Reset, low voltage intelligent monitoring, timing, low power consumption mode, hibernation mode
Low power consumption: accept current 10 to 12 ma
TX/RX 256 FIFO
RSSI channel detection function
Transport pattern: FIFO/direct model (recommended FIFO package mode)
Configuration: an AFC/listen/wake up function/low power/air carrier FEC error correction/AEC encryption
Extreme distance transmission empty can reach as far as 5 km
Small volume, size: 17 * 16.5 mm
