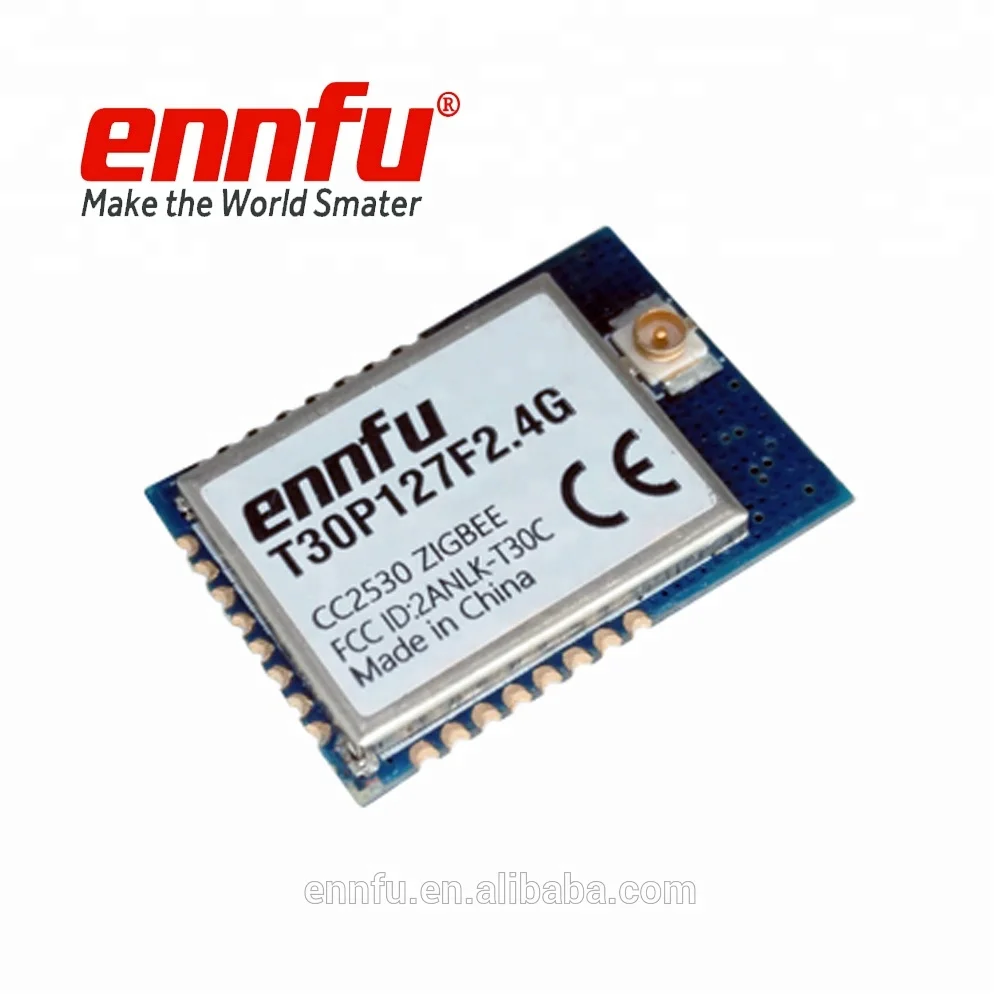

T30P127A2.4G Zigbee Module With Built-in Antenna
Smallest Size 20.15mm*12.95mm With Strong Through Wall Performance
Tiny volume integrated2.4GHz zigbee wireless module with built-in Antenan,which was based on TI CC2530 Zigbee RF chip technology, adopted standardIEEE 802.15.4 protocol.
TECHNICAL PARAMETERS:
No. Parameter Name Parameter Value Summary
1 RF IC CC2530 TI
2 Module Size 12.95mm*20.15mm*2.07mm Including Cermic Antenna
3 Module Weight 1.1mg
4 Working Frequency 2405~2480MHz 2.4GHz, IEEE 802.15.4 Protocol
5 Craft Immersion gold SMT,ROHS
6 Interface Mode 3*8*1.27mm Pitch SMD
7 Supply Power 2.0~3.6V DC Caution:Causing permanent damage to the module when the voltage is higher than 3.6V.
8 Communication Level +0.7V~+5V
9 Actual Test Communication Distance ≈150m
10 Air Ratio 250Kbps
11 Send Power 4dBm
12 Shut Current 1.2uA
13 Send Current 28mA@4dBm
14 Receive Current 27mA About 2.5mW
15 Communication Interface I/O MCU sleep,wireless shut,Voltage:3.3V
16 Send Length 1~103Bytes Power supply must exceed 100mA
17 Receive Length 1~103Bytes Average current
18 RSSI Support Support All I/O pins of MCU, please see IC manual for detail.
19 Antenna Interface Built-in Antenna Single data packet
20 Working Temperature -40~+85 Single data packet
21 Relative Humidity 10%~90% Please see IC manual.
22 Storage Temperature -40~+125 Antenna external
23 Receive Sensitivities 97dBm@250Kbps Industrial grade
ZIGBEE PCB MODULE LAYOUT: MIN MAX Units
A 12.95 12.95 mm
B 20.15 20.15 mm
C 2.07 2.07 mm
D 0.8 0.8 mm
E 1.27 1.27 mm
F 3.1 3.1 mm
G 2.3. 2.3 mm
PIN DEFINITION:
PIN Number PIN Name PIN Direction PIN Applications
1 GND 1~103Bytes Grounding,joint with the reference point of power.
2 VCC Support Supply power:2.0~3.6V.
3 P2.2 I/O Single -Chip IO
4 P2.1 I/O Single -Chip IO
5 P2.0 I/O Single -Chip IO
6 P1.7 I/O Single -Chip IO
7 P1.6 I/O Single -Chip IO
8 NC
Dangling
9 NC
Dangling
10 P1.5 I/O Single -Chip IO
11 P1.4 I/O Single -Chip IO
12 P1.3 I/O Single -Chip IO
13 P1.2 I/O Single -Chip IO
14 P1.1 I/O Single -Chip IO
15 P1.0 I/O Single -Chip IO
16 P0.7 I/O Single -Chip IO
17 P0.6 I/O Single -Chip IO
18 P0.5 I/O Single -Chip IO
19 P0.4 I/O Single -Chip IO
20 P0.3 I/O Single -Chip IO
21 P0.2 I/O Single -Chip IO
22 P0.1 I/O Single -Chip IO
23 P0.0 I/O Single -Chip IO
24 RSET Input Reset interface
