small size wireless wifi RTL8189ES 2.4G IEEE802.11 18dbm 150Mbps 120m SMD wifi module with SDIO PCB PIN interface

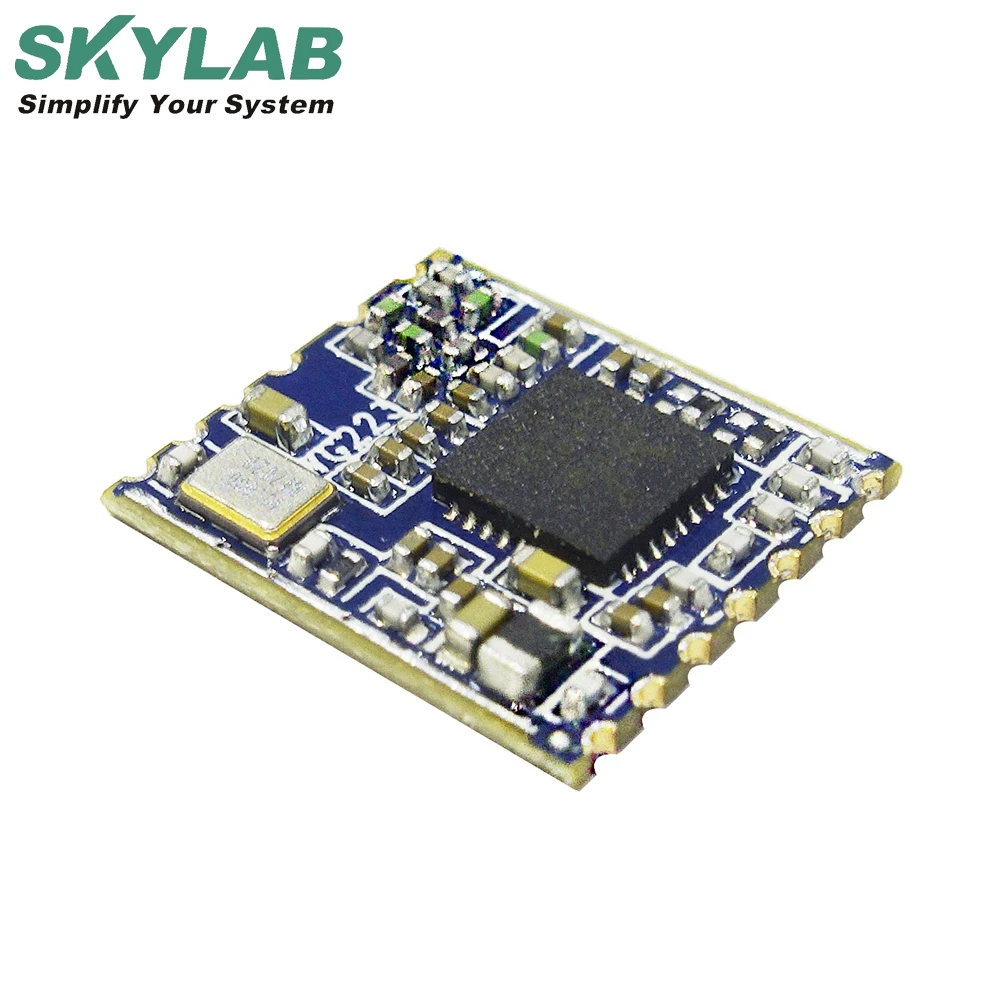

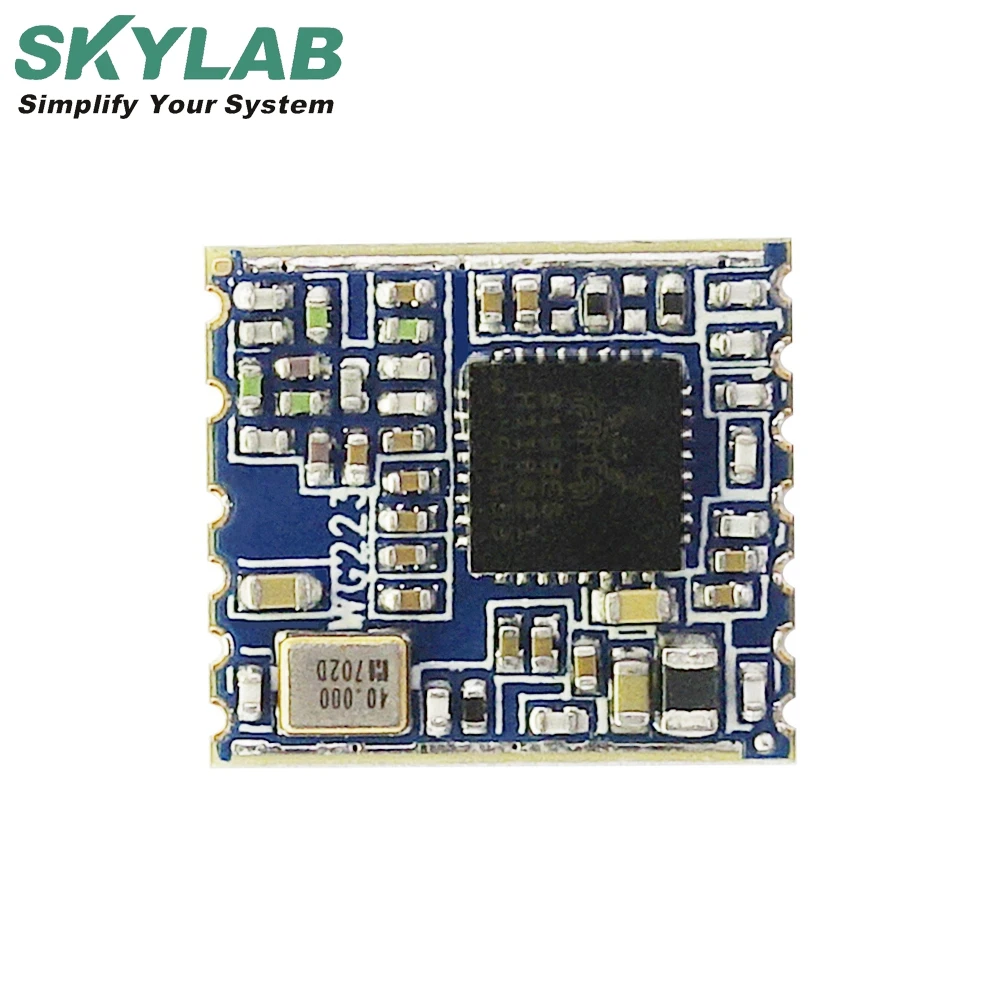

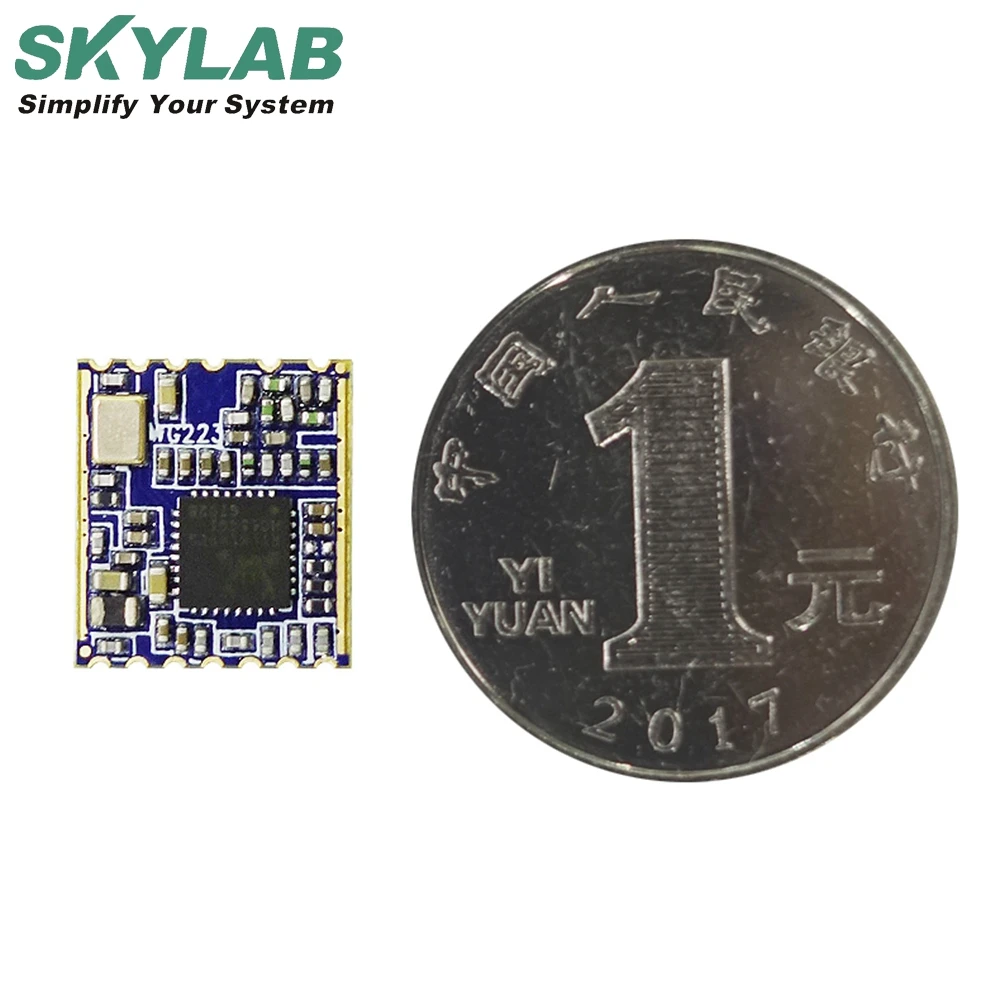

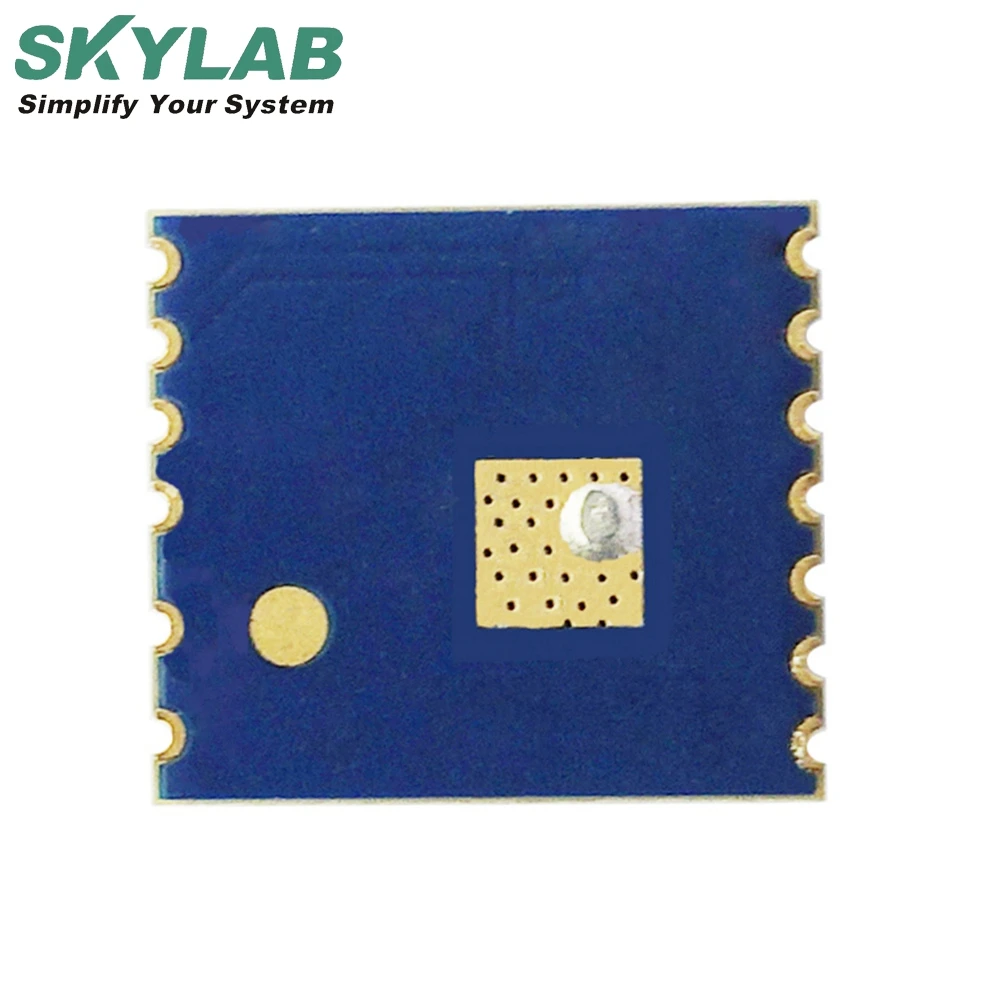

The WG223 module is a highly integrated SDIO interface (SDIO 1.1/ 2.0/ 3.0 compliant) 2.4G 802.11b/g/n 1T1R Wireless LAN (WLAN) network controller. It has a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single module. The WG223 provides a complete solution for a high throughput performance integrated wireless LAN device. The module requiring only an external 3.3V power supply. Below is the module top view.
Features802.11 b/g/n, up to 150 Mbps data rate.
1T1R WLAN for 2.4 GHz.
SDIO 1.1/2.0/3.0 interface for WLAN.
802.11e QoS enhancement(WMM).
802.11i(WPA, PWA2).

Host and Peripheral Interface
Complies with SDIO 1.1/ 2.0/ 3.0 for WLAN with clock rate up to 100MHz.
GSPI interface for configurable endian for WLAN.
GPIO (8 pins).
One configurable LED pins.
Standards SupportedIEEE 802.11b/g/n compatible WLAN.
IEEE 802.11e QoS Enhancement (WMM).
802.11i (WPA, WPA2), Open, shared key, and pair-wise key authentication services.
ApplicationSTB
Smart Home
Wi-Fi gateway
Consumer electronical devices

Wireless FeaturesWireless StandardsIEEE 802.11b/g/n/Frequency Range2412GHz---2484MHzData RatesIEEE 802.11b : 1,2,5.5,11MbpsIEEE 802.11g : 6,9,12,18,24,36,48,54MbpsIEEE 802.11n : MCS0--MCS7 @ HT20 /2.4GHz bandMCS0--MCS7 @ HT40 /2.4GHz bandReceiver SensitivityHT40 MCS7 : -65dBm@10% PER(MCS7) /2.4GHz bandHT20 MCS7 : -66dBm@10% PER(MCS7) /2.4GHz band54M: -71dBm@10% PER11M: -83dBm@ 8% PERModulation TechniqueDSSS (DBPSK, DQPSK, CCK)OFDM (BPSK, QPSK, 16-QAM, 64-QAM)Wireless SecurityWPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPITransmit PowerIEEE 802.11n: 14±2dBm @HT20/40 MCS7IEEE 802.11g: 16±2dBm @54MbpsIEEE 802.11b: 18±2dBm @11MbpsOS supportedWindows XP/Win7/Linux/Android
EnvironmentOperating Temperature: -20鈩儈70鈩?/SPAN>Storage Temperature: -55鈩儈125鈩?/SPAN>Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

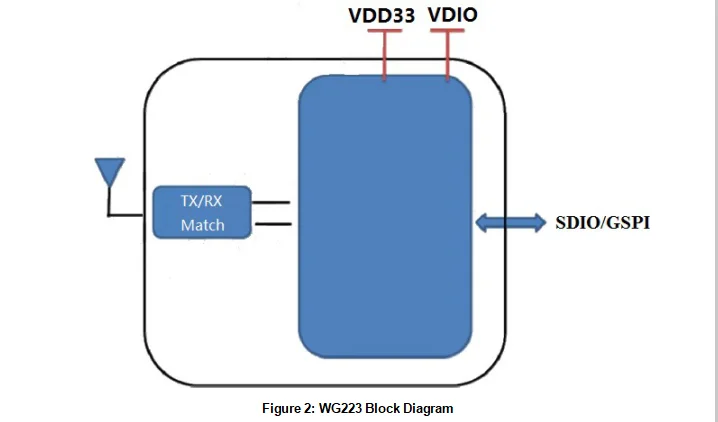

Applications Block Diagram

More Customer Choice


Test & Certificates
