SKYLAB 802.11b/g/n 3.3V WiFi AP Router MT7628N WiFi Module for Smart Lighting
The SKW92A module includes an 802.11n MAC and baseband, a 2.4GHz radio and FEM, a 580MHz MIPS CPU, a 5-port 10/100 fast Ethernet switch. Solution for low power, low-cost, and highly integrated AP router and consumer electronic devices, the module requires only an external 3.3V power supply. It supports 802.11n operating up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates. The module supports bridge mode and AP Client mode and Gateway mode. The high performance Module can process advanced applications effortlessly, such as routing, security and VoIP. It also includes a selection of interface to support a variety of applications, such as a USB port for accessing external storage and 3G/TLE modem. Especially in the IOT, a wide range of applications.
SKYLAB 802.11b/g/n 3.3V WiFi AP Router MT7628N WiFi Module for Smart Lighting - ANKUX.COM

SKYLAB 802.11b/g/n 3.3V WiFi AP Router MT7628N WiFi Module for Smart Lighting - ANKUX.COM

Features
1.Compliant to IEEE 802.11b/g/n
2.2T2R mode with support for a 300Mbps PHY data rate
3.DDR2 memory up to 512Mb
4.Flash memory up to 128Mb
5.4 LAN ports and 1 WAN port
6.Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera
7.Support SD card
8.Support interface: I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO
9.Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
10.Support AP/Client/Router mode
11.RoHS compliance meets environment-friendly requirement
12. FCC/CE certificates
13.40.5mm(L) x 25mm(W) x 3.0mm(H) dimension
SKYLAB 802.11b/g/n 3.3V WiFi AP Router MT7628N WiFi Module for Smart Lighting - ANKUX.COM

Hardware FeaturesModelSKW92AAntenna TypeIPEXChipset solutionMT7628NVoltage3.3V±5%Dimension(L×W×H)40.5mm*25.0mm*3.0mmWireless FeaturesWireless StandardsIEEE 802.11b/g/nFrequency Range2412GHz---24884MHzData RatesIEEE 802.11b: 1,2,5.5,11Mbps IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps IEEE 802.11n: MCS0--MCS7 @ HT20 MCS0--MCS7 @ HT40 Receiver SensitivityHT40 MCS7: -70dBm@10% PER(MCS7)HT20 MCS7: -73dBm@10% PER(MCS7) 54M: -77dBm@10% PER 11M: -89dBm@ 8% PER Modulation TechniqueDSSS (DBPSK, DQPSK, CCK)OFDM (BPSK, QPSK, 16-QAM, 64-QAM)Wireless SecurityWPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPITransmit PowerIEEE 802.11n: 16dBm @HT20/40 MCS7IEEE 802.11g: 16dBm @54MHzIEEE 802.11b: 18dBm @11MHzWork ModeBridge/Gateway/AP ClientOthersCertificationRoHSEnvironmentOperating Temperature: -20鈩儈55鈩?/SPAN>Storage Temperature: -40鈩儈125鈩?/SPAN>Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensingApplications1.USB WiFi Camera 2. IOT (internet of things) 3.WiFi AP 4.3G/4G WiFi Router
5. WiFi Repeater 6.Building Automation 7.Home Automation 8. Smart Home Gateway
9.Industry Control
SKYLAB 802.11b/g/n 3.3V WiFi AP Router MT7628N WiFi Module for Smart Lighting - ANKUX.COM

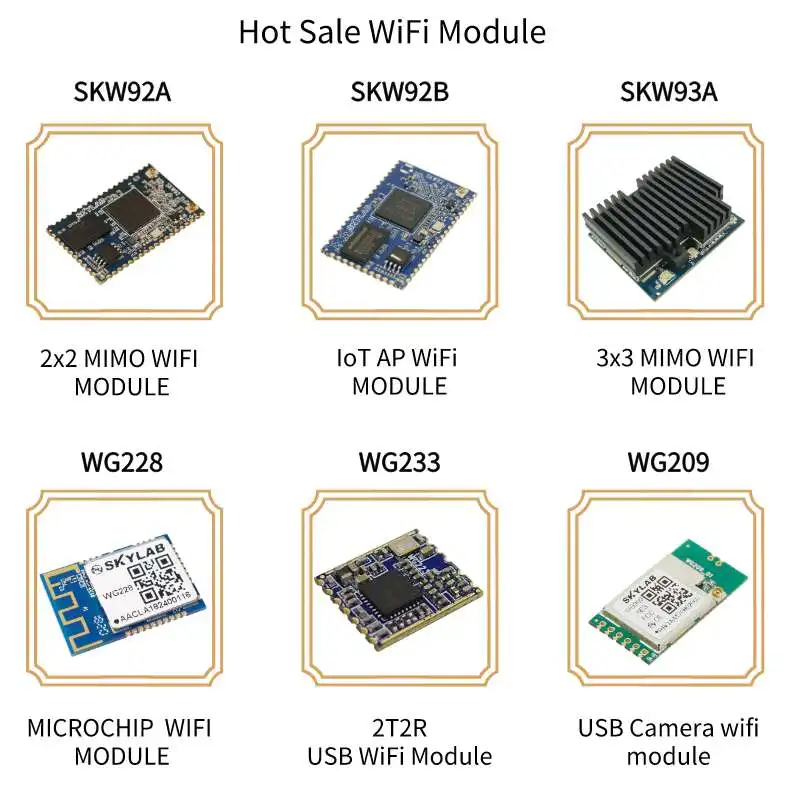

Hot sale product
