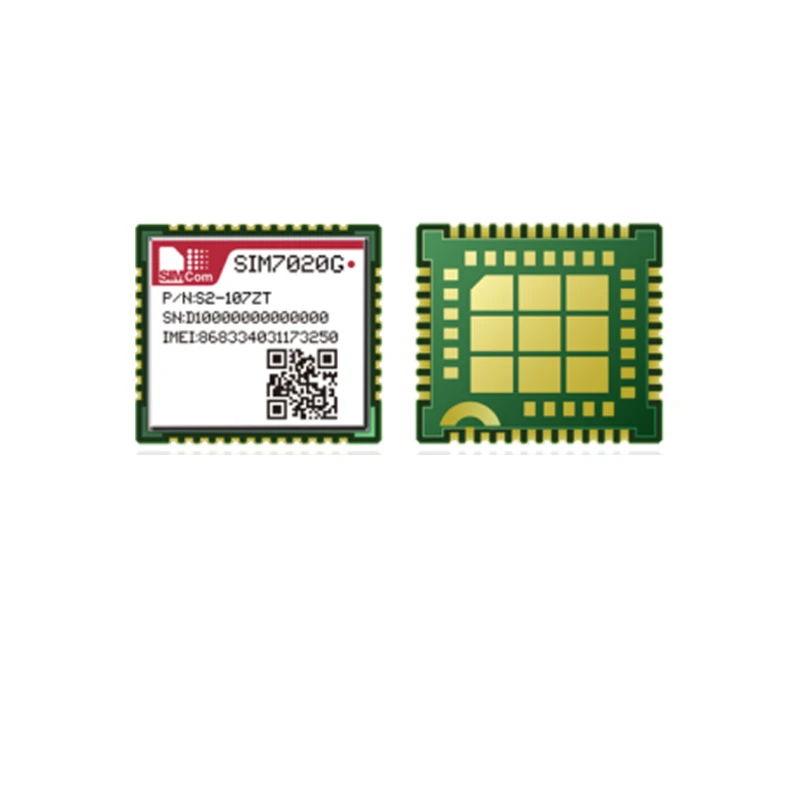

Simcom SIM7020G LPWA NB-IoT Module
NB-IoT Module
The SIM7020G is Global-Band NB-IoT module solution ina SMT type .
It has strong extension capability with rich interfaces including UART, SPI,I2C, GPIO etc. The module provides much flexibility and ease of integration for customers application.
The package (LCC part) of SIM7020G is compatible with SIM800C (2G module with LCC package). This also maximizes the investments of customers, and enables a short time-to-market.
It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..
General Features Support Bands:
B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/
B20/B25/B26/B28/B66/B70/B71
Control Via AT Commands
Supply voltage range: 2.1V-3.6V
Operation temperature: -40 to +85
Dimensions: 17.6 X 15.7 X 2.3mm
Weight: TBD DataUplink: 150Kbps Downlink:100Kbps SMSText and PDU mode ConsumptionPSM: 3.5 uA
sleep: 0.4mA
Idle: 5.6mA
eDRX: 30uA (eDRX=655.36s) Other Features
TCP/UDP
HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING
LWM2M/COAP/MQTT
Aira Cloud
Firmware update via UART
FOTA
EAT* InterfacesUART
SIM card (1.8V/3V)
SPI
I2C
GPIO
ADC
Netlight
PSM_EINT
Reset
Powerkey CertificationsCE/FCC
RoHS / REACH
